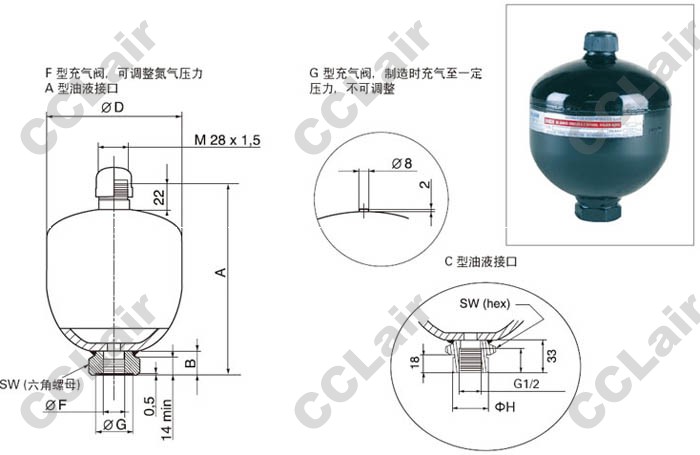

点击图片查看原图
ELM2.8-250/90/AF,ELM2.8-350/90/AF,ELM2.8-350/90/CF,ELM3.5-250/90/AF,ELM3.5-350/90/AF,
ELM3.5-350/90/CF,
|
订货代号
|
ELM2.8-250/90/AF | ELM2.8-350/90/AF | ELM2.8-350/90/CF | ELM3.5-250/90/AF | ELM3.5-350/90/AF | ELM3.5-350/90/CF | |||
|
接口形式
|
AF | AF | CF | AF | AF | CF | |||
|
容积V0/L
|
2.8 | 2.8 | 2.8 | 3.5 | 3.5 | 3.5 | |||
|
最高工作压力/bar
|
250 | 350 | 350 | 250 | 350 | 350 | |||
|
最高预充压力/bar
|
130 | 130 | 130 | 130 | 130 | 130 | |||
|
最大压缩比P2/P0
|
6 | 6 | 6 | 4 | 4 | 4 | |||
|
最大压力变化值/bar
|
140 | 200 | 200 | 140 | 200 | 200 | |||
|
重量/kg
|
10 | 14.3 | 14.5 | 11 | 16 | 16.5 | |||
|
A
|
268 | 264 | 285 | 307 | 304 | 325 | |||
|
B
|
21 | 21 | 21 | 21 | 21 | 21 | |||
|
SW
|
41 | 55 | 55 | 41 | 55 | 55 | |||
|
D
|
174 | 180 | 180 | 174 | 180 | 180 | |||
|
G
|
34 | 34 | - | 33 | 34 | - | |||
|
G3/4 | G3/4 | G3/4 | G3/4 | G3/4 | G3/4 | |||
| - | - | M45*1.5 | - | - | M45*1.5 | ||||
|
卡箍型号
|
E174 | E180 | E180 | E174 | E180 | E180 | |||
|
锁紧螺母型号
|
- | - | M45 | - | - | M45 |
