HTZS1DF02N1A06,HTZS1NF02V1BC3,HTZS1DF02E1C05,HTZS1DF02E1D16,零压差电磁阀_电磁阀_控制元件_气动器材气动阀_了解产品

HTZS1DF02N1A06,HTZS1NF02V1BC3,HTZS1DF02E1C05,HTZS1DF02E1D16,零压差电磁阀

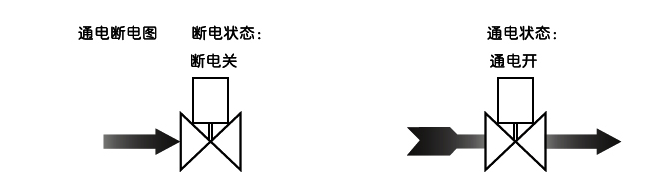

二位二通通常闭型电磁场阀，断电关闭，通电打开阀体材质为铜，SS316不锈钢最大耐16kgf/cm²环境温度，0℃～65℃产品为系列化生产，体积小，流量大，适用范围广按阀上所标流向箭头，可任意安装；为增强使用寿命，最好线圈向上，水平安装

电压：AC220V/230V/240V/110V/24V 50/60HZ DC24V/12V +10%到-10%允许波动

DN25以下电磁阀可选配德国NASS线圈

常规备货：AC220V/230V/240V 50/60HZ、DC24V膜片、密封件，可采用NBR、VITON、EPDM等多种，以适用不同流体的开关控制。

型号规格：

接管口径	流量通径mm	CV值	线圈	功率		外形尺寸长X宽X高 A x B x H	重量KG	订货型号以下表中电压为220CAC 50/60HZ
			F级	VA	W
			配置	AC220V	DC24V
1/8^''	2.5	0.23	N	13	8.5	41x27x67	0.35	HTZS1NF02N1AC3
	2.5	0.23	N	13	8.5	41x27x67	0.35	HTZS1NF02E1AC3
	2.5	0.23	N	13	8.5	41x27x67	0.35	HTZS1NF02V1AC3
	3.0	0.3	N	13	8.5	41x27x67	0.35	HTZS1NF02N1A03
	3.0	0.3	N	13	8.5	41x27x67	0.35	HTZS1NF02E1A03
	3.0	0.3	N	13	8.5	41x27x67	0.35	HTZS1NF02V1A03
	5.0	0.65	D	22	13	44x28x80	0.36	HTZS1DF02N1A05
	5.0	0.65	D	22	13	44x28x80	0.36	HTZS1DF02E1A05
	5.0	0.65	D	22	13	44x28x80	0.36	HTZS1DF02V1A05
	6.0	0.9	D	22	13	44x28x80	0.36	HTZS1DF02N1A06
	6.0	0.9	D	22	13	44x28x80	0.36	HTZS1DF02E1A06
	6.0	0.9	D	22	13	44x28x80	0.36	HTZS1DF02V1A06
	9.0	1.0	D	33	32	44x28x78	0.36	HTZS1DF02N1A09
	9.0	1.0	D	33	32	44x28x78	0.36	HTZS1DF02E1A09
	9.0	1.0	D	33	32	44x28x78	0.36	HTZS1DF02V1A09
1/4^''	2.5	0.23	N	13	8.5	41x27x67	0.34	HTZS1NF02N1BC3
	2.5	0.23	N	13	8.5	41x27x67	0.34	HTZS1NF02E1BC3
	2.5	0.23	N	13	8.5	41x27x67	0.34	HTZS1NF02V1BC3
	3.0	0.3	N	13	8.5	41x27x67	0.34	HTZS1NF02N1B03
	3.0	0.3	N	13	8.5	41x27x67	0.34	HTZS1NF02E1B03
	3.0	0.3	N	13	8.5	41x27x67	0.34	HTZS1NF02V1B03
	5.0	0.65	D	22	13	44x28x80	0.35	HTZS1DF02N1B05
	5.0	0.65	D	22	13	44x28x80	0.35	HTZS1DF02E1B05
	5.0	0.65	D	22	13	44x28x80	0.35	HTZS1DF02V1B05
	6.0	0.9	D	22	13	44x28x80	0.35	HTZS1DF02N1B06
	6.0	0.9	D	22	13	44x28x80	0.35	HTZS1DF02E1B06
	6.0	0.9	D	22	13	44x28x80	0.35	HTZS1DF02V1B06
	9.0	1.1	D	32	32	44x28x78	0.35	HTZS1DF02N1B09
	9.0	1.1	D	32	32	44x28x78	0.35	HTZS1DF02E1B09
	9.0	1.1	D	32	32	44x28x78	0.35	HTZS1DF02V1B09
3/8^''	4.0	0.6	D	33	32	52.5x32.5x83	0.6	HTZS1DF02N1C04
	4.0	0.6	D	33	32	52.5x32.5x83	0.6	HTZS1DF02E1C04
	4.0	0.6	D	33	32	52.5x32.5x83	0.6	HTZS1DF02V1C04
	5.0	0.65	D	33	32	53x27x87	0.5	HTZS1DF02N1C05
	5.0	0.65	D	33	32	53x27x87	0.5	HTZS1DF02E1C05
	5.0	0.65	D	33	32	53x27x87	0.5	HTZS1DF02V1C05
	6.0	0.9	D	33	32	53x27x87	0.5	HTZS1DF02N1C06
	6.0	0.9	D	33	32	53x27x87	0.5	HTZS1DF02E1C06
	6.0	0.9	D	33	32	53x27x87	0.5	HTZS1DF02V1C06
	9.0	1.7	D	33	32	53x27x87	0.5	HTZS1DF02N1C09
	9.0	1.7	D	33	32	53x27x87	0.5	HTZS1DF02E1C09
	9.0	1.7	D	33	32	53x27x87	0.5	HTZS1DF02V1C09
	16	4.8	D	33	32	69x7x06	0.9	HTZS1DF02N1C16
	16	4.8	D	33	32	69x7x06	0.9	HTZS1DF02E1C16
	16	4.8	D	33	32	69x7x06	0.9	HTZS1DF02V1C16
	16	4.8	D	33	32	69x7x06	0.9	HTZS1DF02G1C16
1/2^''	5.0	0.65	D	33	32	53x7x7	0.49	HTZS1DF02N1D05
	5.0	0.65	D	33	32	53x7x7	0.49	HTZS1DF02E1D05
	5.0	0.65	D	33	32	53x7x7	0.49	HTZS1DF02V1D05
	6.0	0.9	D	33	32	53x7x7	0.5	HTZS1DF02N1D06
	6.0	0.9	D	33	32	53x7x7	0.5	HTZS1DF02E1D06
	6.0	0.9	D	33	32	53x7x7	0.5	HTZS1DF02V1D06
	9.0	1.7	D	33	32	53x7x7	0.5	HTZS1DF02N1D09
	9.0	1.7	D	33	32	53x7x7	0.5	HTZS1DF02E1D09
	9.0	1.7	D	33	32	53x7x7	0.5	HTZS1DF02V1D09
	16	4.8	D	33	32	69x57x106	0.9	HTZS1DF02N1D16
	16	4.8	D	33	32	69x57x106	0.9	HTZS1DF02E1D16
	16	4.8	D	33	32	69x57x106	0.9	HTZS1DF02V1D16
	16	4.8	D	33	32	69x57x106	0.9	HTZS1DF02G1D16
3/4^''	20	7.6	D	33	32	73x57x114	1.08	HTZS1DF02N1E20
	20	7.6	D	33	32	73x57x114	1.08	HTZS1DF02E1E20
	20	7.6	D	33	32	73x57x114	1.08	HTZS1DF02V1E20
	20	7.6	D	33	32	73x57x114	1.08	HTZS1DF02G1E20
1^''	25	12	D	33	32	99x77x121	1.4	HTZS1DF02N1G25
	25	12	D	33	32	99x77x121	1.4	HTZS1DF02E1G25
	25	12	D	33	32	99x77x121	1.4	HTZS1DF02V1G25
	25	12	D	33	32	99x77x121	1.4	HTZS1DF02G1G25
11/4^''	32	24	D	70	40	112x86.5x150	2.5	HTZS1DF02N1H32
	32	24	D	70	40	112x86.5x50	2.5	HTZS1DF02E1H32
	32	24	D	70	40	112x86.5x150	2.5	HTZS1DF02V1H32
11/2^''	40	29	D	70	40	123x94x160	2.9	HTZS1DF02N1J40
	40	29	D	70	40	123x94x160	2.9	HTZS1DF02E1J40
	40	29	D	70	40	123x94x160	2.9	HTZS1DF02V1J40
2^''	50	48	D	70	40	168x123x83	5.2	HTZS1DF02N1K50
	50	48	D	70	40	168x123x83	5.2	HTZS1DF02E1K50
	50	48	D	70	40	168x123x83	5.2	HTZS1DF02V1K50
法兰 4 孔连接	25	12	D	33	32	140x115x160	2.9	HTZS1DF02N4K50
	25	12	D	33	32	140x115x160	2.9	HTZS1DF02E4K50
	25	12	D	33	32	140x115x160	2.9	HTZS1DF02V4K50
	32	24	D	70	40	152x135x215	5.1	HTZS1DF02N4F25
	32	24	D	70	40	152x135x215	5.1	HTZS1DF02E4F25
	32	24	D	70	40	152x135x215	5.1	HTZS1DF02V4F25
	40	29	D	70	40	152x145x245	6.1	HTZS1DF02N4F32
	40	29	D	70	40	152x145x245	6.1	HTZS1DF02E4F32
	40	29	D	70	40	152x145x245	6.1	HTZS1DF02V4F32
	50	48	D	70	40	195x160x250	8.2	HTZS1DF02N4F50
	50	48	D	70	40	195x160x250	8.2	HTZS1DF02E4F50
	50	48	D	70	40	195x160x250	8.2	HTZS1DF02V4F50
