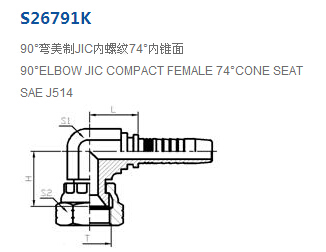

S26791K-04-04,S26791K-05-05,S26791K-06-04,S26791K-10-08,S26791K-12-12,S26791K-16-16,扣压式软管接头
产品技术参数：
| 代号 | 螺纹 T | 胶管 HOSE BORE | 尺寸 DIMENSIONS | ||||
|---|---|---|---|---|---|---|---|
| PART NO. | THREAD T | 公称内径 DN | 标号 DASH | L | H | S1 | S2 |
| S26791K-04-04 | 7/16＂X20 | 6 | 04 | 17.5 | 18 | 11 | 14 |
| S26791K-05-05 | 1/2＂X20 | 8 | 05 | 19.5 | 18 | 11 | 17 |
| S26791K-06-04 | 9/16＂X18 | 6 | 04 | 19 | 21 | 14 | 19 |
| S26791K-06-06 | 9/16＂X18 | 10 | 06 | 20 | 21 | 16 | 19 |
| S26791K-08-06 | 3/4＂X16 | 10 | 06 | 23 | 25 | 19 | 24 |
| S26791K-08-08 | 3/4＂X16 | 13 | 08 | 23.5 | 25 | 22 | 24 |
| S26791K-10-08 | 7/8＂X16 | 13 | 08 | 23.5 | 27.5 | 22 | 27 |
| S26791K-10-10 | 7/8＂X14 | 16 | 10 | 25 | 27.5 | 22 | 27 |
| S26791K-12-12 | 1.1/16＂X12 | 19 | 12 | 27.5 | 30 | 27 | 32 |
| S26791K-16-16 | 1.5/16＂X12 | 25 | 16 | 43 | 34.3 | 33 | 41 |
