S20441-12-04W,S20441-22-08T,S20441-30-10T,S20441-45-16T,S20441-52-24T,扣压式软管接头

点击图片查看原图

型号：	S20441-12-04W,S20441-22-08T,S20441-30-10T,S20441-45-16T,S20441-52-24T
PDF下载：	如需产品详细说明请与销售客服联系
浏览次数：	444

公司基本资料信息

联系人销售员1622(女士)
电话13861877712
地区江苏-无锡市
地址无锡市会北路28-135

详细说明

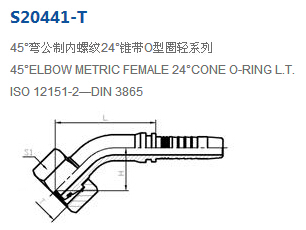

S20441-12-04W,S20441-22-08T,S20441-30-10T,S20441-45-16T,S20441-52-24T,扣压式软管接头

产品技术参数：

代号	螺纹 T	软管 HOSE BORE		管子外径	尺寸 DIMENSIONS
PART NO.	THREAD T	公称内径 DN	标号 DASH	TUBE O.D	L	H	S1
S20441-12-04W	M12X1.5	6	04	6	44.5	20.7	14
S20441-14-04T	M14X1.5	6	04	8	41.7	17.9	17
S20441-14-05W	M14X1.5	8	05	8	45	21.4	17
S20441-14-06W	M14X1.5	10	06	8	49.6	23.7	17
S20441-16-04T	M16X1.5	6	04	10	39	19	19
S20441-16-05T	M16X1.5	8	05	10	42	18	19
S20441-16-06W	M16X1.5	10	06	10	50	24	19
S20441-18-05T	M18X1.5	8	05	12	46	22	22
S20441-18-06T	M18X1.5	10	06	12	47.5	21.5	22
S20441-18-08W	M18X1.5	13	08	12	59	27.8	22
S20441-22-08T	M22X1.5	13	08	15	56	24.6	27
S20441-22-10W	M22X1.5	16	10	15	69.4	30.2	27
S20441-26-10T	M26X1.5	16	10	18	68	28.8	32
S20441-26-12W	M26X1.5	19	12	18	76	33.4	32
S20441-30-10T	M30X2	16	10	22	68	28.5	36
S20441-30-12T	M30X2	19	12	22	72.8	30.2	36
S20441-30-16W	M30X2	25	16	22	89.5	36.5	36
S20441-36-12T	M36X2	19	12	28	74.3	31.6	41
S20441-36-14T	M36X2	22	14	28	78.5	33.3	41
S20441-36-16T	M36X2	25	16	28	83.6	34.2	41
S20441-36-20W	M36X2	32	20	28	102	41.5	41
S20441-45-16T	M45X2	25	16	35	84	34.6	50
S20441-45-20T	M45X2	32	20	35	99.8	39.1	50
S20441-45-24W	M45X2	38	24	35	120	48.9	50
S20441-52-20T	M52X2	32	20	42	100.9	40.1	60
S20441-52-24T	M52X2	38	24	42	115	45.3	60
S20441-52-32W	M52X2	51	32	42	137.6	57.6	60

注：1、表中代号用于编织软管。 2、如需用于缠绕软管代号改为S20442-XX-XX。 S20441-14-04T,S20441-14-05W,S20441-14-06W,S20441-16-04T,S20441-16-05T,S20441-16-06W,
S20441-18-05T,S20441-18-06T,S20441-18-08W,S20441-22-10W,S20441-26-10T,S20441-26-12W,
S20441-30-12T,S20441-30-16W,S20441-36-12T,S20441-36-14T,S20441-36-16T,S20441-36-20W,
S20441-45-20T,S20441-45-24W,S20441-52-20T,S20441-52-32W,
