S12611A-06-05RW,S12611A-08-06RW,S12611A-12-10RW,S12611A-20-16RW,S12611A-32-32RW,一体式软管接头

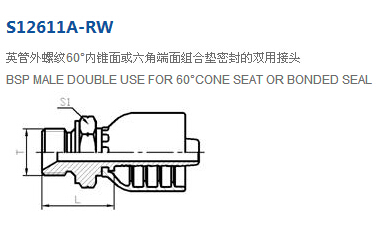

产品技术参数：
| 代 号 | 螺纹 T | 软 管 HOSE BORE | 尺寸 DIMENSIONS | ||
|---|---|---|---|---|---|
| PART NO. | THREAD T | 公称内径 DN | 标号 DASH | L | S1 |
| S12611A-04-04RW | G1/4＂X19 | 6 | 04 | 25.5 | 19 |
| S12611A-06-05RW | G3/8＂X19 | 8 | 05 | 26.5 | 22 |
| S12611A-06-06RW | G3/8＂X19 | 10 | 06 | 26.5 | 22 |
| S12611A-06-08RW | G3/8＂X19 | 13 | 08 | 28 | 22 |
| S12611A-08-06RW | G1/2＂X14 | 10 | 06 | 32 | 27 |
| S12611A-08-08RW | G1/2＂X14 | 13 | 08 | 33 | 27 |
| S12611A-08-10RW | G1/2＂X14 | 16 | 10 | 34 | 27 |
| S12611A-10-08RW | G5/8＂X14 | 13 | 08 | 36 | 30 |
| S12611A-10-10RW | G5/8＂X14 | 16 | 10 | 37 | 30 |
| S12611A-12-08RW | G3/4＂X14 | 13 | 08 | 35.5 | 32 |
| S12611A-12-10RW | G3/4＂X14 | 16 | 10 | 37 | 32 |
| S12611A-12-12RW | G3/4＂X14 | 19 | 12 | 37 | 32 |
| S12611A-16-12RW | G1＂X14 | 19 | 12 | 41 | 41 |
| S12611A-16-16RW | G1＂X14 | 25 | 16 | 42 | 41 |
| S12611A-20-16RW | G1.1/4＂X11 | 25 | 16 | 45 | 50 |
| S12611A-20-20RW | G1.1/4＂X11 | 32 | 20 | 45 | 50 |
| S12611A-24-20RW | G1.1/2＂X11 | 32 | 20 | 49 | 55 |
| S12611A-24-24RW | G1.1/2＂X11 | 38 | 24 | 49 | 55 |
| S12611A-32-32RW | G2＂X11 | 51 | 32 | 54.5 | 70 |
