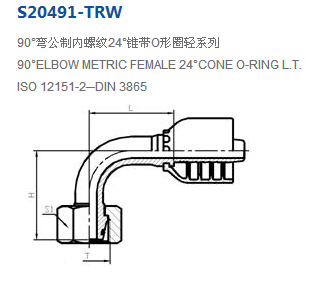

S20491-14-04TRW,S20491-22-08TRW,S20491-30-12TRW,S20491-45-16TRW,S20491-52-24TRW,一体式软管接头
产品技术参数：
| 代 号 | 螺纹 T | 软 管 HOSE BORE | 管子直径 | 尺寸 DIMENSIONS | |||
|---|---|---|---|---|---|---|---|
| PART NO. | THREAD T | 公称内径 DN | 标号 DASH | TUBE O. E. | L | H | S1 |
| S20491-14-04TRW | M14X1.5 | 6 | 04 | 8 | 32 | 33.5 | 17 |
| S20491-16-04TRW | M16X1.5 | 6 | 04 | 10 | 27.5 | 29 | 19 |
| S20491-16-05TRW | M16X1.5 | 8 | 05 | 10 | 32.5 | 34.5 | 19 |
| S20491-18-05TRW | M18X1.5 | 8 | 05 | 12 | 33 | 40 | 22 |
| S20491-18-06TRW | M18X1.5 | 10 | 06 | 12 | 36.5 | 41 | 22 |
| S20491-22-08TRW | M22X1.5 | 13 | 08 | 15 | 44.5 | 48 | 27 |
| S20491-26-08TRW | M26X1.5 | 13 | 08 | 18 | 43.5 | 52 | 32 |
| S20491-26-10TRW | M26X1.5 | 16 | 10 | 18 | 55 | 56.5 | 32 |
| S20491-30-10TRW | M30X2 | 16 | 10 | 22 | 55 | 56 | 36 |
| S20491-30-12TRW | M30X2 | 19 | 12 | 22 | 62 | 62 | 36 |
| S20491-36-12TRW | M36X2 | 19 | 12 | 28 | 62 | 64 | 41 |
| S20491-36-16TRW | M36X2 | 25 | 16 | 28 | 74 | 74 | 41 |
| S20491-45-16TRW | M45X2 | 25 | 16 | 35 | 74 | 73.5 | 50 |
| S20491-45-20TRW | M45X2 | 32 | 20 | 35 | 91.5 | 86 | 50 |
| S20491-52-20TRW | M52X2 | 32 | 20 | 42 | 91.5 | 87.5 | 60 |
| S20491-52-24TRW | M52X2 | 38 | 24 | 42 | 109 | 101 | 60 |
