S87341-08-08,S87341-12-08,S87341-16-12,S87341-20-20,S87341-32-24,S87341-24-24,扣压式软管接头

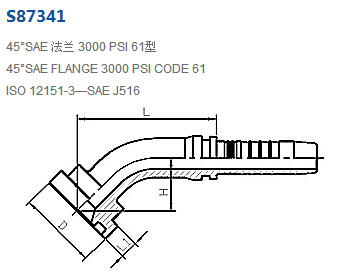

产品技术参数：
| 代 号 | 法兰型号 | 软 管 | 尺寸 | ||||
|---|---|---|---|---|---|---|---|
| PART NO. | FLANGE SIZE | 公称内径 DN | 标号 DASH | L | D | L1 | H |
| S87341-08-08 | 1/2＂ | 13 | 08 | 55.5 | 30.2 | 6.73 | 23 |
| S87341-12-08 | 3/4＂ | 13 | 08 | 59 | 38.1 | 6.73 | 24 |
| S87341-12-10 | 3/4＂ | 16 | 10 | 64.5 | 38.1 | 6.73 | 25 |
| S87341-12-12 | 3/4＂ | 19 | 12 | 71 | 38.1 | 6.73 | 28 |
| S87341-12-16 | 3/4＂ | 25 | 16 | 82.5 | 38.1 | 6.73 | 29.5 |
| S87341-16-12 | 1＂ | 19 | 12 | 71 | 44.4 | 8 | 28 |
| S87341-16-16 | 1＂ | 25 | 16 | 82 | 44.4 | 8 | 29.4 |
| S87341-16-20 | 1＂ | 32 | 20 | 94.5 | 44.4 | 8 | 33.8 |
| S87341-20-16 | 1.1/4＂ | 25 | 16 | 82 | 50.8 | 8 | 31 |
| S87341-20-20 | 1.1/4＂ | 32 | 20 | 94.5 | 50.8 | 8 | 33.8 |
| S87341-24-20 | 1.1/2＂ | 32 | 20 | 94.5 | 60.3 | 8 | 33.8 |
| S87341-24-24 | 1.1/2＂ | 38 | 24 | 110 | 60.3 | 8 | 40.4 |
| S87341-32-24 | 2＂ | 38 | 24 | 110 | 71.4 | 9.53 | 40.4 |
| S87341-32-32 | 2＂ | 51 | 32 | 127 | 71.4 | 9.53 | 46.3 |
注：1、表中代号用于编织软管。 2、如需用于缠绕软管代号改为S87342-XX-XX。
S87341-12-10,S87341-12-12,S87341-12-16,S87341-16-16,S87341-16-20,S87341-20-16,S87341-24-20,S87341-32-32,
