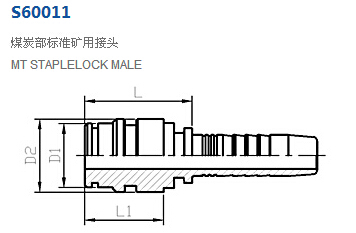

S60011-04-04,S60011-05-05,S60011-06-06,S60011-10-10,S60011-16-14,S60011-12-12,扣压式软管接头
产品技术参数：
| 代号 | 软管 | 尺寸 | |||
|---|---|---|---|---|---|
| PART NO. | 公称内径 DN | 标号 DASH | L | L1 | D2 |
| S60011-04-04 | 6 | 04 | 31 | 25 | 11 |
| S60011-05-05 | 8 | 05 | 33.5 | 26 | 13 |
| S60011-06-06 | 10 | 06 | 34 | 26 | 15 |
| S60011-08-06 | 10 | 06 | 34.5 | 26 | 18 |
| S60011-08-08 | 13 | 08 | 34.5 | 26 | 18 |
| S60011-10-10 | 16 | 10 | 39 | 30 | 20 |
| S60011-12-12 | 19 | 12 | 40.5 | 31 | 24 |
| S60011-16-14 | 22 | 14 | 41 | 31 | 30 |
| S60011-16-16 | 25 | 16 | 42 | 31 | 30 |
