S1DFS9-20-08,S1DFS9-30-12,S1DFS9-36-16,S1DFS9-42-20,S1DFS9-52-20,法兰接头

点击图片查看原图

型号：	S1DFS9-20-08,S1DFS9-30-12,S1DFS9-36-16,S1DFS9-42-20,S1DFS9-52-20
PDF下载：	如需产品详细说明请与销售客服联系
浏览次数：	260

公司基本资料信息

联系人销售员1622(女士)
电话13861877712
地区江苏-无锡市
地址无锡市会北路28-135

详细说明

S1DFS9-20-08,S1DFS9-30-12,S1DFS9-36-16,S1DFS9-42-20,S1DFS9-52-20,法兰接头

产品技术参数：

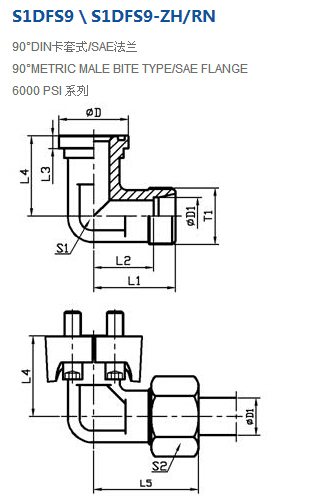

系列	代号 RAPT NO.	螺纹 THREAD	管子外径 TUBE O.D	尺寸 DIMENSIONS								螺栓	重量克/件	工作压力 (bar)
系列	代号 RAPT NO.	T1	D1	D	L1	L2	L3	L4	L5	S1	S2	螺栓	重量克/件	工作压力 (bar)
S	S1DFS9-20-08	M20X1.5	12	31.8	50	42.5	7.7	39	58.5	22	24	M8X30	370	420
	S1DFS9-22-08	M22X1.5	14	31.8	50	42	7.7	39	59.5	22	27	M8X30	390	420
	S1DFS9-24-08	M24X1.5	16	31.8	38	29.5	7.7	39	48	24	30	M8X30	490	400
	S1DFS9-24-12	M24X1.5	16	41.3	45	36.5	8.7	48	55	32	30	M10X35	920	400
	S1DFS9-30-12	M30X2	20	41.3	46	35.5	8.7	48	57	32	36	M10X35	970	400
	S1DFS9-36-12	M36X2	25	41.3	48	36	8.7	48	60	32	46	M10X35	1110	400
	S1DFS9-30-16	M30X2	20	47.6	65	54.5	9.5	60	75	41	36	M12X45	1690	420
	S1DFS9-36-16	M36X2	25	47.6	53	44	9.5	60	65	41	46	M12X45	1670	400
	S1DFS9-42-16	M42X2	30	47.6	55	41.5	9.5	60	68	41	50	M12X45	1630	400
	S1DFS9-36-20	M36X2	25	54	64	52	10.2	68	76	42	46	M14X50	2230	420
	S1DFS9-42-20	M42X2	30	54	58	44.5	10.2	68	71	46	50	M14X50	2220	400
	S1DFS9-52-20	M52X2	38	54	61	45	10.2	68	76	46	60	M14X50	2390	315
	S1DFS9-42-24	M42X2	30	63.5	76	63.5	12.5	76	90	50	50	M16X55	2380	420
	S1DFS9-52-24	M52X2	38	63.5	72	56	12.5	76	87	50	60	M16X55	2580	315

如需配发兰夹和螺钉在代号后加“ZH”,如S1DFS9-36-16ZH. S1DFS9-22-08,S1DFS9-24-08,S1DFS9-24-12,S1DFS9-36-12,S1DFS9-30-16,S1DFS9-42-16,
S1DFS9-36-20,S1DFS9-42-24,S1DFS9-52-24,
