S1CT9-12-02SP,S1CT9-16-04SP,S1DT9-20-06SP,S1CT9-22-08SP,S1DT9-24-08SP,S1CT9-26-08SP,弯通接头

点击图片查看原图

型号：	S1CT9-12-02SP,S1CT9-16-04SP,S1DT9-20-06SP,S1CT9-22-08SP,S1DT9-24-08SP,S1CT9-26-08SP
PDF下载：	如需产品详细说明请与销售客服联系
浏览次数：	154

公司基本资料信息

联系人销售员1622(女士)
电话13861877712
地区江苏-无锡市
地址无锡市会北路28-135

详细说明

S1CT9-12-02SP,S1CT9-16-04SP,S1DT9-20-06SP,S1CT9-22-08SP,S1DT9-24-08SP,S1CT9-26-08SP,弯通接头

产品技术参数：

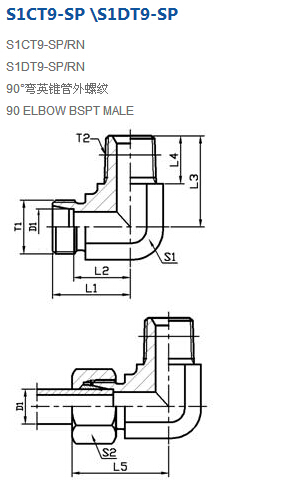

系列	代号 RAPT NO.	螺纹 THREAD		管子外径 TUBE O.D	尺寸 DIMENSIONS							重量克/件	工作压力 (bar)
系列	代号 RAPT NO.	T1	T2	D1	L1	L2	L3	L4	L5	S1	S2	重量克/件	工作压力 (bar)
L	S1CT9-12-02SP	M12X1.5	R1/8＂X28	06	19	12	20	9.5	27	12	14	30	315
	S1CT9-12-04SP	M12X1.5	R1/4＂X19	06	21	14	26	12	29	12	14	47	315
	S1CT9-14-04SP	M14X1.5	R1/4＂X19	08	21	14	26	14	29	14	17	46	315
	S1CT9-14-02SP	M14X1.5	R1/8＂X28	08	21	14	26	9.5	29	14	17	49	315
	S1CT9-14-06SP	M14X1.5	R3/8＂X19	08	24	17	28	14	32	19	17	94	315
	S1CT9-16-04SP	M16X1.5	R1/4＂X19	10	22	15	27	14	30	17	19	61	315
	S1CT9-16-06SP	M16X1.5	R3/8＂X19	10	24	17	28	14	32	19	19	87	315
	S1CT9-18-06SP	M18X1.5	R3/8＂X19	12	24	17	28	14	32	19	22	88	315
	S1CT9-18-04SP	M18X1.5	R1/4＂X19	12	24	17	27	14	32	19	22	80	315
	S1CT9-18-08SP	M18X1.5	R1/2＂X14	12	28	21	34	14	36	19	22	89	315
	S1CT9-22-08SP	M22X1.5	R1/2＂X14	15	28	21	34	14	36	22	27	94	315
	S1CT9-26-08SP	M26X1.5	R1/2＂X14	18	31	23.5	36	17	40	27	32	141	315
S	S1DT9-14-04SP	M14X1.5	R1/4＂X19	06	23	16	26	14	31	14	17	56	400
	S1DT9-14-06SP	M14X1.5	R3/8＂X19	06	25	18	20	12	33	19	17	61	400
	S1DT9-16-04SP	M16X1.5	R1/4＂X19	08	24	17	27	14	32	17	19	73	400
	S1DT9-16-06SP	M16X1.5	R3/8＂X19	08	25	18	28	12	33	19	19	63	400
	S1DT9-18-06SP	M18X1.5	R3/8＂X19	10	25	17.5	28	14	34	19	22	104	400
	S1DT9-18-04SP	M18X1.5	R1/4＂X19	10	25	17.5	28	14	34	19	22	59	400
	S1DT9-18-08SP	M18X1.5	R1/2＂X14	10	30	22.5	32	14	39	22	22	98	400
	S1DT9-20-06SP	M20X1.5	R3/8＂X19	12	29	21.5	28	14	38	19	24	126	400
	S1DT9-20-08SP	M20X1.5	R1/2＂X14	12	30	22.5	32	14	39	24	24	97	400
	S1DT9-22-08SP	M22X1.5	R1/2＂X14	14	30	22	32	14	40	22	27	101	400
	S1DT9-24-08SP	M24X1.5	R1/2＂X14	16	33	24.5	32	17	43	24	30	150	400

注：如需带卡套及卡套螺母整套订货，则请在代号后加“RN”，如S1CT9-30-12SP/RN。 S1CT9-12-04SP,S1CT9-14-04SP,S1CT9-14-02SP,S1CT9-14-06SP,S1CT9-16-06SP,S1CT9-18-06SP,
S1CT9-18-04SP,S1CT9-18-08SP,S1DT9-14-04SP,S1DT9-14-06SP,S1DT9-16-04SP,S1DT9-16-06SP,
S1DT9-18-06SP,S1DT9-18-04SP,S1DT9-18-08SP,S1DT9-20-08SP,S1DT9-22-08SP,
