S1CG4-12-02OG,S1DG4-14-04OG,S1CG4-26-08OG,S1DG4-30-12OG,S1CG4-52-24OG,S1DG4-42-20OG,可调向接头

点击图片查看原图

型号：	S1CG4-12-02OG,S1DG4-14-04OG,S1CG4-26-08OG,S1DG4-30-12OG,S1CG4-52-24OG,S1DG4-42-20OG
PDF下载：	如需产品详细说明请与销售客服联系
浏览次数：	194

公司基本资料信息

联系人销售员1622(女士)
电话13861877712
地区江苏-无锡市
地址无锡市会北路28-135

详细说明

S1CG4-12-02OG,S1DG4-14-04OG,S1CG4-26-08OG,S1DG4-30-12OG,S1CG4-52-24OG,S1DG4-42-20OG,可调向接头

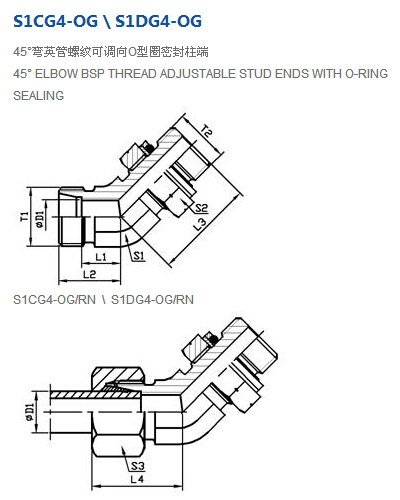

产品技术参数：

系列	代号 RAPT NO.	螺纹 THREAD		管子外径 TUBE O.D	尺寸 DIMENSIONS							重量克/件	工作压力 (bar)
系列	代号 RAPT NO.	T1	T2	D1	L1	L2	L3	L4	S1	S2	S3	重量克/件	工作压力 (bar)
L	S1CG4-12-02OG	M12X1.5	G1/8＂X28	06	9	16	28	24	14	14	14	30	315
	S1CG4-14-04OG	M14X1.5	G1/4＂X19	08	12	19	29	27	14	19	17	50	315
	S1CG4-16-06OG	M16X1.5	G3/8＂X19	10	14	21	30	30	16	22	22	81	315
	S1CG4-18-06OG	M18X1.5	G3/8＂X19	12	14	21	37	28	19	22	22	85	250
	S1CG4-22-08OG	M22X1.5	G1/2＂X14	15	17	24	39	32	22	27	27	150	250
	S1CG4-26-08OG	M26X1.5	G1/2＂X14	18	17	24.5	45	33	27	27	32	180	250
	S1CG4-30-12OG	M30X2	G3/4＂X14	22	19	26.5	50	35	30	36	36	276	160
	S1CG4-36-16OG	M36X2	G1＂X11	28	23	30.5	52	40	36	41	41	453	160
	S1CG4-45-20OG	M45X2	G1.1/4＂X11	35	27	37.5	54	48	50	50	50	680	160
	S1CG4-52-24OG	M52X2	G1.1/2＂X11	42	26	37	54	49	50	55	60	888	160
S	S1DG4-14-04OG	M14X1.5	G1/4＂X19	06	9	16	28	24	14	19	17	57	315
	S1DG4-16-04OG	M16X1.5	G1/4＂X19	08	12	19	32	27	19	19	19	67	315
	S1DG4-18-06OG	M18X1.5	G3/8＂X19	10	13	20.5	34	29	19	22	22	92	250
	S1DG4-20-06OG	M20X1.5	G3/8＂X19	12	17	24.5	34	33	19	22	24	100	250
	S1DG4-22-08OG	M22X1.5	G1/2＂X14	14	22	30	40	36	22	27	27	153	250
	S1DG4-24-08OG	M24X1.5	G1/2＂X14	16	16	24.5	44	34	27	27	30	163	250
	S1DG4-30-12OG	M30X2	G3/4＂X14	20	16	26.5	46	38	27	36	36	284	250
	S1DG4-36-16OG	M36X2	G1＂X11	25	19	31	51	43	36	41	46	475	250
	S1DG4-42-20OG	M42X2	G1.1/4＂X11	30	24	37.5	53	50	50	50	50	577	160

注：如需带卡套及卡套螺母整套订货，则请在代号后加“RN”，如S1CG4-30-12OG/RN。 S1CG4-14-04OG,S1CG4-16-06OG,S1CG4-18-06OG,S1CG4-22-08OG,S1CG4-30-12OG,S1CG4-36-16OG,
S1CG4-45-20OG,S1DG4-16-04OG,S1DG4-18-06OG,S1DG4-20-06OG,S1DG4-22-08OG,S1DG4-24-08OG,
S1DG4-36-16OG,
