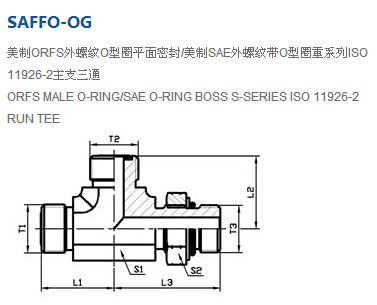

SAFFO-04OG,SAFFO-06OG,SAFFO-08OG,SAFFO-10OG,SAFFO-12OG,SAFFO-16OG,SAFFO-20OG,SAFFO-24OG,美制接头
产品技术参数：
| 代号 PART NO. | 螺纹 THREAD | 尺寸 DIMENSIONS | 重量（g) | 工作压力MPa | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| T1 | T2 | T3 | L1 | L2 | L3 | S1 | S2 | |||
| SAFFO-04OG | 9/16＂X18 | 9/16＂X18 | 7/16＂X18 | 21.5 | 21.5 | 33 | 14 | 17 | 72 | 40 |
| SAFFO-04-04-06OG | 9/16＂X18 | 9/16＂X18 | 9/16＂X18 | 23.5 | 23.5 | 37 | 19 | 19 | 98 | |
| SAFFO-06OG | 11/16＂X16 | 11/16＂X16 | 9/16＂X18 | 25 | 25 | 37 | 19 | 19 | 121 | |
| SAFFO-06-06-08OG | 11/16＂X16 | 11/16＂X16 | 3/4＂X16 | 26.5 | 26.5 | 40.5 | 19 | 24 | 170 | |
| SAFFO-08OG | 13/16＂X16 | 13/16＂X16 | 3/4＂X16 | 28 | 28 | 40.5 | 19 | 24 | 184 | |
| SAFFO-08-08-10OG | 13/16＂X16 | 13/16＂X16 | 7/8＂X14 | 30.5 | 30.5 | 50 | 27 | 27 | 250 | |
| SAFFO-10OG | 1＂X14 | 1＂X14 | 7/8＂X14 | 33.5 | 33.5 | 50 | 27 | 27 | 315 | |
| SAFFO-10-10-12OG | 1＂X14 | 1＂X14 | 1.1/16＂X12 | 36.5 | 36.5 | 55 | 30 | 32 | 423 | |
| SAFFO-12OG | 1.3/16＂X12 | 1.3/16＂X12 | 1.1/16＂X12 | 37.5 | 37.5 | 55 | 30 | 32 | 487 | |
| SAFFO-12-12-16OG | 1.3/16＂X12 | 1.3/16＂X12 | 1.5/16＂X15 | 41 | 41 | 60 | 36 | 41 | 675 | 31.5 |
| SAFFO-16OG | 1.7/16＂X12 | 1.7/16＂X12 | 1.5/16＂X12 | 41.5 | 41.5 | 60 | 36 | 41 | 740 | |
| SAFFO-16-16-20OG | 1.7/16＂X12 | 1.7/16＂X12 | 1.5/8＂X12 | 44.5 | 44.5 | 62 | 41 | 50 | 905 | 25 |
| SAFFO-20OG | 1.11/16＂X12 | 1.11/16＂X12 | 1.5/8＂X12 | 44.5 | 44.5 | 62 | 41 | 50 | 1030 | |
| SAFFO-24OG | 2＂X12 | 2＂X12 | 1.7/8＂X12 | 49 | 49 | 66 | 50 | 55 | 1446 | 20 |
SAFFO-12-12-16OG,SAFFO-16-16-20OG,
