KSNV-04F-BSP,KSNV-06F-BSP,KSNV-06M-NPT,KSNV-08M-BSP,标准型快速接头
主要特点及应用
KSNV 系列快速接头是一种通用性快速接头，在压力释放时连接，经济可靠广泛应用于工农业之液压系统中。采用针阀结构
技术特点：
符合 ISO5675 之标准，优质碳钢和铬合金材料制造，高精度加工，金属密封，阻尼小，通过最大。经热处理和局部淬火，忍性好，耐冲击，表面镀锌处理，耐腐蚀。密封件采用高硬度丁青橡胶。
产品说明
KSNV 规格 - 钢 - 针阀
KSNV 1/2" 等同于KSA系列同尺寸的设计
材质：碳钢，表面镀环保锌
阀芯：针阀
密封件：以NBR为标准
挡圈：铁氟龙
工作温度：在标准NBR范围内，承受-25℃ + 125℃的温度。

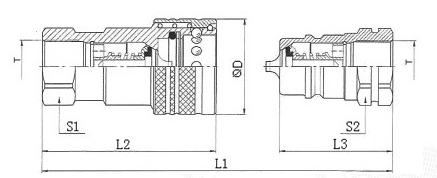

| 昌林液压 |
国际标准 |
L1 |
L2 |
L3 |
ØD |
S1 |
S2 |
T |
母接头编号 |
公接头编号 |
| 04 |
6.3 |
73.5 |
56.0 |
35.0 |
28.0 |
19.0 |
19.0 |
1/4"BSP |
KSNV-04F-BSP |
KSNV-04M-BSP |
| |
|
|
|
|
|
|
|
1/4"NPT |
KSNV-04F-NPT |
KSNV-04M-NPT |
| 06 |
10 |
85.0 |
63.0 |
42.5 |
34.0 |
24.0 |
24.0 |
3/8"BSP |
KSNV-06F-BSP |
KSNV-06M-BSP |
| |
|
|
|
|
|
|
|
3/8"NPT |
KSNV-06F-NPT |
KSNV-06M-NPT |
| 08 |
12.5 |
92.5 |
68.5 |
46.5 |
38.0 |
27.0 |
27.0 |
1/2"BSP |
KSNV-08F-BSP |
KSNV-08M-BSP |
| |
|
|
|
|
|
|
|
1/2"NPT |
KSNV-08F-NPT |
KSNV-08M-NPT |
| 12 |
20 |
116.5 |
86.0 |
58.0 |
46.0 |
34.0 |
34.0 |
3/4"BSP |
KSNV-12F-BSP |
KSNV-12M-BSP |
| |
|
|
|
|
|
|
|
3/4"NPT |
KSNV-12F-NPT |
KSNV-12M-NPT |
| 16 |
25 |
132.5 |
99.0 |
65.5 |
52.0 |
41.0 |
41.0 |
1"BSP |
KSNV-16F-BSP |
KSNV-16M-BSP |
| |
|
|
|
|
|
|
|
1"NPT |
KSNV-16F-NPT |
KSNV-16M-NPT |
| KSNV 技术参数 |
| 公称通径 |
最大工作压力 |
额定流量 |
最小爆破压力 |
泄漏量 |
| 公接头 |
母接头 |
连接 |
| LPH |
ISO |
(bar) |
(l/m) |
(bar) |
(bar) |
(bar) |
(cc) |
| 04 |
6.3 |
400 |
12 |
1630 |
1780 |
1780 |
1 |
| 06 |
10 |
350 |
23 |
1570 |
1750 |
1580 |
2.4 |
| 08 |
12.5 |
250 |
45 |
1000 |
1460 |
1240 |
2.7 |
| 12 |
20 |
250 |
106 |
1000 |
1220 |
1170 |
8.6 |
| 16 |
25 |
250 |
189 |
1260 |
1150 |
1030 |
13 |
|
KSNV-04F-NPT,KSNV-06F-NPT,KSNV-08F-BSP,KSNV-08F-NPT,KSNV-12F-BSP,KSNV-12F-NPT,KSNV-16F-BSP,KSNV-16F-NPT,
KSNV-04M-BSP,KSNV-04M-NPT,KSNV-06M-BSP,KSNV-08M-NPT,KSNV-12M-BSP,KSNV-12M-NPT,KSNV-16M-BSP,KSNV-16M-NPT,
