Technical Data
|
Model |
NV-5521-MH |
NV-6521-MH |
NV-7521-MH |
NV-8521-MH |
|
Position |
5/2 Way |
|||
|
Port size |
G 1/8” |
G 1/4” |
G 3/8” |
G 1/2” |
|
Effective area |
18mm2 (Cv=1.0) |
30mm2 (Cv=1.68) |
30mm2 (Cv=1.68) |
50mm2 (Cv=2.79) |
|
Nominal flow |
1000 Nl/min |
1680 Nl/min |
1680 Nl/min |
2790 Nl/min |
|
Fluid |
Compressed air |
|||
|
Pressure range |
0~8 bar (0~115psi) |
|||
|
Operating temperature |
5~60°C (41~140°F) |
|||
|
Weight |
0.18 kg |
0.31 kg |
0.31 kg |
0.42 kg |
|

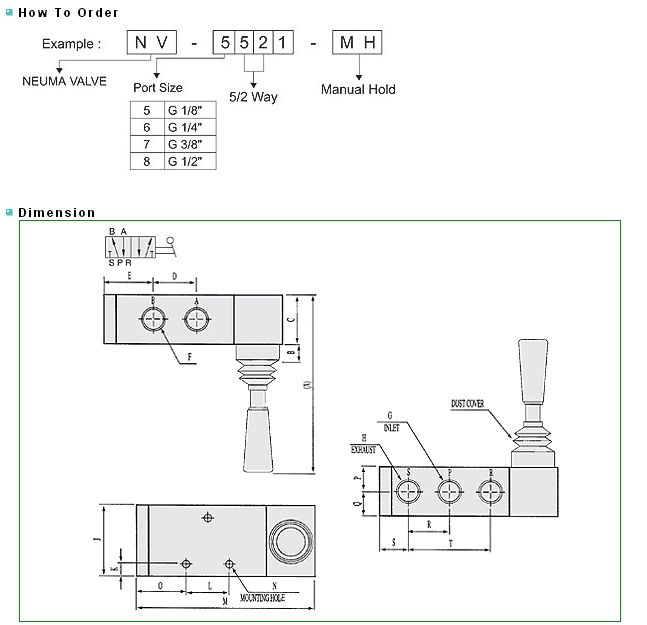

Valve Size
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
H
|
|
NV-5521-MH
|
(94)
|
10
|
22
|
21
|
21.5
|
G1/8”
|
G1/8”
|
G1/8”
|
|
NV-6521-MH
|
(99)
|
10
|
27
|
24
|
28
|
G1/4”
|
G1/4”
|
G1/4”
|
|
NV-7521-MH
|
(99)
|
10
|
27
|
24
|
28
|
G1/4”
|
G3/8”
|
G1/4”
|
|
NV-8521-MH
|
(101)
|
10
|
34
|
36
|
37
|
G1/2”
|
G1/2”
|
G1/2”
|
|
Valve Size
|
J
|
K
|
L
|
M
|
N
|
O
|
P
|
Q
|
R
|
S
|
T
|
|
NV-5521-MH
|
35
|
7
|
20
|
84
|
4.3
|
22
|
11
|
11
|
18
|
14
|
36
|
|
NV-6521-MH
|
40
|
7
|
24
|
99
|
4.3
|
27.5
|
13.5
|
13.5
|
23
|
17
|
46
|
|
NV-7521-MH
|
40
|
7
|
24
|
99
|
4.3
|
27.8
|
13.5
|
13.5
|
23
|
17
|
46
|
|
NV-8521-MH
|
50
|
7.5
|
28
|
136
|
5.5
|
41.5
|
17
|
17
|
31.5
|
24
|
63
|
