F745X-10P,F745X-10C,F745X-16C,F745X-25C,F745X-40P,隔膜式遥控浮球阀
产品型号：F745X
公称通径：DN50~DN600
公称压力：1.0 Mpa、1.6 Mpa、2.5 Mpa、4.0Mpa
适用介质：水、油品
适用温度：0~80℃
连接形式：法兰
材质：铸铁，铸钢，球磨铸铁，不锈钢
产品标准：国标GB
法兰标准：GB/T17241.6 GB/T9113
密封实验标准：GB/T13927 AP1598
隔膜式遥控浮球阀特点
控制液位精确，关闭严密可靠，主阀密封采用橡胶密封环密封，关闭动力有主阀自动控制形成，保持合适关闭力，密封寿命和可靠性高，是目前定水位阀最佳选择产品！

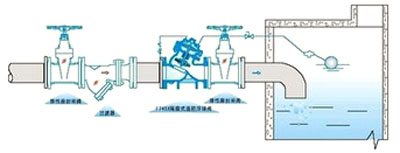

遥控浮球阀广泛用于层建筑、生活区等供水管网系统的水塔、水池等设施液面高度自动控制。
|

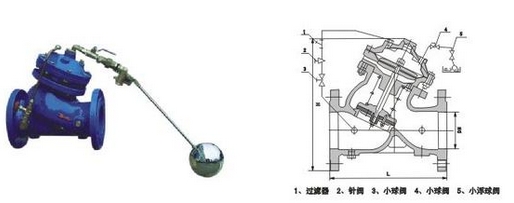

DN |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
350 |
400 |
500 |
600 |
|
L |
205 |
220 |
245 |
290 |
400 |
425 |
457 |
535 |
610 |
660 |
692 |
865 |
1000 |
|
H |
300 |
330 |
467 |
520 |
550 |
580 |
640 |
778 |
889 |
1010 |
1037 |
1294 |
1324 |
