100QJ1.5,150QJ25,100QJ2,100QJ3,150QJ40,150QJ90,100QJ8,100QJ4,100QJ6,150QJ35,不锈钢深井泵
一、产品概述:
QJP型不锈钢深井泵高性能耐磨型电泵，动力部份配用目前国际先进技术生产的水浸式不锈钢潜水电机，对水质绝对无污染，是当前国内外深井泵之精品。选用优质不锈钢外壳、轴芯、联轴器、入水座和泵头（或铜合金入水座、泵头），高强度抗耐磨新型复合高分子材料叶轮和不锈钢导流壳，全新“浮动式”结构叶轮在工作期间对电机无轴向压力。

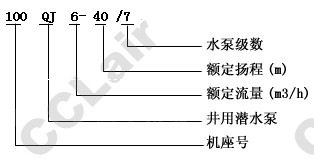

二、型号意义:
三、使用范围:
QJP型不锈钢深井泵特别适用于工矿业、农业、建筑业、养殖业、食品饮料业及家庭式（或高层送水使用）。
四、QJP型不锈钢深井泵性能参数:
|
序号
|
型号
|
电机功率
|
流量扬程（m3/h)/h
|
出水管径
|
适用井径
|
|||
|
HP
|
KW
|
|||||||
|
1
|
100QJ1.5-40/7
|
0.5
|
0.37
|
1.5/40
|
2/35
|
3/25
|
40(1.5")
|
100
|
|
2
|
100QJ1.5-50/9
|
0.75
|
0.55
|
1.5/50
|
2/43
|
3/35
|
40(1.5")
|
100
|
|
3
|
100QJ1.5-70/12
|
1
|
0.75
|
1.5/70
|
2/63
|
3/50
|
40(1.5")
|
100
|
|
4
|
100QJ1.5-98/17
|
1.5
|
1.1
|
1.5/98
|
2/87
|
3/70
|
40(1.5")
|
100
|
|
5
|
100QJ1.5-127/23
|
2
|
1.5
|
1.5/127
|
2/115
|
3/92
|
40(1.5")
|
100
|
|
6
|
100QJ1.5-168/30
|
3
|
2.2
|
1.5/168
|
2/145
|
3/115
|
40(1.5")
|
100
|
|
7
|
100QJ1.5-260/45
|
5
|
3.7
|
1.5/260
|
2/245
|
3/200
|
40(1.5")
|
100
|
|
8
|
100QJ2-45/8
|
0.75
|
0.55
|
2/45
|
3/40
|
4/33
|
40(1.5")
|
100
|
|
9
|
100QJ2-63/11
|
1
|
0.75
|
2/63
|
3/57
|
4/48
|
40(1.5")
|
100
|
|
10
|
100QJ2-85/15
|
1.5
|
1.1
|
2/85
|
3/73
|
4/60
|
40(1.5")
|
100
|
|
11
|
100QJ2-115/21
|
2
|
1.5
|
2/115
|
3/100
|
4/85
|
40(1.5")
|
100
|
|
12
|
100QJ2-155/28
|
3
|
2.2
|
2/155
|
3/138
|
4/112
|
40(1.5")
|
100
|
|
13
|
100QJ2-235/42
|
5
|
3.7
|
2/235
|
3/205
|
4/170
|
40(1.5")
|
100
|
|
14
|
100QJ3-40/7
|
0.75
|
0.55
|
3/40
|
4/33
|
5/25
|
40(1.5")
|
100
|
|
15
|
100QJ3-55/10
|
1
|
0.75
|
3/55
|
4/43
|
5/35
|
40(1.5")
|
100
|
|
16
|
100QJ3-70/13
|
1.5
|
1.1
|
3/70
|
4/59
|
5/48
|
40(1.5")
|
100
|
|
17
|
100QJ3-100/18
|
2
|
1.5
|
3/100
|
4/87
|
5/65
|
40(1.5")
|
100
|
|
18
|
100QJ3-130/23
|
3
|
2.2
|
3/130
|
4/112
|
5/98
|
40(1.5")
|
100
|
|
19
|
100QJ3-180/33
|
5
|
3.7
|
3/180
|
4/156
|
5/130
|
40(1.5")
|
100
|
|
20
|
100QJ3-240/43
|
7.5
|
5.5
|
3/240
|
4/206
|
5/175
|
40(1.5")
|
100
|
|
21
|
100QJ4-45/8
|
1
|
0.75
|
4/45
|
5.5/40
|
7/35
|
40(1.5")
|
100
|
|
22
|
100QJ4-60/11
|
1.5
|
1.1
|
4/60
|
5.5/49
|
7/40
|
40(1.5")
|
100
|
|
23
|
100QJ4-73/13
|
2
|
1.5
|
4/73
|
5.5/60
|
7/50
|
40(1.5")
|
100
|
|
24
|
100QJ4-110/20
|
3
|
2.2
|
4/110
|
5.5/85
|
7/70
|
40(1.5")
|
100
|
|
25
|
100QJ4-150/28
|
5
|
3.7
|
4/155
|
5.5/127
|
7/95
|
40(1.5")
|
100
|
|
26
|
100QJ4-190/35
|
7.5
|
5.5
|
4/190
|
5.5/168
|
7/130
|
50(2")
|
100
|
|
27
|
100QJ6-40/7
|
1
|
0.75
|
6/40
|
8/30
|
10/20
|
50(2")
|
100
|
|
28
|
100QJ6-50/9
|
1.5
|
1.1
|
6/50
|
8/40
|
10/30
|
50(2")
|
100
|
|
29
|
100QJ6-62/11
|
2
|
1.5
|
6/62
|
8/53
|
10/41
|
50(2")
|
100
|
|
30
|
100QJ6-83/15
|
3
|
2.2
|
6/83
|
8/72
|
10/60
|
50(2")
|
100
|
|
31
|
100QJ6-120/23
|
5
|
3.7
|
6/120
|
8/102
|
10/82
|
50(2")
|
100
|
|
32
|
100QJ6-180/33
|
7.5
|
5.5
|
6/180
|
8/150
|
10/120
|
50(2")
|
100
|
|
33
|
100QJ8-40/7
|
1.5
|
1.1
|
8/40
|
10/32
|
12/25
|
50(2")
|
100
|
|
34
|
100QJ8-50/9
|
2
|
1.5
|
8/50
|
10/41
|
12/33
|
50(2")
|
100
|
|
35
|
100QJ8-78/14
|
3
|
2.2
|
8/78
|
10/65
|
12/52
|
50(2")
|
100
|
|
36
|
100QJ8-99/19
|
5
|
3.7
|
8/99
|
10/80
|
12/62
|
50(2")
|
100
|
|
37
|
100QJ8-138/25
|
7.5
|
5.5
|
8/138
|
10/110
|
12/85
|
50(2")
|
100
|
|
38
|
100QJ8-190/34
|
10
|
7.5
|
8/190
|
10/150
|
12/120
|
50(2")
|
100
|
|
39
|
100QJ12-40/7
|
2
|
1.5
|
12/40
|
14/30
|
16/23
|
50(2")
|
100
|
|
40
|
100QJ12-50/9
|
3
|
2.2
|
12/50
|
14/42
|
16/35
|
50(2")
|
100
|
|
41
|
100QJ12-75/15
|
5
|
3.7
|
12/75
|
14/63
|
16/50
|
50(2")
|
100
|
|
42
|
100QJ12-116/22
|
7.5
|
5.5
|
12/116
|
14/88
|
16/73
|
50(2")
|
100
|
|
43
|
100QJ12-152/28
|
10
|
7.5
|
12/152
|
14/123
|
16/98
|
50(2")
|
100
|
|
44
|
100QJ16-40/7
|
3
|
2.2
|
16/40
|
18/35
|
20/30
|
50(2")
|
100
|
|
45
|
100QJ16-50/9
|
5
|
3.7
|
16/50
|
18/44
|
20/39
|
50(2")
|
100
|
|
46
|
100QJ16-100/16
|
7.5
|
5.5
|
16/100
|
18/83
|
20/61
|
50(2")
|
100
|
|
47
|
100QJ16-125/23
|
10
|
7.5
|
16/125
|
18/98
|
20/73
|
50(2")
|
100
|
|
48
|
150QJ25-30/3
|
5
|
3.7
|
25/30
|
30/25
|
35/20
|
80(3")
|
100
|
|
49
|
150QJ25-45/5
|
7.5
|
5.5
|
25/45
|
30/40
|
35/30
|
80(3")
|
150
|
|
50
|
150QJ25-60/7
|
10
|
7.5
|
25/60
|
30/55
|
35/45
|
80(3")
|
150
|
|
51
|
150QJ25-75/9
|
15
|
11
|
25/75
|
30/65
|
35/55
|
80(3")
|
150
|
|
52
|
150QJ35-35/4
|
7.5
|
5.5
|
35/35
|
40/30
|
45/25
|
80(3")
|
150
|
|
53
|
150QJ35-45/6
|
10
|
7.5
|
35/45
|
40/40
|
45/30
|
80(3")
|
150
|
|
54
|
150QJ35-55/8
|
15
|
11
|
35/55
|
40/50
|
45/40
|
80(3")
|
150
|
|
55
|
150QJ35-70/10
|
20
|
15
|
35/70
|
40/60
|
45/50
|
80(3")
|
150
|
|
56
|
150QJ15-100/24
|
20
|
15
|
15/200
|
20/160
|
25/110
|
80(3")
|
150
|
|
57
|
150QJ15-240/30
|
25
|
18.5
|
15/240
|
20/200
|
25/130
|
80(3")
|
150
|
|
58
|
150QJ15-280/37
|
30
|
22
|
15/280
|
20/240
|
25/160
|
80(3")
|
150
|
|
59
|
150QJ40-90/13
|
20
|
15
|
40/90
|
45/75
|
50/60
|
80(3")
|
150
|
|
60
|
150QJ40-110/16
|
25
|
18.5
|
40/110
|
45/100
|
50/70
|
80(3")
|
150
|
|
61
|
150QJ40-140/19
|
30
|
22
|
40/140
|
45/110
|
50/90
|
80(3")
|
150
|
|
62
|
150QJ40-180/25
|
40
|
30
|
40/170
|
45/150
|
50/130
|
80(3")
|
150
|
|
63
|
150QJ50-140/21
|
40
|
30
|
50/140
|
55/110
|
60/80
|
80(3")
|
150
|
|
64
|
150QJ50-170/27
|
50
|
37
|
50/180
|
55/140
|
60/110
|
80(3")
|
150
|
|
65
|
150QJ70-130/12
|
50
|
37
|
70/130
|
80/100
|
90/80
|
80(3")
|
150
|
|
66
|
150QJ70-160/14
|
60
|
45
|
70/160
|
80/120
|
90/100
|
80(3")
|
150
|
|
67
|
150QJ90-120/11
|
60
|
45
|
90/120
|
100/100
|
110/80
|
80(3")
|
150
|
