产品名称：手动隔膜阀
产品特点：隔膜阀是一种特殊形工的具有截断功能的阀门，其启闭件由钢质瓣与软质材料（橡胶和氟塑料复合）制的隔膜组成并将阀体内腔与阀盖内腔隔开以达到截断管内介质之目的。
设计规范：遵循GB 1239, BS 5156标准。
驱动方式：手动、气动（常开或常闭）、电动。
法兰连接隔膜阀
设计与制造符合中国国家标准
基本结构形式：堰式，直流式
公称压力PN0.6~1.0(Mpa)
公称能径DN15-400(mm)
|
手动 |
G41J(堰式) |
手动 |
G641J(往复式) |
|
G41F5(堰式) |
G641F5(往复式) |
||
|
G45J(直流式) |
G6B41F(常闭式) |
||
|
G45F5(直流式) |
G6B41F5(常闭式) |
||
|
电动 |
G9B41J(防爆式) |
电动 |
G941J(普通型) |
|
G9B41F5(防爆式) |
G941F5(普通型) |
|
遵循规范 |
STANDARD |
|
设计与制造 |
GB12239 |
|
结构长度 |
GB1221/JB1688 |
|
法兰尺寸 |
JB78/JB79(GB HG SH) |
|
压力试验 |
GB/T13927 |
|
标签 |
GB12220 |
|
供货 |
GB/T12252 |
二、主要零部件材料表：
|
序号 |
零件名称 |
灰铸铁 |
铸钢 |
不锈钢 |
超低碳钢 |
||
|
Z |
C |
P |
R |
PL |
RL |
||
|
1 |
阀体、阀盖、阀瓣 |
HT250 |
WCB |
CF8 |
CF8M |
CF3 |
CF3M |
|
2 |
阀杆 |
35 |
1Cr13 |
1Cr18Ni19Ti |
1Cr18Ni12Mo2Ti |
00Cr18Ni10 |
00Cr17Ni14Mo2 |
|
3 |
衬里层 |
FEP（F46） PFA PCTFE（F3） |
|||||
|
4 |
隔膜 |
FEP（F46）/CR（氟丁橡胶） PFA（可溶性聚四氟乙烯）/FPDM（乙丙橡胶） |
|||||
|
5 |
阀杆螺母 |
ZCuAL10Fe3 ZCuAL10Fe3 |
|||||
|
6 |
螺栓 |
35 |
35 |
1Cr17Ni2 |
1Cr17Ni2 |
1Cr17Ni9Ti |
1Cr17Ni9Ti |
|
7 |
螺母 |
45 |
45 |
0Cr18Ni9 |
0Cr18Ni9 |
0Cr18Ni9 |
0Cr18Ni9 |
|
8 |
手轮 |
HT200 |
HT200 |
WCC |
WCC |
WCC |
WCC |

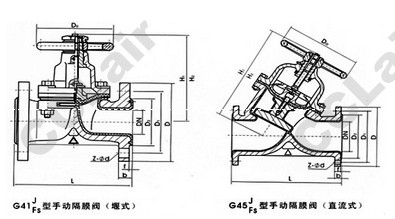

三、隔膜阀外形连接尺寸及重量：
|
型号 |
公称通径DN(mm) |
尺寸（㎜） |
|||||||||
|
L |
D |
D1 |
D0 |
Z-φd |
H |
H1 |
H2 |
H3 |
重量 |
||
|
G41WJFS-6\10 |
15 |
125 |
95 |
65 |
120 |
4-φ14 |
- | - | - | - |
3.8 |
|
20 |
135 |
105 |
75 |
120 |
4-φ14 |
- | - | - | - |
4.2 |
|
|
25 |
145 |
115 |
85 |
120 |
4-φ14 |
121 |
135 |
- | - |
4.5 |
|
|
32 |
160 |
1135 |
100 |
120 |
4-φ18 |
132 |
150 |
- | - |
7 |
|
|
40 |
180 |
145 |
110 |
140 |
4-φ18 |
156 |
176 |
- | - |
9 |
|
|
50 |
210 |
160 |
125 |
140 |
4-φ18 |
169 |
195 |
- | - |
12 |
|
|
65 |
250 |
180 |
145 |
200 |
4-φ18 |
202 |
236 |
- | - |
18 |
|
|
80 |
300 |
195 |
160 |
200 |
4-φ18 |
216 |
256 |
- | - |
24.5 |
|
|
100 |
350 |
215 |
180 |
280 |
8-φ18 |
270 |
322 |
- | - |
38.5 |
|
|
125 |
400 |
245 |
210 |
320 |
8-φ18 |
338 |
406 |
- | - |
60 |
|
|
150 |
460 |
280 |
240 |
320 |
8-φ23 |
384 |
464 |
- | - |
82 |
|
|
G41WJFS-4 |
200 |
570 |
335 |
295 |
400 |
8-φ23 |
518 |
638 |
- | - |
149 |
|
250 |
680 |
390 |
350 |
500 |
12-φ23 |
598 |
734 |
- | - |
240 |
|
|
300 |
790 |
440 |
400 |
560 |
12-φ23 |
698 |
778 |
- | - |
350 |
|
|
350 |
900 |
500 |
460 |
560 |
16-φ23 |
723 |
883 |
- | - |
392 |
|
|
400 |
1000 |
565 |
515 |
640 |
16-φ25 |
868 |
1078 |
- | - |
585 |
|
|
G45WJFS-6 |
32 |
180 |
135 |
100 |
120 |
4-φ18 |
- | - | - | - |
7 |
|
40 |
180 |
145 |
110 |
140 |
4-φ18 |
- | - |
203 |
216 |
8.5 |
|
|
50 |
210 |
160 |
125 |
140 |
4-φ18 |
- | - |
213 |
229 |
14 |
|
|
65 |
250 |
180 |
145 |
200 |
4-φ18 |
- | - |
248 |
268 |
18 |
|
|
80 |
300 |
195 |
160 |
200 |
4-φ18 |
- | - |
281 |
305 |
30 |
|
|
100 |
350 |
215 |
180 |
280 |
8-φ18 |
- | - |
332 |
362 |
43 |
|
|
125 |
400 |
245 |
210 |
320 |
8-φ18 |
- | - | - | - |
67 |
|
|
150 |
460 |
280 |
240 |
320 |
8-φ23 |
- | - |
450 |
496 |
80 |
|
|
200 |
570 |
335 |
295 |
400 |
8-φ23 |
- | - |
594 |
654 |
150.2 |
|
|
250 |
680 |
390 |
350 |
500 |
12-φ23 |
- | - |
695 |
771 |
238 |
|
