Dt343H-6C,Dt343H-10P,Dt343H-6R,Dt643H-10C,Dt643H-10R,Dt943H-10C,Dt943H-6P,聚四氟密封蝶阀
一、产品[聚四氟密封蝶阀]的详细资料：
产品名称：聚四氟密封蝶阀
产品特点：聚四氟密封蝶阀,密封蝶阀,聚四氟蝶阀

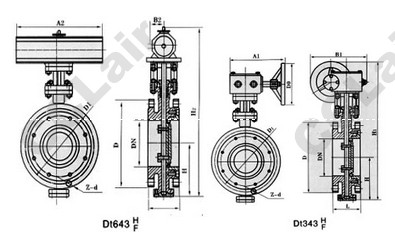

二、Dt3/6/43H-6/10C.P.R.V系列法兰式弹性金属硬密封蝶阀：
|
公称通径 |
结构长度 |
外形尺寸（参考值） |
连接尺寸（标准值） |
||||||||||||||||
|
L |
H |
Dt343H |
Dt643H |
Dt943H |
PN0.6MPa |
PN1.0MPa |
|||||||||||||
|
毫米 |
英寸 |
短 |
长 |
H1 |
A1 |
B1 |
H2 |
A2 |
B2 |
H3 |
A3 |
B3 |
D |
D1 |
Z-d |
D |
D1 |
Z-d |
|
|
50 |
2 |
108 |
150 |
112 |
350 |
180 |
200 |
625 |
245 |
72 |
530 |
250 |
255 |
140 |
110 |
4-14 |
165 |
125 |
4-18 |
|
65 |
2 1/2 |
112 |
170 |
115 |
370 |
180 |
200 |
625 |
245 |
72 |
530 |
250 |
255 |
160 |
130 |
4-14 |
185 |
145 |
4-18 |
|
80 |
3 |
114 |
180 |
120 |
380 |
180 |
200 |
645 |
245 |
72 |
565 |
250 |
255 |
190 |
150 |
4-18 |
200 |
160 |
8-18 |
|
100 |
4 |
127 |
190 |
138 |
420 |
180 |
200 |
675 |
355 |
92 |
600 |
250 |
255 |
210 |
170 |
4-18 |
220 |
180 |
8-18 |
|
125 |
5 |
140 |
200 |
164 |
460 |
180 |
200 |
715 |
355 |
92 |
640 |
250 |
255 |
240 |
200 |
8-18 |
250 |
210 |
8-18 |
|
150 |
6 |
140 |
210 |
175 |
555 |
270 |
280 |
800 |
355 |
92 |
705 |
300 |
315 |
265 |
225 |
8-18 |
285 |
240 |
8-22 |
|
200 |
8 |
152 |
230 |
208 |
605 |
270 |
280 |
850 |
250 |
170 |
775 |
300 |
315 |
320 |
280 |
8-18 |
340 |
295 |
8-22 |
|
250 |
10 |
165 |
250 |
243 |
680 |
270 |
280 |
925 |
250 |
170 |
945 |
300 |
315 |
375 |
335 |
12-18 |
395 |
350 |
12-22 |
|
300 |
12 |
178 |
270 |
283 |
800 |
380 |
420 |
1035 |
450 |
220 |
1070 |
300 |
315 |
440 |
395 |
12-22 |
445 |
400 |
12-22 |
|
350 |
14 |
190 |
290 |
310 |
835 |
380 |
420 |
1070 |
450 |
220 |
1140 |
300 |
315 |
490 |
445 |
12-22 |
505 |
460 |
16-22 |
|
400 |
6 |
216 |
310 |
340 |
915 |
450 |
470 |
1190 |
450 |
220 |
1210 |
300 |
315 |
540 |
495 |
16-22 |
565 |
515 |
16-26 |
|
450 |
8 |
222 |
330 |
380 |
960 |
480 |
490 |
1250 |
650 |
280 |
1335 |
575 |
714 |
595 |
550 |
16-22 |
615 |
565 |
20-26 |
|
500 |
20 |
229 |
350 |
410 |
1020 |
480 |
490 |
1290 |
650 |
280 |
1415 |
575 |
714 |
645 |
600 |
20-22 |
670 |
620 |
20-26 |
|
600 |
24 |
267 |
390 |
470 |
1225 |
480 |
490 |
1455 |
850 |
380 |
1605 |
656 |
810 |
755 |
705 |
20-26 |
780 |
725 |
20-30 |
|
700 |
28 |
292 |
430 |
550 |
1355 |
640 |
660 |
1585 |
850 |
380 |
1844 |
656 |
810 |
860 |
810 |
24-26 |
895 |
840 |
24-30 |
|
800 |
32 |
318 |
470 |
640 |
1470 |
640 |
660 |
1700 |
1250 |
380 |
2040 |
656 |
810 |
975 |
920 |
24-30 |
1015 |
950 |
24-33 |
|
900 |
36 |
330 |
510 |
710 |
1545 |
750 |
860 |
1865 |
1250 |
380 |
2255 |
785 |
863 |
1075 |
1020 |
24-30 |
1115 |
1050 |
28-33 |
|
1000 |
40 |
410 |
550 |
770 |
1795 |
850 |
900 |
2015 |
1500 |
580 |
2380 |
785 |
863 |
1175 |
1120 |
28-30 |
1230 |
1160 |
28-36 |
|
1200 |
48 |
470 |
630 |
890 |
1965 |
850 |
900 |
2226 |
1500 |
580 |
2640 |
785 |
863 |
1405 |
1340 |
32-33 |
1455 |
1380 |
32-39 |
