一、产品[蜗轮传动法兰式]的详细资料：

产品型号：SDtd343H/F/X

产品名称：蜗轮传动法兰式

产品特点：蜗轮传动法兰式伸缩蝶阀,蜗轮传动蝶阀,法兰式伸缩蝶阀

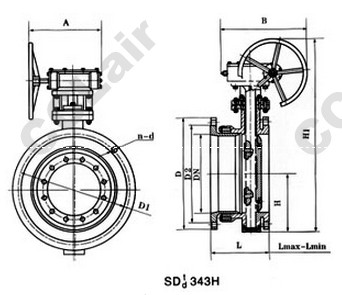

二、伸缩蝶阀SDtd343H/F/X-6/10/16系列连接尺寸：

公称通径		外形尺寸（参考值）							法兰尺寸和螺栓孔尺寸（标准值）
公称通径		H	H1	设计最大长度	设计最小长度	设计长度	A	B	0.6MPa				1.0MPa				1.6MPa
毫米	英寸	H	H1	设计最大长度	设计最小长度	设计长度	A	B	D	D1	D2	n-d	D	D1	D2	n-d	D	D1	D2	n-d
50	2	80	309	164	138	151	180	200	140	110	88	4-14	165	125	99	4-18	165	125	99	4-18
65	2 1/2	95	337	190	154	172	180	200	160	130	108	4-14	185	145	118	4-18	185	145	118	4-18
80	3	98	347	195	163	177	180	200	190	150	124	4-18	200	160	132	8-18	200	160	132	8-18
100	4	114	373	227	184	206	180	200	210	170	144	4-18	220	180	156	8-18	220	180	156	8-18
125	5	128	405	254	201	215	180	200	240	200	174	8-18	250	210	184	8-18	250	210	184	8-18
150	6	139	440	240	195	225	270	280	265	225	199	8-18	285	240	211	8-22	285	240	211	8-22
200	8	174	612	265	215	245	400	425	320	280	254	8-18	340	295	266	8-22	340	295	266	12-22
250	10	215	693	295	235	265	400	425	375	335	309	12-18	395	350	319	12-22	405	355	319	12-26
300	12	245	747	308	254	282	450	560	440	395	363	12-22	445	400	370	12-22	460	410	370	12-26
350	14	270	802	325	271	300	450	560	490	445	413	12-22	505	460	429	16-22	520	470	429	16-26
400	16	305	991	345	283	314	535	580	540	495	463	16-22	565	515	480	16-26	580	525	480	16-30
450	18	325	1037	370	314	340	535	580	595	550	518	16-22	615	565	530	20-26	640	585	548	20-30
500	20	360	1127	377	316	346	535	586	645	600	568	20-22	670	620	582	20-26	715	650	609	20-33
600	24	445	1377	446	388	417	570	660	755	705	667	20-26	780	725	682	20-30	840	770	720	20-36
700	28	505	1496	445	395	425	750	550	860	810	772	24-26	895	840	794	24-30	910	840	794	24-36
800	32	560	1584	479	425	455	750	550	975	920	878	24-30	1015	950	901	24-33	1025	950	901	24-39
900	36	630	1676	515	455	485	750	550	1075	1020	978	24-30	1115	1050	1001	28-33	1125	1050	1001	28-39
1000	40	680	1760	525	465	495	900	750	1175	1120	1078	28-30	1230	1160	1112	28-36	1255	1170	1112	28-42
1200	48	795	2018	574	512	542	1000	925	1405	1340	1295	32-33	1455	1380	1328	32-39	1485	1390	1328	32-48
1400	56	900	2363	599	547	572	1000	925	1630	1560	1510	36-36	1675	1530	1530	36-42	1685	1590	1530	36-48
1600	64	1100	2723	640	589	615	1000	925	1830	1760	1710	40-36	1915	1820	1750	40-48	1930	1820	1750	40-56
1800	72	1124	2844	725	670	695	1100	980	2045	1970	1718	44-39	2115	2020	1950	44-48	2130	2020	1950	44-56
2000	80	1292	3127	764	680	722	1100	980	2265	2180	2125	48-42	2325	2230	2150	48-48	2345	2230	2150	48-62
