D371FS-10C,D371FS-16C,D371FS-10Z,D371FS-16Z,D371FS-16P,D371FS-10R,D371FS-16R,衬氟蝶阀
产品型号：D371FS
产品名称：衬氟蝶阀
产品特点：蝶阀是用阀杆一起转动的蝶板作启闭件，用以实现阀门的开启、关闭与调节。蝶阀在管路中除了起切断和截流用外，近年来已经把密封性能作为评价的主要指标，受到市场青睐。另外，蝶阀还有体裁积小、重量轻、结构简单等优点，与同参数闸阀比较，平均减轻重量达30~50%，蝶板旋转90度即可实现启、闭过程，又由于转轴两侧蝶板受介质作用力近似相等，转矩相反，因些启闭力矩较小。
二、主要连接尺寸及重量：
|
公称通径
|
标准值
|
参考值
|
|||||||||
|
DN (mm)
|
NPS (inch)
|
L
|
D
|
D1
|
D2
|
f
|
b
|
Z-φd
|
D0
|
H
|
W(kg)
|
|
PN0.6(MPa)
|
|||||||||||
|
40
|
11/2
|
33
|
130
|
100
|
80
|
3
|
16
|
4-φ14
|
160
|
140
|
2.5
|
|
50
|
2
|
43
|
140
|
110
|
90
|
3
|
16
|
4-φ14
|
200
|
200
|
3.5
|
|
65
|
21/2
|
46
|
160
|
130
|
110
|
3
|
16
|
4-φ14
|
250
|
250
|
4.5
|
|
80
|
3
|
46
|
182
|
150
|
125
|
3
|
18
|
4-φ18
|
250
|
250
|
6
|
|
100
|
4
|
52
|
205
|
170
|
145
|
3
|
18
|
4-φ18
|
300
|
185
|
7.5
|
|
125
|
5
|
56
|
235
|
200
|
175
|
3
|
20
|
8-φ18
|
300
|
203
|
11
|
|
150
|
6
|
56
|
260
|
225
|
200
|
3
|
20
|
8-φ18
|
200
|
225
|
16
|
|
200
|
8
|
60
|
315
|
280
|
255
|
3
|
22
|
8-φ18
|
200
|
275
|
48
|
|
250
|
10
|
68
|
370
|
335
|
310
|
3
|
24
|
12-φ18
|
240
|
315
|
60
|
|
300
|
12
|
78
|
435
|
395
|
362
|
4
|
24
|
12-φ23
|
240
|
348
|
75
|
|
350
|
14
|
78
|
485
|
445
|
412
|
4
|
26
|
12-φ23
|
280
|
415
|
82
|
|
400
|
16
|
102
|
535
|
495
|
462
|
4
|
28
|
16-φ23
|
280
|
460
|
123
|
|
450
|
18
|
114
|
590
|
550
|
518
|
4
|
28
|
16-φ23
|
320
|
500
|
150
|
|
500
|
20
|
127
|
640
|
600
|
568
|
4
|
30
|
16-φ23
|
320
|
530
|
180
|
|
600
|
24
|
154
|
755
|
705
|
670
|
5
|
30
|
20-φ25
|
360
|
610
|
225
|
|
700
|
28
|
165
|
860
|
810
|
775
|
5
|
32
|
24-φ25
|
360
|
675
|
315
|
|
800
|
32
|
190
|
975
|
920
|
880
|
5
|
34
|
24-φ30
|
360
|
805
|
385
|
|
900
|
36
|
203
|
1075
|
1020
|
980
|
5
|
36
|
24-φ30
|
380
|
995
|
420
|
|
1000
|
40
|
216
|
1175
|
1120
|
1080
|
5
|
36
|
28-φ30
|
400
|
1170
|
620
|
|
1200
|
48
|
254
|
1400
|
1340
|
1295
|
5
|
40
|
32-φ40
|
400
|
1295
|
788
|
|
公称通径
|
标准值
|
参考值
|
|||||||||
|
DN (mm)
|
NPS (inch)
|
L
|
D
|
D1
|
D2
|
f
|
b
|
Z-φd
|
D0
|
H
|
W(kg)
|
|
PN1.0(MPa)
|
|||||||||||
|
40
|
11/2
|
33
|
145
|
110
|
85
|
3
|
18
|
4-φ18
|
160
|
140
|
3
|
|
50
|
2
|
43
|
160
|
125
|
100
|
3
|
20
|
4-φ18
|
200
|
200
|
4
|
|
65
|
21/2
|
46
|
180
|
145
|
120
|
3
|
20
|
4-φ18
|
250
|
250
|
6
|
|
80
|
3
|
46
|
195
|
160
|
135
|
3
|
22
|
4-φ18
|
250
|
250
|
8
|
|
100
|
4
|
52
|
215
|
180
|
155
|
3
|
22
|
8-φ18
|
300
|
185
|
12
|
|
125
|
5
|
56
|
245
|
210
|
185
|
3
|
24
|
8-φ18
|
300
|
203
|
18
|
|
150
|
6
|
56
|
280
|
240
|
210
|
3
|
24
|
8-φ23
|
200
|
225
|
28
|
|
200
|
8
|
60
|
335
|
295
|
265
|
3
|
26
|
8-φ23
|
200
|
275
|
56
|
|
250
|
10
|
68
|
390
|
350
|
320
|
3
|
28
|
12-φ23
|
240
|
315
|
72
|
|
300
|
12
|
78
|
440
|
400
|
368
|
4
|
28
|
12-φ23
|
240
|
348
|
88
|
|
350
|
14
|
78
|
500
|
460
|
428
|
4
|
30
|
16-φ23
|
280
|
415
|
170
|
|
400
|
16
|
102
|
565
|
515
|
482
|
4
|
32
|
16-φ25
|
280
|
460
|
145
|
|
450
|
18
|
114
|
615
|
565
|
532
|
4
|
32
|
20-φ25
|
320
|
500
|
165
|
|
500
|
20
|
127
|
670
|
620
|
585
|
4
|
34
|
20-φ30
|
320
|
530
|
195
|
|
600
|
24
|
154
|
780
|
725
|
685
|
5
|
36
|
20-φ30
|
360
|
610
|
268
|
|
700
|
28
|
165
|
895
|
840
|
800
|
5
|
40
|
24-φ30
|
360
|
675
|
320
|
|
800
|
32
|
190
|
1010
|
950
|
905
|
5
|
44
|
24-φ30
|
360
|
805
|
395
|
|
900
|
36
|
203
|
1110
|
1050
|
1005
|
5
|
46
|
28-φ34
|
380
|
995
|
450
|
|
1000
|
40
|
216
|
1220
|
1160
|
1115
|
5
|
50
|
28-φ34
|
400
|
1170
|
680
|
|
1200
|
48
|
254
|
1450
|
1380
|
1325
|
5
|
56
|
32-φ41
|
400
|
1295
|
825
|
|
公称通径
|
标准值
|
参考值
|
|||||||||
|
DN (mm)
|
NPS (inch)
|
L
|
D
|
D1
|
D2
|
f
|
b
|
Z-φd
|
D0
|
H
|
W(kg)
|
|
PN1.6(MPa)
|
|||||||||||
|
40
|
11/2
|
33
|
145
|
110
|
85
|
3
|
18
|
4-φ18
|
200
|
145
|
4
|
|
50
|
2
|
43
|
160
|
125
|
100
|
3
|
20
|
4-φ18
|
200
|
150
|
5
|
|
65
|
21/2
|
46
|
180
|
145
|
120
|
3
|
20
|
4-φ18
|
250
|
160
|
7
|
|
80
|
3
|
46
|
195
|
160
|
135 |
3
|
22
|
8-φ18
|
250
|
170
|
10
|
|
100
|
4
|
52
|
215
|
180
|
155
|
3
|
24
|
8-φ18
|
300
|
185
|
14
|
|
125
|
5
|
56
|
245
|
210
|
185
|
3
|
26
|
8-φ18
|
300
|
210
|
22
|
|
150
|
6
|
56
|
280
|
240
|
210
|
3
|
28
|
8-φ23
|
200
|
230
|
32
|
|
200
|
8
|
60
|
335
|
295
|
265
|
3
|
30
|
12-φ23
|
240
|
285
|
66
|
|
250
|
10
|
68
|
405
|
355
|
320
|
3
|
32
|
12-φ25
|
240
|
325
|
80
|
|
300
|
12
|
78
|
460
|
410
|
375
|
4
|
34
|
12-φ25
|
280
|
360
|
94
|
|
350
|
14
|
78
|
520
|
470
|
435
|
4
|
38
|
16-φ25
|
280
|
430
|
125
|
|
400
|
16
|
102
|
580
|
525
|
485
|
4
|
40
|
16-φ30
|
320
|
475
|
150
|
|
450
|
18
|
114
|
640
|
585
|
545
|
4
|
44
|
20-φ30
|
320
|
525
|
172
|
|
500
|
20
|
127
|
705
|
650
|
608
|
4
|
46
|
20-φ34
|
320
|
565
|
225
|
|
600
|
24
|
154
|
840
|
770
|
718
|
5
|
54
|
24-φ41
|
360
|
620
|
290
|
|
700
|
28
|
165
|
910
|
840
|
788
|
5
|
54
|
24-φ41
|
360
|
686
|
268
|
|
800
|
32
|
190
|
1020
|
950
|
898
|
5
|
54
|
24-φ41
|
380
|
815
|
425
|
|
900
|
36
|
203
|
1120
|
1050
|
998
|
5
|
54
|
28-φ41
|
400
|
1010
|
495
|
|
1000
|
40
|
216
|
1255
|
1170
|
1110
|
5
|
60
|
28-φ48
|
400
|
1185
|
710
|
三、设计规范遵循GB 12238，API 609，MSS SP-67，MSS-68标准：
|
遵循规范 |
STADNARD |
|
设计与制造 |
GB12238 |
|
法兰尺寸 |
JB78/JB79（GB HG Sh） |
|
压力试验 |
GB/T13927 |
|
标志 |
GB12220 |
|
供货 |
GB/T12252 |
四、驱动方式 手动、蜗轮手动、气动、电动：
|
遵循规范 |
STADNARD |
|
设计与制造 |
GB12238 |
|
法兰尺寸 |
JB78/JB79（GB HG Sh） |
|
压力试验 |
GB/T13927 |
|
标志 |
GB12220 |
|
供货 |
GB/T12252 |
|
手动 |
DA71F（半衬） |
蜗轮运动 |
DA71F（半衬） |
|
DA71F3（全衬里） |
DA71F3（全衬里） |
||
|
DA71F4（全衬里） |
DA71F4（全衬里） |
||
|
DA71F46（全衬里） |
DA71F46（全衬里） |
||
|
电动 |
DA671F（半衬） |
电动 |
DA671F（半衬） |
|
DA671F3（全衬里） |
DA671F3（全衬里） |
||
|
DA671F4（全衬里） |
DA671F4（全衬里） |
||
|
DA671F46（全衬里） |
DA671F46（全衬里） |
1、DA71F46全衬里型阀体全体衬里/蝶板全衬层/蝶板与蝶板轴合为一体；
2、DA71F4全衬里型阀体全衬里。虹板全衬层/蝶板与蝶板轴组合装配；
3、DA71F半衬里型阀体全衬里/蝶板为不锈钢（不衬）蝶板与蝶板轴组合装配。
对夹连接蝶阀（中线）设计与制造符合中草药国家标准

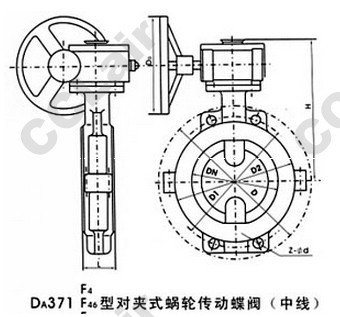

基本结构形式（*蝶板轴与阀体/闪阀座中心重合）
五、主要零部件材料表：
|
序号 |
零件名称 |
灰铸铁 |
铸钢 |
不锈钢 |
超低碳不锈钢 |
||
|
Z |
C |
P |
R |
PL |
RL |
||
|
1 |
上、下阀体、阀盖 |
HT250 |
WCB |
Cf8 |
CF8M |
CF3 |
CF3M |
|
2 |
蝶板 |
WCB |
35（锻） |
Cf8 |
CF8M |
CF3 |
CF3M |
|
3 |
蝶板轴 |
1Cr13 |
2Cr13 |
1Cr18Ni19 |
1Cr18Ni12Mo2Ti |
00CR18N10 |
00Cr17Ni14Mo2 |
|
4 |
衬里层/阀座 |
PTFE（F4）PCTFE（F3）FEP（F46）PFA（可溶F4） |
|||||
|
5 |
O型圈 |
FPM（氟橡胶） |
FPM（氟橡胶） |
||||
|
6 |
张性条（垫） |
SI（硅橡胶） |
SI（硅橡胶） |
||||
|
7 |
调节定位座 |
0Cr18NI9 |
0Cr18NI9 |
1Cr18Ni9Ti |
1Cr18Ni12Mo2Ti |
00CR18N10 |
00Cr17Ni14Mo2 |
|
8 |
螺栓 |
35 |
35 |
1Cr18Ni19 |
1Cr17Ni2 |
1CR18NI9TI |
1Cr18Ni9Ti |
|
9 |
螺母 |
45 |
45 |
0Cr18NI19 |
0Cr18NI9 |
0Cr18NI19 |
0Cr18NI9 |
|
10 |
手柄 |
ZL01（铸造铝合金） |
|||||
