J13W-16P-DN6,J13W-40P-DN10,J13W-160P-DN15,J13W-320P-DN20,J13W-16P-DN25,针型阀
一、J13W-320P DN20内螺纹高压针型阀详细资料：
产品型号：J13W-1.6(42)P型
产品名称：针型阀，内螺纹针型阀，高压针型阀，不锈钢针型阀，内丝针型阀，直通式针型阀，丝扣针型阀，针形阀，针型截止阀，针形阀门，针型阀门。
二、J13W-320P DN20内螺纹高压针型阀主要零件材料：
|
零件名称
Part name
|
阀杆，阀盖
Stem，Bonnet
|
阀杆，阀瓣
Stem，disc
|
填料
Packing
|
|
J13W-16P
|
铬镍不锈钢
Cr. Ni Stainless steel
|
铬镍不锈钢
Cr. Ni Stainless steel
|
聚四氟乙稀，柔性石墨 PTFE，Soft graphite
|
|
J13W-160、J13W-40
|
优质碳钢
High grade carbon steel
|
铬不锈钢
Cr
Stainless steel
|
三、J13W-320P DN20内螺纹高压针型阀主要性能规范：
|
型号
Type
|
公称压力PN Mpa
|
试验压力PS (Mpa)
|
工作压力(Mpa)
|
工作温度(℃)
|
适用介质
|
||
|
壳体
Shell
|
密封(液)Seal
|
密封(气)Seal
|
|||||
|
J13W-16
|
1.6
|
2.4
|
1.76
|
0.6
|
1.6
|
P≤540℃
|
液化石油气水，酸，蒸汽，油品等
|
|
J13W-40P
|
4.0
|
6.0
|
4.4
|
0.6
|
4.0
|
||
|
J13W-160
|
16.0
|
24.0
|
17.6
|
0.6
|
16.0
|
C≤425℃
|
|
|
J13W-320P
|
32.0
|
48.0
|
35.2
|
0.6
|
32.0
|
||

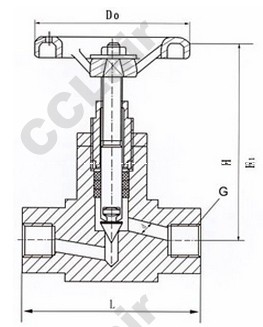

四、J13W-320P DN20内螺纹高压针型阀主要外形及连接尺寸：
|
公称直径DN（mm）
|
管螺纹G Screw thread
|
尺寸 Dimension
|
重量(kg)Weight
|
||||
|
Do
|
L
|
H
|
H1
|
d
|
|||
|
6
|
1/4
|
60
|
55
|
90
|
100
|
4
|
0.63
|
|
10
|
3/8
|
60
|
60
|
92
|
102
|
5
|
0.65
|
|
15
|
1/2
|
65
|
65
|
97
|
107
|
6
|
0.8
|
|
20
|
3/4
|
8
|
80
|
109
|
121
|
8
|
1.07
|
|
25
|
1
|
100
|
90
|
122
|
132
|
10
|
1.8
|
|
32
|
11/4
|
140
|
128
|
180
|
191
|
15
|
5.0
|
|
40
|
11/2
|
160
|
148
|
200
|
215
|
18
|
7.2
|
J13W-16P-DN15,J13W-40P-DN15,J13W-320P-DN15,J13W-16P-DN20,J13W-40P-DN20,J13W-160P-DN20,
J13W-40P-DN25,J13W-160P-DN25,J13W-320P-DN25,J13W-16P-DN32,J13W-40P-DN32,J13W-160P-DN32,
J13W-320P-DN32,J13W-16P-DN40,J13W-40P-DN40,J13W-160P-DN40,J13W-320P-DN40,
