UJ41H-16C,UJ41H-16Y,UJ41H-16P,UJ41H-25P,UJ41H-25R,UJ41H-40C,UJ41H-40Y,UJ41H-40P,金属密封柱塞阀
产品名称：金属密封柱塞阀柱塞截止阀
UJ41H-16C性能规范：
公称压力（PN）：1.6Mpa
低压气密封试验压力：0.6Mpa
强度试验压力（PT）：2.4Mpa
适用介质：蒸汽、油品、水
UJ41H（Y）-25性能规范：
公称压力（PN）：2.5-4Mpa
低压气密封试验压力：0.6Mpa
强度试验压力（PT）：3.75-6Mpa
适用介质：蒸汽、油品、水

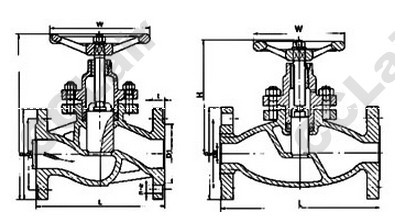

二、金属密封柱塞阀主要连接、结构尺寸：
|
DN(mm) |
UJ41H-16C、Y、P、R |
|||||||||||||||
|
15 |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
350 |
400 |
|
|
L |
130 |
150 |
160 |
180 |
200 |
230 |
290 |
310 |
350 |
400 |
480 |
495 |
622 |
698 |
787 |
914 |
|
H |
170 |
190 |
210 |
250 |
270 |
300 |
340 |
380 |
420 |
450 |
540 |
640 |
740 |
850 |
970 |
1100 |
|
W |
100 |
100 |
120 |
140 |
160 |
180 |
200 |
240 |
270 |
310 |
340 |
400 |
520 |
640 |
760 |
900 |
|
D |
95 |
105 |
115 |
135 |
145 |
160 |
180 |
195 |
215 |
245 |
280 |
335 |
405 |
460 |
520 |
580 |
|
K |
65 |
75 |
85 |
100 |
110 |
125 |
145 |
160 |
180 |
210 |
240 |
295 |
355 |
410 |
470 |
525 |
|
D1 |
45 |
55 |
65 |
78 |
85 |
100 |
120 |
135 |
155 |
185 |
210 |
265 |
320 |
375 |
435 |
485 |
|
t |
14 |
14 |
14 |
16 |
16 |
16 |
18 |
20 |
20 |
22 |
24 |
26 |
30 |
30 |
34 |
36 |
|
n-φ |
4-14 |
4-14 |
4-18 |
4-18 |
4-18 |
4-18 |
4-18 |
8-18 |
8-18 |
8-18 |
8-23 |
12-23 |
12-25 |
12-25 |
16-25 |
16-30 |
|
重量（千克） |
3．5 |
4．5 |
5．5 |
8 |
11．5 |
15 |
21 |
30 |
42 |
55 |
90 |
142 |
210 |
290 |
500 |
- |
|
DN(mm) |
UJ41H（Y）-25C、P、R |
|||||||||||||||
|
15 |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
350 |
400 |
|
|
L |
130 |
150 |
160 |
180 |
200 |
230 |
290 |
310 |
350 |
400 |
480 |
495 |
622 |
698 |
787 |
914 |
|
H |
170 |
190 |
200 |
230 |
260 |
280 |
300 |
370 |
400 |
420 |
510 |
590 |
710 |
830 |
950 |
1080 |
|
W |
100 |
100 |
120 |
140 |
160 |
180 |
200 |
240 |
270 |
310 |
340 |
400 |
520 |
540 |
780 |
900 |
|
D |
95 |
105 |
115 |
135 |
145 |
160 |
180 |
195 |
230 |
270 |
200 |
375 |
445 |
510 |
570 |
655 |
|
K |
65 |
75 |
85 |
100 |
110 |
125 |
145 |
160 |
190 |
220 |
250 |
320 |
385 |
450 |
510 |
585 |
|
D1 |
39 |
50 |
57 |
65 |
75 |
87 |
109 |
120 |
148 |
175 |
203 |
259 |
312 |
363 |
421 |
473 |
|
t |
16 |
16 |
16 |
18 |
18 |
20 |
22 |
22 |
24 |
22 |
30 |
38 |
42 |
46 |
52 |
58 |
|
n-φ |
4-14 |
4-14 |
4-18 |
4-18 |
4-18 |
4-18 |
4-18 |
8-18 |
8-23 |
8-25 |
8-25 |
12-30 |
12-34 |
16-34 |
16-34 |
16-41 |
|
DN(mm) |
UJ41H-40C、Y、P、R |
|||||||||||||||
|
15 |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
350 |
400 |
|
|
L |
130 |
150 |
160 |
180 |
200 |
230 |
290 |
310 |
350 |
400 |
480 |
533 |
622 |
711 |
838 |
914 |
|
H |
170 |
190 |
210 |
250 |
270 |
300 |
340 |
380 |
420 |
460 |
540 |
640 |
740 |
850 |
980 |
1100 |
|
W |
100 |
100 |
120 |
140 |
160 |
180 |
200 |
240 |
280 |
310 |
340 |
400 |
520 |
640 |
760 |
900 |
|
D |
95 |
105 |
115 |
135 |
145 |
160 |
180 |
195 |
230 |
270 |
300 |
360 |
425 |
485 |
550 |
610 |
|
K |
65 |
75 |
85 |
100 |
110 |
125 |
145 |
160 |
190 |
220 |
250 |
310 |
370 |
430 |
490 |
550 |
|
D1 |
45 |
55 |
65 |
78 |
85 |
100 |
120 |
135 |
160 |
188 |
218 |
278 |
332 |
390 |
448 |
505 |
|
t |
16 |
16 |
16 |
18 |
18 |
20 |
22 |
22 |
24 |
28 |
30 |
34 |
36 |
40 |
44 |
48 |
|
n-φ |
4-14 |
4-14 |
4-14 |
4-18 |
4-18 |
4-18 |
8-18 |
8-18 |
8-23 |
8-25 |
8-25 |
12-25 |
12-30 |
16-30 |
16-34 |
16-34 |
|
重量（千克） |
3.5 |
4.5 |
5.5 |
8 |
11.5 |
15 |
21 |
30 |
42.5 |
57 |
91 |
150 |
220 |
300 |
550 |
- |
