UJ11-UJ11SM-15C,UJ11-UJ11SM-25C,UJ11-UJ11SM-25P,UJ11-UJ11SM-40P,UJ11-UJ11SM-15R,内螺纹柱塞阀
产品名称：内螺纹连接柱塞阀
产品特点：内螺纹连接分非金属密封，金属密封两类，此外，外螺纹连接柱塞阀其外形分为Z字形和腰鼓形两大类，其内部结构完全相同，用途一样，主要用在冶金、电业、化工、炼油、食品等行业。压力为16-25kgf/cm2以内，温度为250℃以下的水、蒸汽、油类等小口径管道上作开启、关闭调节流量用。

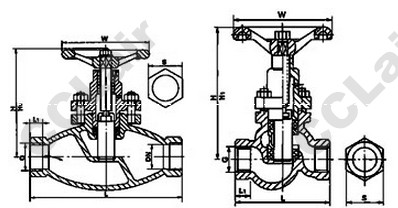

二、内螺纹柱塞阀主要连接、结构尺寸：
|
DN(mm) |
UJ11-UJ11SM-15、25、40C、P、R |
|||||
|
15 |
20 |
25 |
32 |
40 |
50 |
|
|
L |
90 |
100 |
120 |
140 |
170 |
200 |
|
H |
120 |
140 |
165 |
175 |
195 |
213 |
|
H1 |
148 |
175 |
205 |
215 |
246 |
268 |
|
W |
80 |
100 |
120 |
140 |
160 |
180 |
|
G |
1/2'' |
3/4” |
1” |
11/4” |
11/2” |
2” |
|
L1 |
14 |
16 |
18 |
20 |
22 |
24 |
|
S |
32 |
36 |
46 |
55 |
65 |
80 |
|
重量（千克） |
1．5 |
2.5 |
3.5 |
5.5 |
8.5 |
12 |
