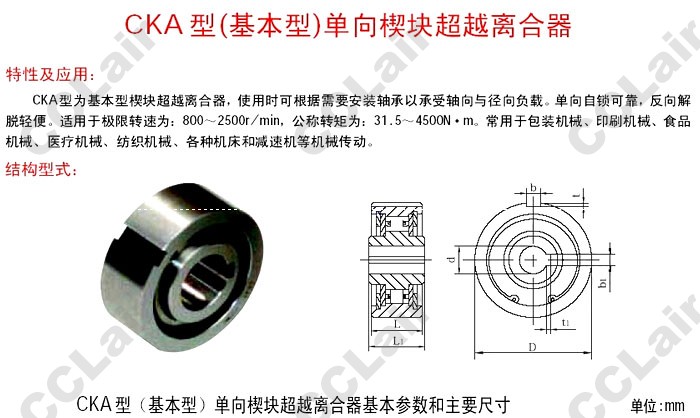

CKA50,CKA52,CKA55,CKA60,CKA63,CKA65,CKA70,CKA72,CKA75,CKA80,CKA90,CKA100,单向楔快式超越离合器

型号	公称转矩 Tn(N·m)	超越时极限转速 n(r/min)	外环			内环			质量m(kg)
			外环			内环
			D(h7)	键槽	L	d(H7)	键槽	L1
			D(h7)	(b×t)	L	d(H7)	(b1×t1)	L1
CKA50×24-10	31.5	2500	50	3×1.8	22	10	3×1.4	24	0.24
CKA50×24-12	31.5	2500	50	3×1.8	22	12	3×1.4	24	0.24
CKA52×24-16	31.5	2250	52	5×1.9	22	16	3×1.4	24	0.27
CKA55×24-18	50	2250	55	4×2.5	22	18	4×1.8	24	0.28
CKA60×22-19	63	2000	60	6×3.5	22	19	6×2.8	22	0.3
CKA60×24-20	63	2000	60	6×3.5	22	20	6×2.8	24	0.33
CKA63×26-24	100	1800	63	6×3.5	24	24	6×2.8	24	0.37
CKA63×26-25	100	1800	63	6×3.5	24	25	6×2.8	26	0.37
CKA63×32-25	140	1800	63	6×3.5	30	25	6×2.8	32	0.48
CKA65×26-24	100	1800	65	6×3.5	24	24	6×2.8	26	0.38
CKA70×32-12	150	1500	70	8×4.0	30	12	3×1.4	32	0.67
CKA70×24-20	150	1500	70	6×3.5	22	20	6×2.8	24	0.62
CKA70×32-25	150	1500	70	8×4.0	30	25	8×3.3	32	0.63
CKA70×32-28	180	1500	70	8×4.0	30	28	8×3.3	32	0.6
CKA72×27-25	180	1500	72	6×3.5	20	25	8×3.3	27	0.54
CKA72×27-25	180	1500	72	L=14	20	25	8×3.3	27	0.54
CKA75×40-25	180	1500	75	8×4.0	30	25	8×3.3	40	0.79
CKA80×32-22	200	1500	80	8×4.0	30	22	6×2.8	32	1.29
CKA80×32-25	200	1500	80	8×4.0	32	25	8×3.3	32	0.9
CKA80×26-30	200	1500	80	8×4.0	26	30	8×3.3	26	0.73
CKA80×32-30	200	1500	80	8×4.0	30	30	8×3.3	32	0.87
CKA80×31-35	200	1500	80	12×4	31	35	10×2.5	31	0.75
CKA85×28-30	200	1500	85	5×3.0	20	30	8×3.3	28	0.83
CKA85×28-30	200	1500	85	L=14	20	30	8×3.3	28	0.83
CKA90×37-25	200	1500	90	8×4.0	37	25	8×3.3	37	1
CKA100×34-28	315	1250	100	10×5	32	28	8×4.3	34	1.15
CKA100×34-32	315	1250	100	10×5	32	32	10×3.3	34	1.25
CKA100×34-35	315	1250	100	10×5	32	35	10×3.3	34	1.34
CKA100×34-38	315	1250	100	10×5	32	38	10×3.3	34	1.28
CKA100×34-40	315	1250	100	10×5	32	40	10×3.3	34	1.2
CKA100×34-40	315	1250	100	L=28	32	40	10×3.3	34	1.2
CKA100×67-40	315	1250	100	8×4.0	25	40	10×3.6	67	1.46
CKA100×67-40	315	1250	100	L=20	25	40	10×3.6	67	1.46
CKA100×31.5-45	315	1250	100	2-8×4	31.5	45	8×3.3	31.5	1.54
CKA105×35-30	315	1250	105	10×5	20	30	8×3.3	35	1.55
CKA105×35-30	315	1250	105	L=16	20	30	8×3.3	35	1.55
CKA105×34-35	315	1250	105	10×5	32	35	10×3.3	34	1.55
CKA105×34-35	315	1250	105	L=26	32	35	10×3.3	34	1.55
CKA105×35-35	315	1250	105	6×3.5	25	35	8×3.3	35	1.56
CKA110×34-30	400	1000	110	10×5	32	30	8×3.3	34	1.82
CKA110×34-35	400	1000	110	10×5	32	35	10×3.3	34	1.82
CKA110×34-38	400	1000	110	10×5	32	38	10×3.3	34	1.67
CKA110×34-40	400	1000	110	10×5	32	40	10×3.3	34	1.91
CKA125×38-50	500	800	125	14×5.5	36	50	14×3.8	38	2.21
CKA130×52-38	500	800	130	12×5.0	50	38	12×3.3	52	3.14
CKA130×55-40	500	800	130	8×4.0	35	40	12×3.3	55	2.62
CKA130×38-45	500	800	130	14×5.5	36	45	14×3.8	38	4.31
CKA130×38-50	500	800	130	14×5.5	36	50	14×3.8	38	3.02
CKA135×38-60	600	800	135	14×5.5	36	60	18×4.4	38	2.65
CKA136×52-35	800	800	136	8-Φ9	50	35	10×3.3	52	4.5
CKA136×52-45	800	800	136	6-M8	52	45	14×3.8	52	4.32
CKA140×55-50	1250	800	140	16×6.0	53	50	16×4.3	55	5.1
CKA140×38-60	1000	800	140	14×5.5	36	60	14×3.0	38	2.74
CKA145×34-45	1000	800	145	6- M10	34	45	12×3.8	34	3.35
CKA160×75-50	1500	800	160	6-M8	72	50	14×3.8	75	7.08
CKA160×55-55	2000	800	160	18×7.0	53	55	16×4.3	55	6.96
CKA160×35-70	1500	800	160	10×5.0	35	70	8×3.3	35	3.46
CKA170×55-60	2240	800	170	18×7.0	52	60	18×4.4	55	7.8
CKA170×55-65	2240	800	170	18×7.0	52	65	18×4.4	55	7.61
CKA180×52-65	2000	800	180	6-M8	52	65	18×4.4	52	7.35
CKA180×55-65	2500	800	180	18×7.0	52	65	18×4.4	55	8.69
CKA190×38-65	2500	800	190	14×5.0	36	85	14×3.8	38	5.5
CKA200×55-65	2800	800	200	20×7.5	53	65	20×3.9	55	11.02
CKA210×88-50	4000	800	210	6-M10	85	50	14×3.8	88	18.52
CKA210×85-75	4000	800	210	6-Φ13	70	75	20×4.9	70	14.25
CKA215×70-75	4500	600	215	6-M12	70	75	20×4.4	70	15
