BCAM1475,BCAM2080,BCAM30100,BCAM45136,BCAM50136,BCAM60180,BCAM70230,BCAM80230,单向超越离合器

BCAM1475,BCAM2080,BCAM30100,BCAM45136,BCAM50136,BCAM60180,BCAM70230,BCAM80230,单向超越离合器

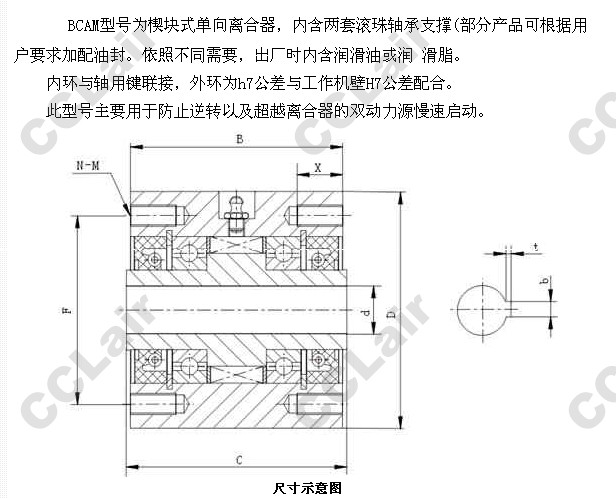

尺寸参数表：

型号 额定 扭矩 (N.m) 外形尺寸 [mm] 重量 [kg] 外环尺寸 内环尺寸 D [h7] B F N-M x d [H7] C bxt BCAM1475 180 75 47 61 4-M6 12 14 47 5x2.3 1.35 BCAM1977 180 77 60 66 4-M6 12 19 63 5x2.3 1.50 BCAM2080 180 80 68 68 4-M6 15 20 70 6x2.8 1.90 BCAM2090 260 90 62 76 6-M6 12 20 62 6x2.8 1.95 BCAM2590 260 90 50 95　 6-M8 12 25 50 8x3.3 1.91 BCAM25110 400 110 68 95 6-M8 20 25 70 10x3.3 4.00 BCAM30100 315 100 68 88 6-M8 12 30 70 8x3.3 3.05 BCAM35100 620 100 78 86 6-M8 20 35 80 10x3.3 3.60 BCAM35110 500 110 70 95 6-M8 16 35 78 10x3.3 5.30 BCAM35120 630 120 90 105 8-M8 20 35 92 10x3.3 6.28 BCAM35130 825 130 85 100 6-M10 25 35 87 10x3.3 7.00 BCAM35136 900 136 92 120 6-M8 20 35 95 10x3.3 8.42 BCAM40115 1115 115 80 100 6-M8 20 40 82 10x3.3 4.89 BCAM40120 1160 120 80 105 6-M8 20 40 82 10x3.3 5.40 BCAM42125 1268 125 90 105 6-M8 20 42 92 12x3.3 6.56 BCAM45125 1000 125 90 110 8-M8 20 45 92 14x3.8 6.13 BCAM45130 1200 130 90 115 8-M8 20 45 92 14x3.8 4.60 BCAM45136 1800 136 92 120 6-M8 20 45 95 12x3.3 8.00 BCAM45140 1585 140 95 120 6-M10 25 45 97 14x3.8 8.78 BCAM45150 1464 150 90 130 6-M10 25 45 92 14x3.8 9.70 BCAM50136 1800 136 92 120 6-M8 20 50 95 14x3.8 7.75 BCAM50145 2000 145 100 130 6-M8 20 50 102 14x3.8 11.65 BCAM50150 2100 150 95 130 6-M10 25 50 97 14x3.8 10.00 BCAM50165 2150 165 95 145 6-M12 25 50 97 14x3.8 12.35 BCAM50180 2500 180 95 158 6-M10 20 50 95 14x3.8 17.50 BCAM55145 2000 145 100 130 6-M8 20 55 102 14x3.8 11.30 BCAM55150 2000 150 100 130 8-M8 20 55 102 16x4.3 12.25 BCAM55160 2300 160 105 140 6-M10 25 55 107 16x4.3 12.50 BCAM60180 2500 180 124 160 6-M10 20 60 124 18x4.4 18.35 BCAM60200 3500 200 115 180 6-M12 25 60 117 20x4.9 22.10 BCAM60230 3570 230 120 205 8-M12 25 60 120 18x4.4 31.50 BCAM65170 2720 170 105 150 6-M10 25 65 107 16x4.3 13.65 BCAM65190 2500 190 124 170 6-M10 25 65 124 18x4.4 24.35 BCAM65200 2600 200 135 175 6-M10 25 65 135 18x4.4 25.00 BCAM65230 3150 230 113 205 8-M12 25 65 113 16x8.0 34.00 BCAM70180 3100 180 110 160 6-M10 25 70 112 20x4.9 16.01 BCAM70190 3200 190 124 170 6-M10 25 70 124 20x4.9 23.95 BCAM70230 3300 230 120 205 8-M12 25 70 120 20x4.9 35.50 BCAM70240 4500 240 122 210 6-M14 30 70 124 22x5.4 35.50 BCAM75230 3150 230 120 205 8-M12 25 75 120 20x4.9 30.00 BCAM75260 5500 260 130 230 6-M16 35 75 132 22x5.4 42.50 BCAM80230 3200 230 120 205 8-M12 25 80 120 22x5.4 29.25 BCAM80245 4000 245 120 217.5 6-M12 25 80 120 22x5.4 35.60 BCAM80300 7000 300 136 265 6-M18 35 80 138 22x5.4 58.50
