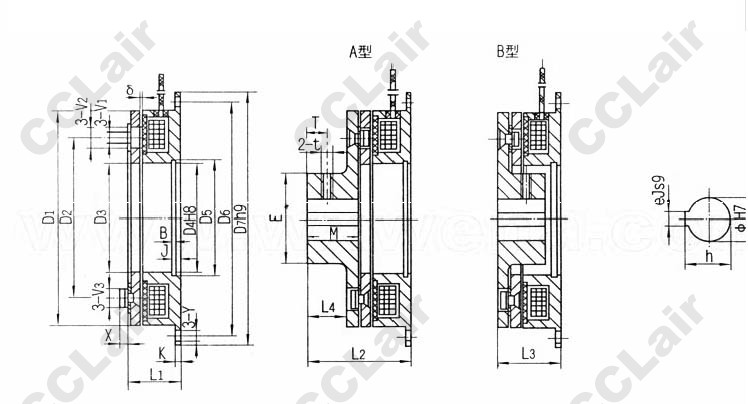

DZD10-0.4,DZD10-1,DZD10-2,DZD10-4,DZD10-8,DZD10-16,DZD10-25,单片电磁制动器
DZD10-0.4A,DZD10-1A,DZD10-2A,DZD10-4A,DZD10-8A,DZD10-16A,DZD10-25A,
DZD10-0.4B,DZD10-1B,DZD10-2B,DZD10-4B,DZD10-8B,DZD10-16B,DZD10-25B,
|
规格 |
额定动力矩 N.m |
静力矩 N.m |
额定电压 D.C.V |
线圈消耗功率(20℃)W |
允许最高转速 r/min |
|
0.4 |
4 |
4.4 |
24 |
12 |
4000 |
|
1 |
10 |
11 |
24 |
16 |
4000 |
|
2 |
20 |
22 |
24 |
20 |
4000 |
|
4 |
40 |
45 |
24 |
25 |
4000 |
|
8 |
80 |
90 |
24 |
38 |
3000 |
|
16 |
160 |
175 |
24 |
45 |
3000 |
|
25 |
250 |
275 |
24 |
49 |
2000 |
|
规格 size |
D1 |
D2 |
D3 |
D4 |
D5 |
D6 |
D7 |
L1 |
L2 |
L3 |
L4 |
M |
J |
|
0.4 |
63 |
46 |
34.5 |
35 |
37 |
72 |
80 |
22.5 |
37.5 |
25.5 |
12 |
15 |
3.5 |
|
1 |
80 |
60 |
41.5 |
42 |
44.5 |
90 |
100 |
24.5 |
44.5 |
28.5 |
16 |
20 |
4.3 |
|
2 |
100 |
76 |
51.5 |
52 |
55 |
112 |
125 |
28 |
53 |
33 |
20 |
25 |
5 |
|
4 |
125 |
95 |
61.5 |
62 |
65 |
137 |
150 |
31 |
61 |
37 |
24 |
30 |
5.5 |
|
8 |
160 |
120 |
79.5 |
80 |
83.5 |
175 |
190 |
35 |
73 |
42 |
31 |
38 |
6 |
|
16 |
200 |
158 |
100 |
100 |
103.5 |
215 |
230 |
41 |
83 |
50 |
33 |
42 |
7 |
|
25 |
241 |
185.5 |
120 |
120 |
124 |
260 |
280 |
48.5 |
98.5 |
60.5 |
38 |
50 |
8 |
|
规格 size |
B |
V1 |
V2 |
V3 |
Y |
X |
K |
E |
T |
t |
φ |
h |
e |
δ |
|
0.4 |
1.7 |
3.1 |
6.3 |
5.5 |
5 |
2 |
2 |
26 |
6 |
M4 |
15 |
17.3 |
5 |
0.2 |
|
1 |
1.7 |
4.1 |
8 |
7.5 |
5.5 |
2.8 |
2.5 |
31 |
8 |
M5 |
15 |
17.3 |
5 |
0.2 |
|
2 |
2.2 |
5.1 |
10.5 |
9 |
6.5 |
3.8 |
3 |
41 |
10 |
M5 |
20 |
22.8 |
6 |
0.2 |
|
4 |
2.2 |
6.1 |
12 |
11 |
6.5 |
5 |
3.5 |
49 |
12 |
M6 |
25 |
28.3 |
8 |
0.3 |
|
8 |
2.7 |
8.1 |
15 |
14 |
9 |
6 |
4 |
65 |
15 |
M8 |
30 |
33.3 |
8 |
0.3 |
|
16 |
2.7 |
10.2 |
20 |
18.5 |
9 |
8 |
5 |
83 |
16 |
M8 |
45 |
48.8 |
14 |
0.5 |
|
25 |
3.2 |
10.2 |
20 |
18.5 |
11 |
8 |
6 |
100 |
18 |
M10 |
55 |
59.3 |
16 |
0.5 |
