34DO-B6C-T,34BO-B6C-T,24BO-B6C-T,24DO-B6C-T,34EO-B6C-T,23DO-B6C-T,
24DM-B10C-TZY1,34DM-B10C-TZY1,24DM-B10C-TZZY1,电磁换向阀
34DM-B10C-TZZY1,24DM-B10C-TY1,34DM-B10C-TY1,电磁换向阀
24EM-B10C-TZY1,34EM-B10C-TZY1,24EM-B10C-TZZY1,电磁换向阀
34EM-B10C-TZZY1,24EM-B10C-TY1,34EM-B10C-TY1,电磁换向阀
24BM-B10C-TZY1,34BM-B10C-TZY1,24BM-B10C-TZZY1,电磁换向阀
34BM-B10C-TZZY1,24BM-B10C-TY1,34BM-B10C-TY1,电磁换向阀

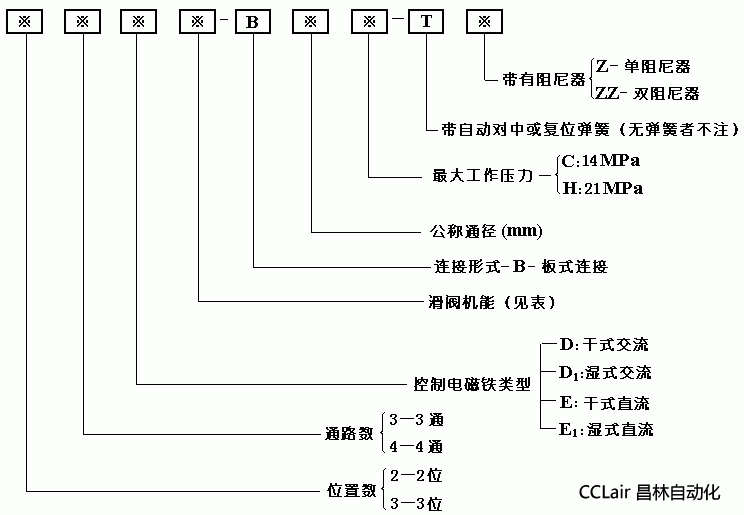

型号意义
技术规格
| 型 号 |
通 径 /mm |
压力
/MPa |
流量
/（L/min) |
允许背压
/MPa |
电源电压
/V |
质量
/kg |
|
|
6 | 14 | 7 | <6.3 | 交流110，
220， 380 |
4 |
|
34D※-B6C-T※ |
6 | 14 | 7 | <6.3 | 5 | |
|
24D※-B10H-※※ |
10 | 21 | 30 | <7 | 4.7 | |
|
|
10 | 21 | 30 | <7 | 4.7 | |
|
34D※-B10H-T※ |
10 | 21 | 30 | <7 | 5.7 | |
|
24D1※-B10H※※ |
10 | 21 | 30 | <6.3 | 5.7 | |
|
34D1※-B10H-T※ |
10 | 21 | 30 | <6.3 | 5.7 | |
|
24E1※-B10H-※※ |
10 | 21 | 30 | <6.3 | 直流 24，12，110 | 4.7 |
|
34E1※-B10H-T※ |
10 | 21 | 30 | <6.3 | 5.7 | |
| 生产厂 |
- |
|||||

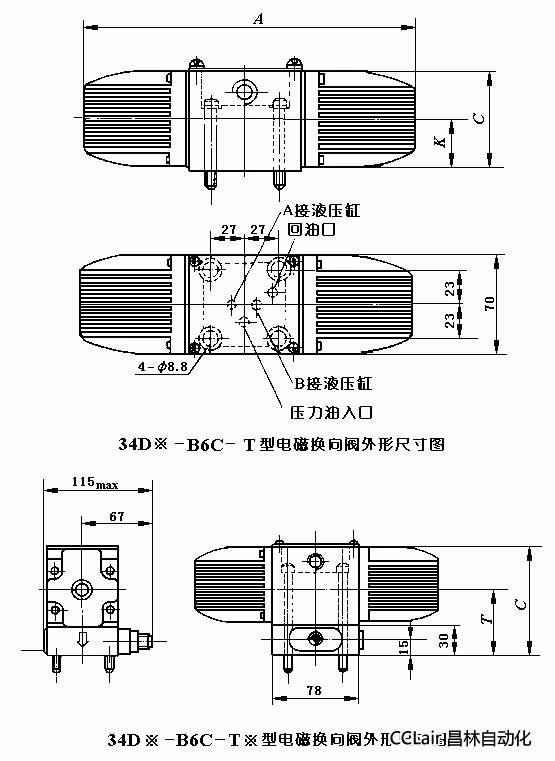

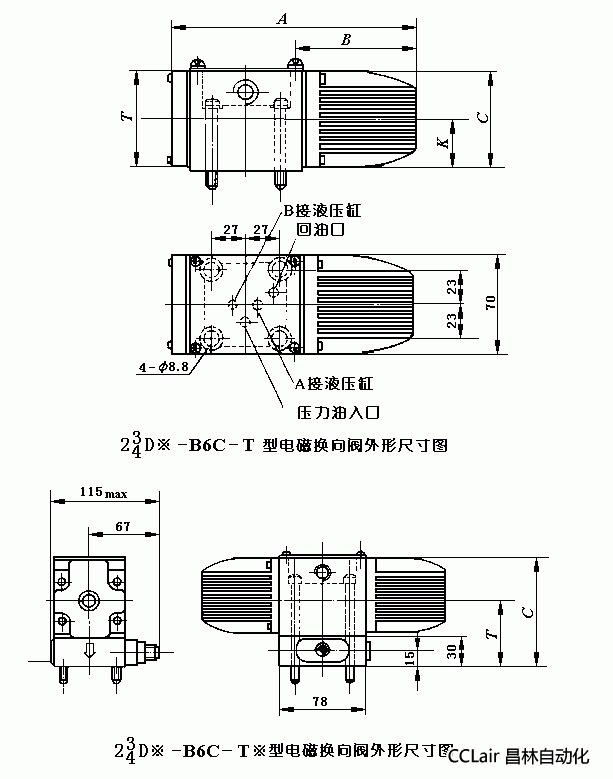

外形尺寸
| 型 号 | 尺寸/mm | ||||
| A | B | C | K | T | |
|
|
189 | 133 | 74 | 36 | 52 |
|
|
- | - | 104 | - | 66 |
|
34D※-B6C-T |
266 | - | 74 | 36 | 52 |
|
34D※-B6C-T※ |
- | - | 104 | - | 66 |
| 型号 | 尺寸/mm | |||||||||||||||||||||
| A1 | A2 | A3 | B1 | B2 | B3 | C1 | C2 | C3 | S1 | S2 | S3 | S4 | S5 | S6 | S7 | T1 | T2 | T3 | T4 | T5 | K | |
| 34D※-B10H-T | 92 | - | 280 | - | 70 | - | 75 | - | 86 | 19 | 3 | 17 | 27 | 37 | 51 | 54 | 12 | 6.5 | 21.5 | 32.5 | 46 | 35 |
| 24D※-B10H | ||||||||||||||||||||||
 |
211 | - | ||||||||||||||||||||
| 34D※-B10H-TZZ | - | 280 | 7 | 109 | 105 | 116 | ||||||||||||||||
| 34D※-B10H-TZ | 5 | 107 | ||||||||||||||||||||
 |
5 | 107 | ||||||||||||||||||||
| 24D※-B10H-ZZ | 7 | 109 | ||||||||||||||||||||
| 24D※-B10H-TZ | 211 | - | 5 | 107 | ||||||||||||||||||
|
型号 |
尺寸/mm | |||||||||||||||||||||
| A1 | A2 | A3 | B1 | B2 | B3 | C1 | C2 | C3 | S1 | S2 | S3 | S4 | S5 | S6 | S7 | T1 | T2 | T3 | T4 | T5 | K | |
| 34※1-B10H-T | 92 |
- |
272 | - | 70 | - | 103 | - | 114 | 19 | 3 | 17 | 27 | 37 | 51 | 54 | 12 | 6.5 | 21.5 | 23.5 | 46 | 35 |
| 24※1-B10H | ||||||||||||||||||||||
|
24※1※-B10H-T |
192 | - | ||||||||||||||||||||
| 34※1※-B10H-TZZ | - | 272 | 7 | 109 | 133 | 144 | ||||||||||||||||
| 34※1※-B10H-TZ | 5 | 107 | ||||||||||||||||||||
| 24※1-B10H-Z | 5 | 107 | ||||||||||||||||||||
| 24※1-B10H-ZZ | 7 | 109 | ||||||||||||||||||||
| 24※-B10H-TZ | 192 | - | 5 | 107 | ||||||||||||||||||
| 24※1※-B10H-TZZ | 7 | 109 | ||||||||||||||||||||

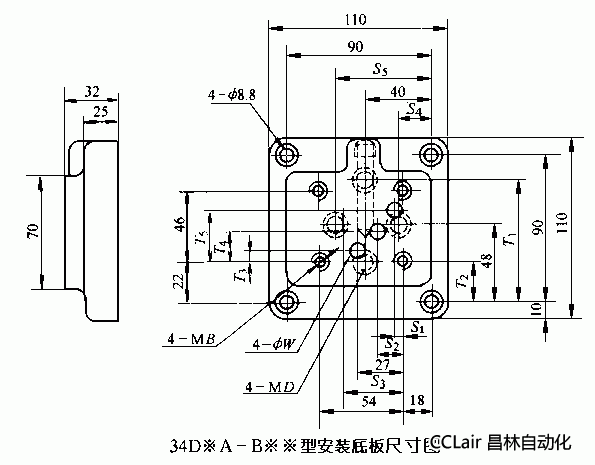

安装底板
| 型 号 | 尺寸/mm | |||||||||||
| D | ΦW | S1 | S2 | S3 | S4 | S5 | T1 | T2 | T3 | T4 | T5 | |
| 34D※A-B6C | 14×1.5 | 6.5 | 4 | 18 | 36 | 18 | 59 | 75 | 26 | 9 | 23 | 31 |
| 34D※A-B10H | 18×1.5 | 10 | 3 | 17 | 37 | 16 | 62 | 76 | 20 | 6.5 | 21.5 | 32.5 |
