XC5404-04,XC5404-06,XC5404-08,气控阀

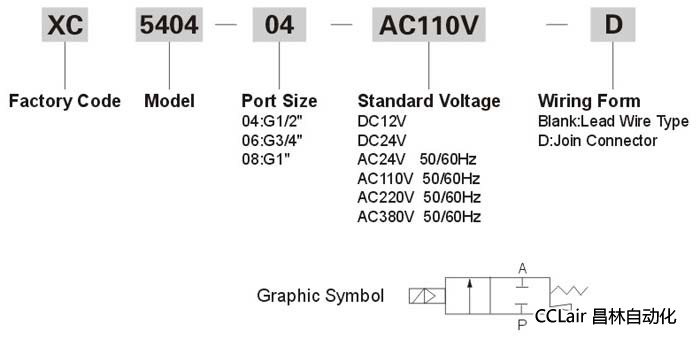

订购码
产品规格
|
Model
|
XC5404-04
|
XC5404-06
|
XC5404-08
|
|
Working Medium
|
Air, Water, Oil, Gas |
||
|
Motion Pattern
|
Guide Type |
||
|
Type
|
Normal Close Type
|
||
|
Working-pressure(kgf/cm )
|
Gas:1~50,Liguid:1~50
|
Gas:1~40,Liguid:01~25
|
Gas:1~40, ?Liguid:1~25
|
|
Max. Pressure Resistance(kgf/cm2)
|
75
|
60
|
|
|
Control Pressure Rang
|
0.3~0.6MPa
|
||
|
(mm)Aperture of Flow Rate
|
12
|
20
|
25
|
|
KV Value
|
2.0 |
5.0 |
10.0 |
|
Joint Pipe Bore
|
G1/2" |
G3/4" |
G1" |
|
Operating Temperature Range
|
-5~+150 |
||
|
Voltage Range
|
±10%
|
||
|
Protect Class Power
|
IP65
|
||
|
Consumption
|
AC:5.5VA DC:9W
|
||
|
Insulation
|
F Class
|
||
|
Material of Body |
Brass |
||
|
Material of Oil Seal |
PTFE
|
||
外形尺寸
