PBGD40-100,PBGD40-100A,PBGD40-125,PBGD40-125A,PBGD40-160,屏蔽立式离心泵

点击图片查看原图

型号: PBGD40-100,PBGD40-100A,PBGD40-125,PBGD40-125A,PBGD40-160,
PDF下载: 如需产品详细说明请与销售客服联系
浏览次数: 632
询价

公司基本资料信息
详细说明
PBGD40-100,PBGD40-100A,PBGD40-125,PBGD40-125A,PBGD40-160,屏蔽立式离心泵
PBGD40-160A,PBGD40-160B,PBGD40-200,PBGD40-200A,PBGD40-200B
PBGD40-250,PBGD40-250A,PBGD40-250B,PBGD40-100(I),PBGD40-100(I)A
PBGD40-125(I),PBGD40-125(I)A,PBGD40-160(I),PBGD40-160(I)A,PBGD40-160(I)B
PBGD40-200(I),PBGD40-200(I)A,PBGD40-200(I)B,PBGD40-250(I),PBGD40-250(I)A

性能特点

高效节能、运行平稳、振动小、极低噪音、管道式结构、安装方便、占地面积小、特别是对振动、噪音要求高的场所使用。
应用范围
重重点工程、泵房、中央空调、宾馆、学校、医院等等。
技术参数
口口径:φ20~φ350mm 流量:2.5~800m3/h 扬程:7~100m
转速:970~2900r/min 功率:0.37~110kw

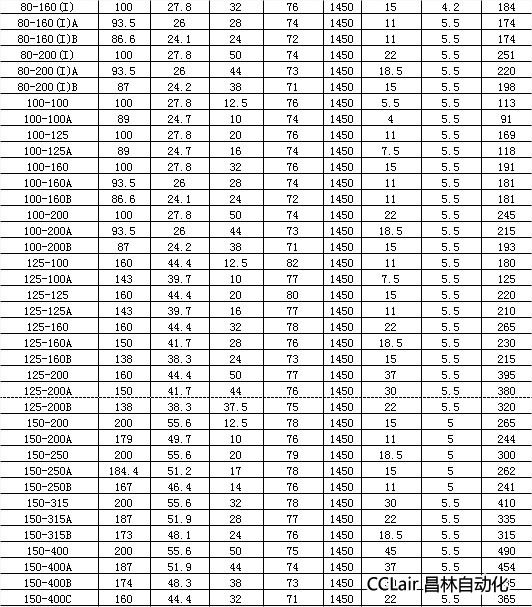

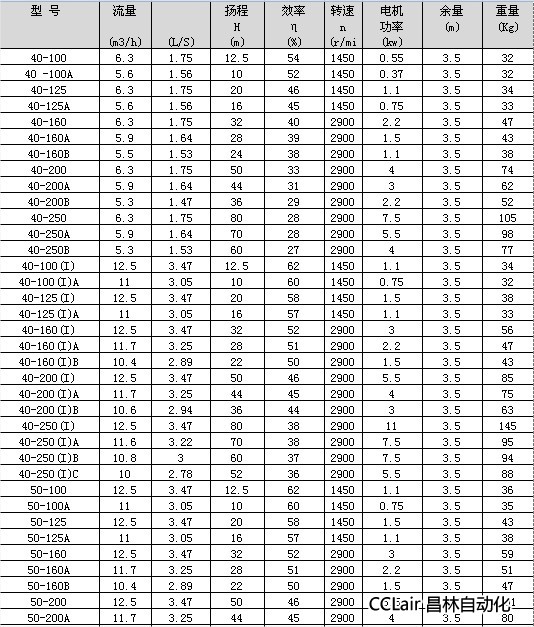

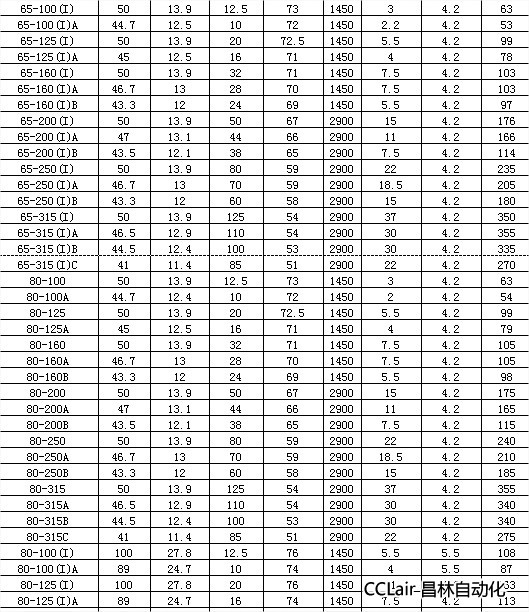

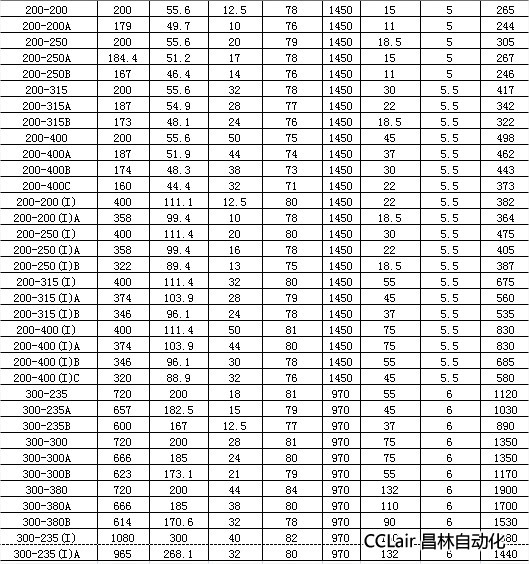

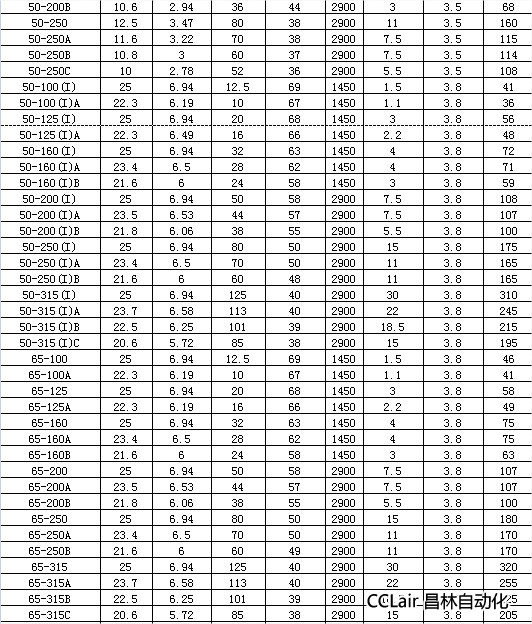

性能参数






PBGD40-250(I)B,PBGD40-250(I)C,PBGD50-100,PBGD50-100A,PBGD50-125
PBGD50-125A,PBGD50-160,PBGD50-160A,PBGD50-160B,PBGD50-200,PBGD300-380B
PBGD50-200A,PBGD50-200B,PBGD50-250,PBGD50-250A,PBGD50-250B
PBGD50-250C,PBGD50-100(I),PBGD50-100(I)A,PBGD50-125(I),PBGD50-125(I)A
PBGD50-160(I),PBGD50-160(I)A,PBGD50-160(I)B,PBGD50-200(I),PBGD50-200(I)A
PBGD50-200(I)B,PBGD50-250(I),PBGD50-250(I)A,PBGD50-250(I)B,PBGD50-315(I)
PBGD50-315(I)A,PBGD50-315(I)B,PBGD50-315(I)C,PBGD65-100,PBGD65-100A
PBGD65-125,PBGD65-125A,PBGD65-160,PBGD65-160A,PBGD65-160B,PBGD300-235(I)
PBGD65-200,PBGD65-200A,PBGD65-200B,PBGD65-250,PBGD65-250A
PBGD65-250B,PBGD65-315,PBGD65-315A,PBGD65-315B,PBGD65-315C
PBGD65-100(I),PBGD65-100(I)A,PBGD65-125(I),PBGD65-125(I)A,PBGD65-160(I)
PBGD65-160(I)A,PBGD65-160(I)B,PBGD65-200(I),PBGD65-200(I)A,PBGD65-200(I)B
PBGD65-250(I),PBGD65-250(I)A,PBGD65-250(I)B,PBGD65-315(I),PBGD65-315(I)A
PBGD65-315(I)B,PBGD65-315(I)C,PBGD80-100,PBGD80-100A,PBGD80-125
PBGD80-125A,PBGD80-160,PBGD80-160A,PBGD80-160B,PBGD80-200
PBGD80-200A,PBGD80-200B,PBGD80-250,PBGD80-250A,PBGD80-250B
PBGD80-315,PBGD80-315A,PBGD80-315B,PBGD80-315C,PBGD80-100(I)
PBGD80-100(I)A,PBGD80-125(I),PBGD80-125(I)A,PBGD80-160(I),PBGD80-160(I)A
PBGD80-160(I)B,PBGD80-200(I),PBGD80-200(I)A,PBGD80-200(I)B,PBGD100-100
PBGD100-100A,PBGD100-125,PBGD100-125A,PBGD100-160,PBGD100-160A
PBGD100-160B,PBGD100-200,PBGD100-200A,PBGD100-200B,PBGD125-100
PBGD125-100A,PBGD125-125,PBGD125-125A,PBGD125-160,PBGD125-160A
PBGD125-160B,PBGD125-200,PBGD125-200A,PBGD125-200B,PBGD150-200
PBGD150-200A,PBGD150-250,PBGD150-250A,PBGD150-250B,PBGD150-315
PBGD150-315A,PBGD150-315B,PBGD150-400,PBGD150-400A,PBGD150-400B
PBGD150-400C,PBGD200-200,PBGD200-200A,PBGD200-250,PBGD200-250A
PBGD200-250B,PBGD200-315,PBGD200-315A,PBGD200-315B,PBGD200-400
PBGD200-400A,PBGD200-400B,PBGD200-400C,PBGD200-200(I),PBGD200-200(I)A
PBGD200-250(I),PBGD200-250(I)A,PBGD200-250(I)B,PBGD200-315(I),PBGD300-235(I)A
PBGD200-315(I)A,PBGD200-315(I)B,PBGD200-400(I),PBGD200-400(I)A,
PBGD200-400(I)C,PBGD300-235,PBGD300-235A,PBGD300-235B,PBGD300-300
PBGD200-400(I)B,PBGD300-300A,PBGD300-300B,PBGD300-380,PBGD300-380A
