SB65-50-135,SB65-50-132,SB65-50-167,SB80-65-125,SB80-65-135,
SB80-65-146,SB80-65-156,SB80-65-167,SB100-80-130,SB100-80-146,
SB100-80-152,SB100-80-165,SB100-80-169,SB125-100-125,SB125-100-130,
SB125-100-150,SB125-100-167,SB125-100-167A,SB80-50-165,SB80-50-180,
SB80-50-190,SB80-50-200,SB80-50-210,SB80-50-230,SB80-50-250,
主要用途：
SB型单级单吸清水离心泵是空调和制冷系统的最理想用泵并可作为消防给水的专用水泵，本系列中必需的水泵耐压力为1.6MPa。
性能指标：
流量Q 20-480(立方米/h)
扬程H 14.7-103(m)
进口直径φ50-φ200(mm)
电动机功率3-75(KW)
空调泵型号意义：

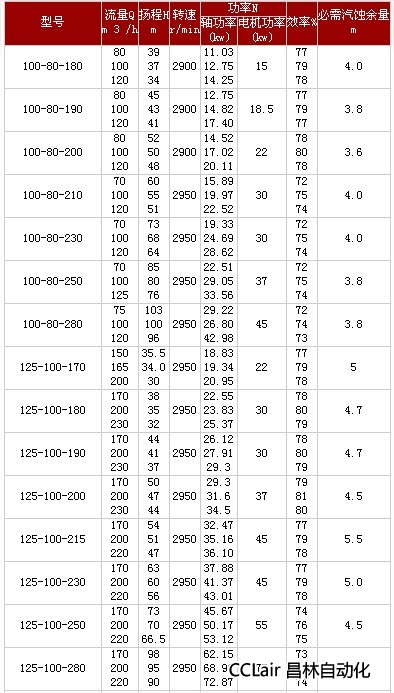

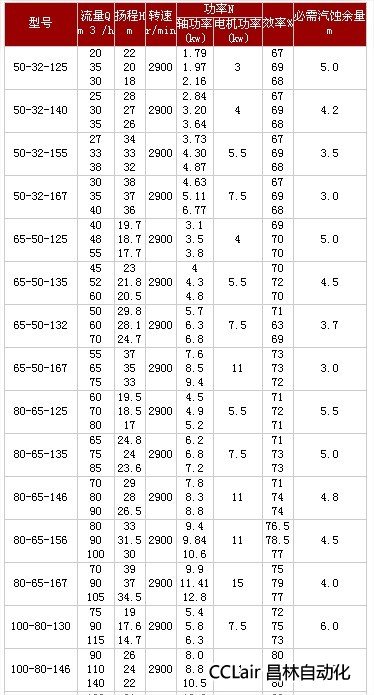

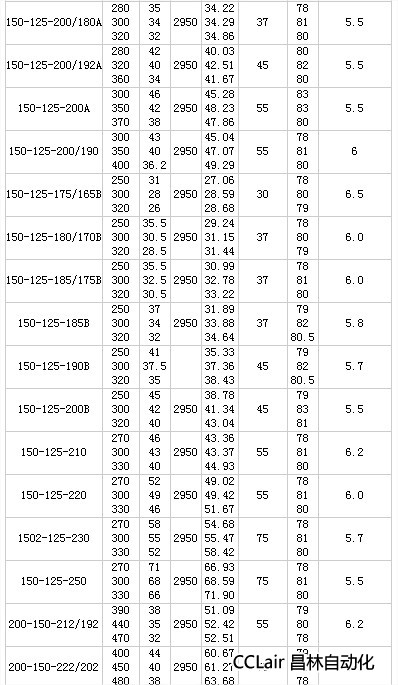

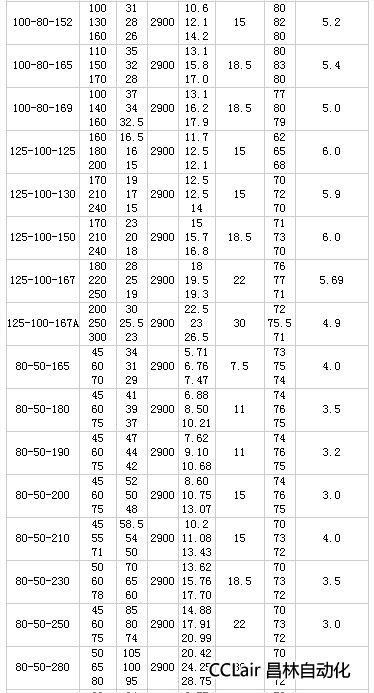

具体参数：
SB80-50-280,SB100-80-165A,SB100-80-180,SB100-80-190,SB100-80-200,
SB100-80-230,SB100-80-250,SB100-80-280,SB125-100-170,SB125-100-180,
SB125-100-190,SB100-80-210,SB125-100-200,SB125-100-215,SB125-100-230,
SB125-100-250,SB125-100-280,SB150-125-200/180A,SB150-125-200/192A,
SB150-125-200A,SB150-125-200/190,SB150-125-175/165B,
SB150-125-185/175B,SB150-125-185B,SB150-125-190B,SB150-125-200B,
SB150-125-210,SB150-125-220,SB1502-125-230,SB150-125-250,
SB200-150-212/192,SB200-150-222/202,SB200-150-222,SB150-125-180/170B,
