技术规格
名 称 | 型 号 | 通 径 |
流量 /(L/min) |
压力范围 /MPa |
||||
螺纹连接 | 质量/kg | 板式连接 | 质量/kg | /mm | /in | |||
减压阀 及 单向减压阀 |
JF-L10※ | 3.5 | JF-B10※ | 4.2 | 10 | 3/8 | 20(40) |
|
JDF-L10※ | 4.2 | JDF-B10※ | 4.8 | |||||
JF-L20※ | 5.6 | JF-B20※ | 7 | 20 | 3/4 | 50(100) | ||
JDF-L20※ | 5.6 | JDF-B20※ | 7 | |||||
JF-L32※ | 11.6 | JF-B32※ | 11.5 | 32 | 1 1/4 | 150 | ||
JDF-L32※ | 13.1 | JDF-B32※ | 13.3 | |||||
生产厂 |
- |

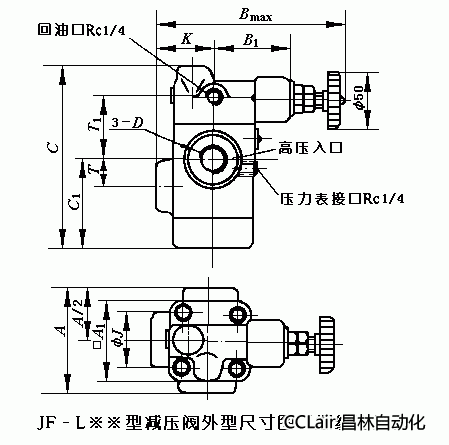

外形尺寸
尺寸/mm | 通径10 | 通径20 | 通径32 |
A | 80 | 96 | 110 |
A1 | 60 | 70 | 96 |
B最大 | 158.5 | 164 | 184 |
B1 | 70 | 65 | 65 |
C | 117 | 172 | 201 |
C1 | 51 | 89 | 112 |
D | G 3/8 | G 3/4 | G1 1/4 |
ΦJ | 30 | 46 | 80 |
K | 40 | 50 | 70 |
T | 15 | 25 | 29 |
T1 | 54 | 57 | 63 |

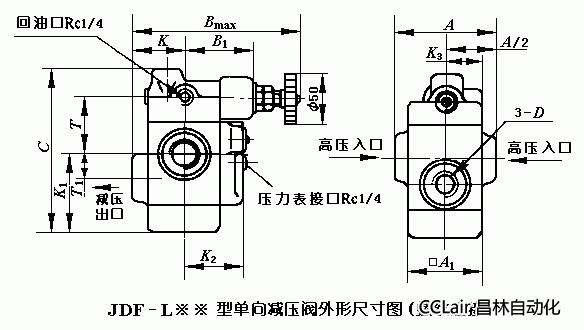

尺寸/mm | 通径10 | 通径20 | 通径32 |
A | 80 | 96 | 94 |
□A1 | 60 | 70 | 94 |
B最大 | 158.5 | 164 | 184 |
B1 | 70 | 65 | 65 |
C | 117 | 172 | 201 |
D | G 3/8 | G 3/4 | G1 1/4 |
K | 40 | 50 | 71 |
K1 | 51 | 89 | 112 |
K2 | 49 | 58 | 88 |
K3 | 33 | 35 | 47 |
T | 54 | 57 | 63 |
T1 | 15 | 25 | 22 |

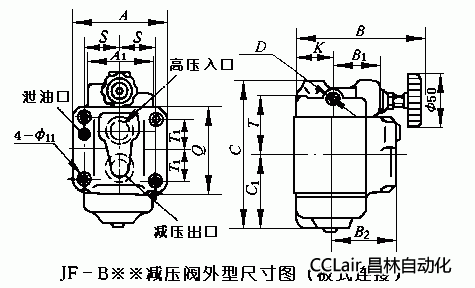

型号 | 尺寸/mm | ||||||||||||
A | A1 | B | B1 | B2 | C | C1 | D | K | Q | S | T | T1 | |
JF-B10※ | 90 | 60×60 | 153.5 | 69.5 | 49 | 117 | 49.5 | M14×1.5 | 35 | 67 | 55 | 21 | 34 |
JF-B20※ | 102 | 70×70 | 154 | 65 | 58 | 172 | 81 | M14×1.5 | 40 | 86 | 65 | 30 | 40 |

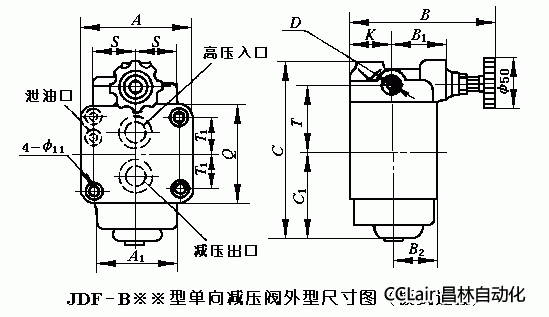

型号 | 尺寸/mm | ||||||||||||
A | A1 | B | B1 | B2 | C | C1 | D | K | Q | T | T1 | S | |
JDF-B10※ | 90 | 60 | 153.5 | 69.5 | 30 | 117 | 49.5 | M14×1.5 | 35 | 67 | 34 | 55.5 | 21 |
JDF-B20※ | 102 | 70 | 154 | 65 | 35 | 172 | 81 | M14×1.5 | 40 | 86 | 40 | 65 | 30 |

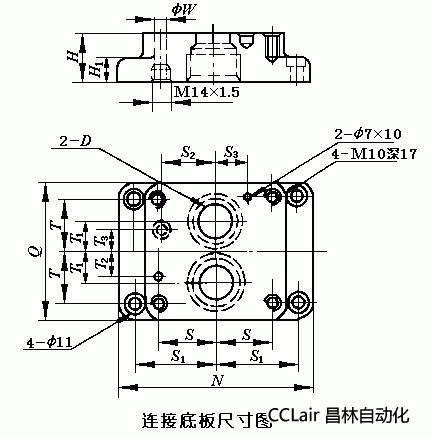

型号 | 尺寸/mm | ||||||||||||||
A | D | H | H1 | N | Q | S | S1 | S2 | S3 | T | T1 | T2 | T3 | W | |
JFA-B10 | 90 | M22×1.5 | 20 | 18 | 132 | 64 | 34 | 55 | 25 | 20 | 21 | 15 | 7 | 7 | 5 |
JFA-B20 | 102 | M33×2 | 26 | 20 | 146 | 85 | 40 | 62 | 33 | 24 | 31 | 19 | 14.5 | 9 | 11 |
