GAB410-2-1,GAB410-2-2,GAB410-2-3,GAB410-2-4,AB-GAB 二位二通多用途(管式/板式)电磁阀,生产厂家,价格
产品特点：
AB,GAB多用途电磁阀是引进日本CKD公司产品，适用于多种介质(空气、煤气、水各种油类）及真空控制，性能好，寿命长，应用范围广。
型号说明：G AB 3 10 — — — — ︳ ︳ ︳ ︳ ︳ ︳ ︳ ︳ 板接式：G 二位二通 系列编号 10为常闭型 管接螺纹编号 通径编号 阀体.密封件 电压规格 管接式：不标 3为小规格 材料组合代号 4为大规格
图形符号：
技术参数：
| 项目/型号 | 接管 | 公称通径 | CV值 | 有效截面积 | 最高工作压差(MPa) | ||||||
| 螺纹 | mm | mm2 | 空气 | 水、煤油 | 油(50cst) | 蒸气 | |||||
| AC | DC | AC | DC | AC | DC | DC | |||||
| AB310-1-1 | ZG1/8 | 1.5 | 0.1 | 1.8 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 0.1 |
| AB310-1-2 | 2 | 0.15 | 2.7 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1 | |
| AB310-1-3 | 3 | 0.31 | 6.2 | 1.06 | 0.5 | 0.7 | 0.5 | 0.5 | 0.5 | 0.7 | |
| AB310-1-4 | 3.5 | 0.42 | 8.2 | 0.6 | 0.4 | 0.5 | 0.4 | 0.4 | 0.4 | 0.5 | |
| AB310-1-5 | 4 | 0.54 | 10.5 | 0.4 | 0.25 | 0.3 | 0.25 | 0.25 | 0.25 | 0.3 | |
| AB310-1-6 | 5 | 0.8 | 15.3 | 0.2 | 0.15 | 0.15 | 0.15 | 0.15 | 0.15 | 0.15 | |
| AB310-2-1 | ZG1/4 | 1.5 | 0.1 | 1.8 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 0.1 |
| AB310-2-2 | 2 | 0.15 | 2.7 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1 | |
| AB310-2-3 | 3 | 0.31 | 6.2 | 1.06 | 0.5 | 0.7 | 0.5 | 0.5 | 0.5 | 0.7 | |
| AB310-2-4 | 3.5 | 0.42 | 8.2 | 0.6 | 0.4 | 0.5 | 0.4 | 0.4 | 0.4 | 0.5 | |
| AB310-2-5 | 4 | 0.54 | 10.5 | 0.4 | 0.25 | 0.3 | 0.25 | 0.25 | 0.25 | 0.3 | |
| AB310-2-6 | 5 | 0.8 | 15.3 | 0.2 | 0.15 | 0.15 | 0.15 | 0.15 | 0.15 | 0.15 | |
| AB410-2-1 | ZG1/4 | 1.5 | 0.1 | 1.8 | 5 | 4 | 4.5 | 4 | 4 | 4 | 1 |
| AB410-2-2 | 2 | 0.15 | 2.7 | 3 | 2.5 | 2.7 | 2.5 | 2.5 | 2.5 | 1 | |
| AB410-2-3 | 3 | 0.31 | 6.2 | 1.5 | 0.9 | 1.3 | 0.9 | 0.9 | 0.9 | 1.3 | |
| AB410-2-4 | 3.5 | 0.42 | 8.2 | 1.2 | 0.6 | 0.9 | 0.6 | 0.6 | 0.6 | 0.9 | |
| AB410-2-5 | 4 | 0.54 | 10.5 | 1 | 0.5 | 0.7 | 0.5 | 0.5 | 0.5 | 0.7 | |
| AB410-2-6 | 5 | 0.8 | 15.3 | 0.6 | 0.25 | 0.4 | 0.25 | 0.25 | 0.25 | 0.4 | |
| AB410-2-7 | 7 | 1 | 26.4 | 0.25 | 0.1 | 0.2 | 0.1 | 0.1 | 0.1 | 0.2 | |
| AB410-3-1 | ZG3/8 | 1.5 | 0.1 | 1.8 | 5 | 4 | 4.5 | 4 | 4 | 4 | 1 |
| AAB410-3-2 | 2 | 0.15 | 2.7 | 3 | 2.5 | 2.7 | 2.5 | 2.5 | 2.5 | 1 | |
| AB410-3-3 | 3 | 0.31 | 6.2 | 1.5 | 0.9 | 1.3 | 0.9 | 0.9 | 0.9 | 1.3 | |
| AB410-3-4 | 3.5 | 0.42 | 8.2 | 1.2 | 0.6 | 0.9 | 0.6 | 0.6 | 0.6 | 0.9 | |
| AB410-3-5 | 4 | 0.54 | 10.5 | 1 | 0.5 | 0.7 | 0.5 | 0.5 | 0.5 | 0.7 | |
| AB410-3-6 | 5 | 0.8 | 15.3 | 0.6 | 0.25 | 0.4 | 0.25 | 0.25 | 0.25 | 0.4 | |
| AB410-3-7 | 7 | 1 | 26.4 | 0.25 | 0.1 | 0.2 | 0.1 | 0.1 | 0.1 | 0.2 | |
| AB410-3-8 | ZG3/8 | 10 | 1.88 | 40.6 | 0.1 | 0.05 | 0.1 | 0.05 | 0.05 | 0.05 | - |
| AB410-4-8 | ZG1/2 | 10 | 1.88 | 40.6 | 0.1 | 0.05 | 0.1 | 0.05 | 0.05 | 0.05 | - |
| 项目 | AB310 GAB310 | AB410 GAB410 | |||||||||
| 额定电压(V) | AC:110,220,24, DC:12,24,48,100 | ||||||||||
| 频率(Hz) | 50 | 60 | 50 | 60 | |||||||
| 视在功率(VA) | 起动时 | 20 | 16 | 35 | 27 | ||||||
| 保持 | 14 | 11 | 22 | 17 | |||||||
| 消耗功率(W) | AC | 6 | 4.2 | 8.3 | 6.2 | ||||||
| DC | 11 | 11 | 11 | 11 | |||||||
| 许可电压范围 | ±10% | ||||||||||

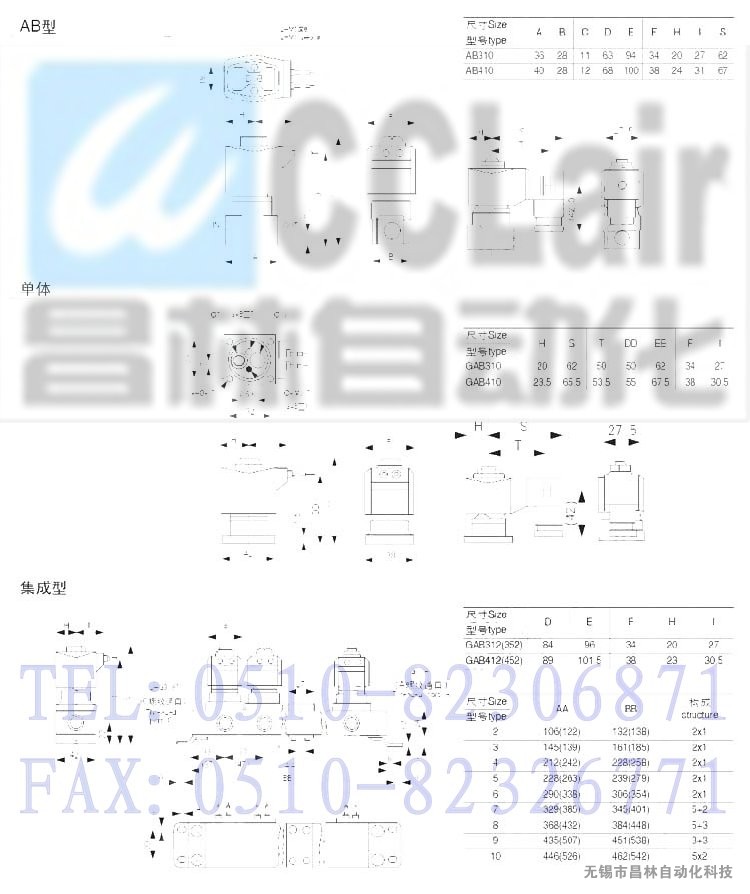

外形尺寸：
GAB410-2-1,GAB410-2-2,GAB410-2-3,GAB410-2-4
