KB2Y10-02S,KB2Y10-03S,KB2Y10-04S,KB2Y12-02S,KB2Y12-03S,KB2Y12-04S,T形外螺接头

KB2Y10-02S,KB2Y10-03S,KB2Y10-04S,KB2Y12-02S,KB2Y12-03S,KB2Y12-04S,T形外螺接头,价格

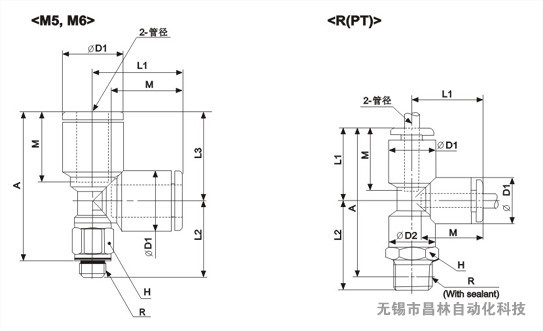

MODEL	管径	R	H	φD1	φD2	L1	L2	L3	A	M	CT(mm2)	重量
KB2Y04-M5	4	M5×0.8	7	9.3	--	15.6	13.7	14.8	25.4	12.7	4.5	3.5
KB2Y04-M6		M6×1.0	8				14.7					6
KB2Y04-01S		1/8	10	10.4	10	18	22	--	36	16	6.4	13
KB2Y04-02S		1/4	14				26		38			19
KB2Y06-M5	6	M5×0.8	7	11.6	--	17.1	14.7	17.1	28.7	13.5	4.5	4.5
KB2Y06-M6		M6×1.0	8				15.7					7
KB2Y06-01S		1/8	10	12.8	10	20	23	--	39	17	13.4	12
KB2Y06-02S		1/4	14				27		41			20
KB2Y06-03S		3/8	17				29		42.5			34
KB2Y08-01S	8	1/8	12	15.2	12	23	24.5	--	43.5	18.5	25.6	14
KB2Y08-02S		1/4	14				28.5		45.5			22
KB2Y08-03S		3/8	17				30.5		47			36
KB2Y10-01S	10	1/8	17	18.5	17	5.6	27	--	49.5	21	40.0	31
KB2Y10-02S		1/4					30		50.5			29
KB2Y10-03S		3/8					32		52			39
KB2Y10-04S		1/2	22				36		54.5			66
KB2Y12-02S	12	1/4	17	20.9	17	28.5	31	--	53.5	22	57.4	31
KB2Y12-03S		3/8					33		55			41
KB2Y12-04S		1/2	22				37		57.5			68
