KB2W04-M5,KB2W04-01S,KB2W04-02S,KB2W06-M5,KB2W06-01S,KB2W06-02S,KB2W06-03S,外螺加长外接头

KB2W04-M5,KB2W04-01S,KB2W04-02S,KB2W06-M5,KB2W06-01S,KB2W06-02S,KB2W06-03S,外螺加长外接头,价格

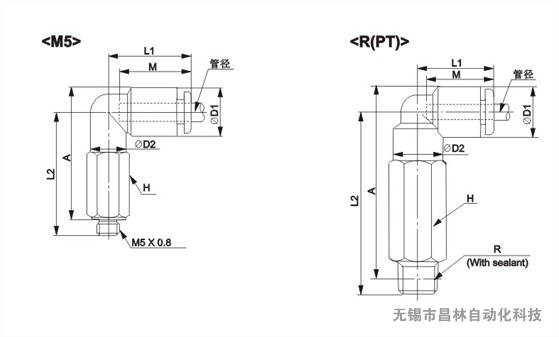

MODEL	管径	R	H	φD1	φD2	L1	L2	A	M	CT(mm2)	重量
KB2W04-M5	4	M5×0.8	8	10.4	8	18	30	32	16	3.0	11
KB2W04-01S		1/8	10		10		37.5	38.5		4.0	23
KB2W04-02S		1/4	14				43.5	42.5			38
KB2W06-M5	6	M5×0.8	8	12.8	8	20	30.5	33.5	17	3	11
KB2W06-01S		1/8	10		10		40	42.5		10.9	26
KB2W06-02S		1/4	14				46	46.5			41
KB2W06-03S		3/8	17				48	48			67
KB2W08-01S	8	1/8	12	15.2	12	23	43.5	47	18.5	20.5	30
KB2W08-02S		1/4	14				49.5	51			47
KB2W08-03S		3/8	17				51.5	52.5			74
KB2W10-02S	10	1/4	17	18.5	17	26.5	56.5	59.5	21	33.5	66
KB2W10-03S		3/8					58.5	61			76
KB2W10-04S		1/2	22				65	66			145
KB2W12-02S	12	1/4	17	20.9	17	28.5	57.5	62	22	47.7	68
KB2W12-03S		3/8					59.5	63.5			78
KB2W12-04S		1/2	22				66	68.5			147
