KB2V08-01S,KB2V08-02S,KB2V08-03S,KB2V10-02S,KB2V10-03S,KB2V12-03S,KB2V12-04S,单头外六角外螺接头

KB2V08-01S,KB2V08-02S,KB2V08-03S,KB2V10-02S,KB2V10-03S,KB2V12-03S,KB2V12-04S,单头外六角外螺接头,价格

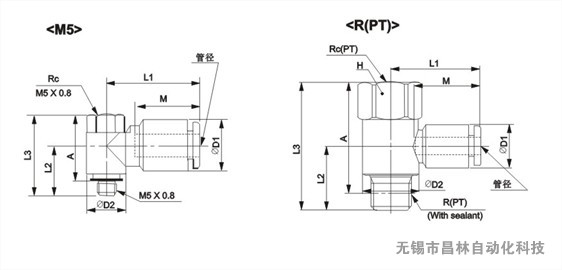

MODEL	管径	Rc(PT)	H	φD1	φD2	L1	L2	L3	A	M	重量
KB2V04-M5	4	M5×0.8	8	10.4	9.8	20.5	11	20	16	16	3
KB2V04-01S		1/8	14		13.4	22	15.5	29.5	25.5		19
KB2V06-M5	6	M5×0.8	8	12.8	9.8	23.5	12.5	20	16	17	7
KB2V06-01S		M6×1.0	14		13.4	24.5	15.5	29.5	25.5		19
KB2V06-02S		1/8	17		17.6	25	20	38.5	32.5		36
KB2V08-01S	8	1/4	17	15.2	17.6	28.5	17	31	27	18.5	29
KB2V08-02S		3/8					20	38.5	32.5		37
KB2V08-03S		1/8	22		25.2	29.5	25.5	45.5	39		66
KB2V10-02S	10	1/4	19	18.5	20.6	31.5	22	41	39	21	48
KB2V10-03S		3/8	22		25.0		24.5	45.5	39		68
KB2V12-03S	12	1/4	22	20.9	25.0	34	24.5	45.5	39	22	70
KB2V12-04S		3/8	24		27	35	25.5	50	42		93
