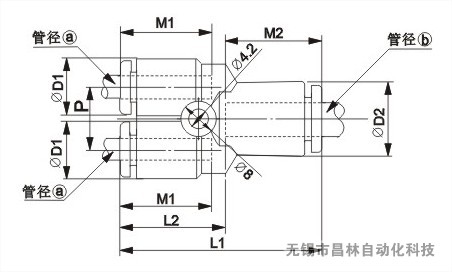

KB2U04-06,KB2U06-08,KB2U08-010,KB2U10-12,变径U形接头,价格
| MODEL | 管径 | φD1 | φD2 | L1 | L2 | P | M | CT(mm2) | 重量 | |
| a | b | |||||||||
| KB2U04-06 | 4 | 6 | 10.4 | 12.8 | 35 | 18 | 10.4 | 16 | 4.2 | 6 |
| KB2U06-08 | 6 | 8 | 12.8 | 15.2 | 39.5 | 20 | 12.8 | 17 | 13.4 | 11 |
| KB2U08-010 | 8 | 10 | 15.2 | 18.5 | 45 | 24.5 | 15.2 | 18.5 | 25.6 | 18 |
| KB2U10-12 | 10 | 12 | 18.5 | 20.9 | 49 | 27.5 | 18.5 | 21 | 40 | 27 |
