KB2U04-00,KB2U06-00,KB2U08-00,KB2U10-00,KB2U12-00,等径U形接头,价格

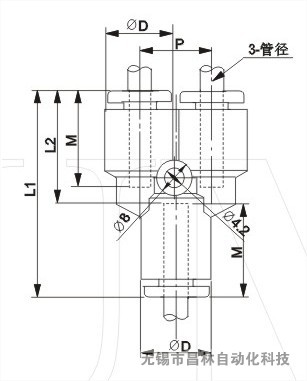

| MODEL | 管径 | φD | L1 | L2 | P | M | CT(mm2) | 重量 |
| KB2U04-00 | 4 | 10.4 | 34 | 18 | 10.4 | 16 | 4.2 | 7 |
| KB2U06-00 | 6 | 12.8 | 37 | 20 | 12.8 | 17 | 13.4 | 9 |
| KB2U08-00 | 8 | 15.2 | 42.5 | 24.5 | 15.2 | 18.5 | 25.6 | 11 |
| KB2U10-00 | 10 | 18.5 | 48 | 27.5 | 18.5 | 21 | 40 | 16 |
| KB2U12-00 | 12 | 20.9 | 51 | 30 | 20.9 | 22 | 57.4 | 23 |
