KB2U04-M5,KB2U04-M6,KB2U04-01S,KB2U04-02S,KB2U06-M5,外螺U型接头,价格

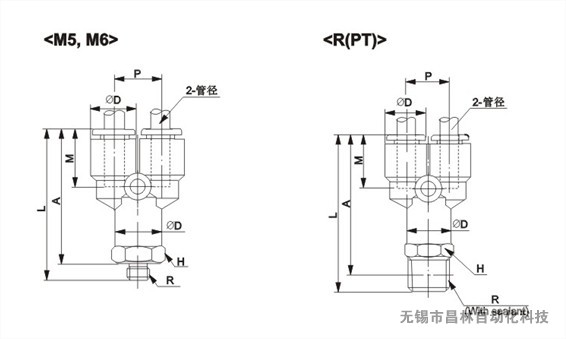

| MODEL | 管径 | R | H | φD | L | P | A | M | CT(mm2) | 重量 |
| KB2U04-M5 | 4 | M5×0.8 | 11 | 10.4 | 39.5 | 10.4 | 36 | 16 | 2.2 | 4 |
| KB2U04-M6 | M6×1.0 | 40 | 10 | |||||||
| KB2U04-01S | 1/8 | 42 | 38 | 4.2 | 11 | |||||
| KB2U04-02S | 6 | 1/4 | 14 | 46 | 40 | 20 | ||||
| KB2U06-M5 | M5×0.8 | 13 | 12.8 | 42.5 | 12.8 | 39 | 17 | 2.2 | 12 | |
| KB2U06-M6 | M6×1.0 | 43 | ||||||||
| KB2U06-01S | 1/8 | 45.5 | 41.5 | 13.4 | 11 | |||||
| KB2U06-02S | 1/4 | 14 | 49 | 43 | 21 | |||||
| KB2U06-03S | 8 | 3/8 | 17 | 51 | 44.5 | 34 | ||||
| KB2U08-01S | 1/8 | 17 | 15.2 | 52.5 | 15.2 | 48.5 | 18.5 | 25.6 | 15 | |
| KB2U08-02S | 1/4 | 55.5 | 48.5 | 23 | ||||||
| KB2U08-03S | 3/8 | 56.5 | 50 | 35 | ||||||
| KB2U10-02S | 10 | 1/4 | 19 | 18.5 | 61 | 18.5 | 55 | 21 | 40 | 30 |
| KB2U10-03S | 3/8 | 62 | 55.5 | 40 | ||||||
| KB2U10-04S | 12 | 1/2 | 22 | 65 | 57 | 65 | ||||
| KB2U12-02S | 1/4 | 22 | 20.9 | 64.5 | 20.9 | 58.5 | 22 | 57.4 | 32 | |
| KB2U12-03S | 3/8 | 65.5 | 59 | 40 | ||||||
| KB2U12-04S | 1/2 | 68.5 | 60.5 | 65 |
