KB2T04-M5,KB2T04-M6,KB2T04-01S,KB2T04-02S,KB2T06-M5,T型外螺接头,价格

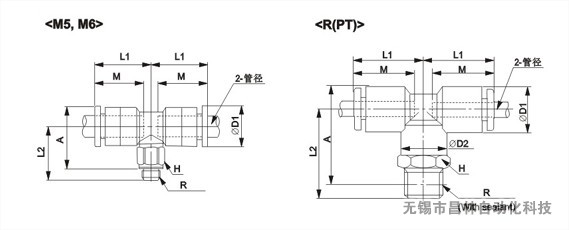

| MODEL | 管径 | R | H | φD1 | φD2 | L1 | L2 | A | M | CT(mm2) | 重量 |
| KB2T04-M5 | 4 | M5×0.8 | 7 | 9.3 | -- | 15.6 | 13.7 | 15.3 | 12.7 | 4.5 | 3.5 |
| KB2T04-M6 | M6×1.0 | 8 | 14.7 | 4.4 | |||||||
| KB2T04-01S | 1/8 | 10 | 10.4 | 10 | 18 | 22 | 23 | 16 | 6.0 | 13 | |
| KB2T04-02S | 1/4 | 14 | 26 | 25 | 19 | ||||||
| KB2T06-M5 | 6 | M5×0.8 | 7 | 11.6 | -- | 16.1 | 14.7 | 17.4 | 13.5 | 4.5 | 4.4 |
| KB2T06-M6 | M6×1.0 | 8 | 15.7 | 5.3 | |||||||
| KB2T06-01S | 1/8 | 10 | 12.8 | 10 | 20 | 23 | 25.5 | 17 | 13.9 | 12 | |
| KB2T06-02S | 1/4 | 14 | 27 | 27.5 | 20 | ||||||
| KB2T06-03S | 3/8 | 17 | 29 | 29 | 34 | ||||||
| KB2T08-01S | 8 | 1/8 | 12 | 15.2 | 12 | 23 | 24.5 | 28 | 18.5 | 26.3 | 14 |
| KB2T08-02S | 1/4 | 14 | 28.5 | 30 | 22 | ||||||
| KB2T08-03S | 3/8 | 17 | 30.5 | 31.5 | 36 | ||||||
| KB2T10-01S | 10 | 1/8 | 17 | 18.5 | 17 | 26.5 | 27 | 32 | 21 | 40.8 | 31 |
| KB2T10-02S | 1/4 | 30 | 33 | 29 | |||||||
| KB2T10-03S | 3/8 | 32 | 345.5 | 39 | |||||||
| KB2T10-04S | 1/2 | 22 | 36 | 37 | 66 | ||||||
| KB2T12-02S | 12 | 1/4 | 17 | 20.9 | 17 | 28.5 | 31 | 39.5 | 22 | 57.2 | 31 |
| KB2T12-03S | 3/8 | 33 | 41 | ||||||||
| KB2T12-04S | 1/2 | 22 | 37 | 68 |
