KB2S04-M5,KB2S04-M6,KB2S04-01S,KB2S06-M5,KB2S06-M6,外螺内六角直接头,价格

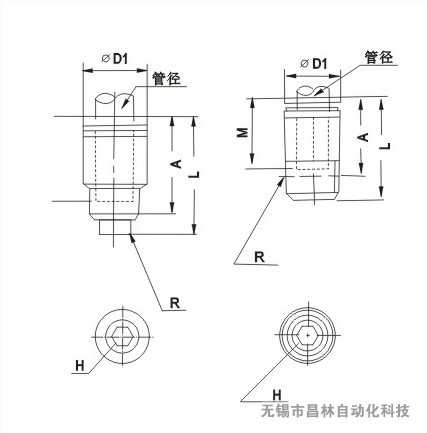

| MODEL | R | 管径 | H | φD1 | L | A | M | CT(mm2) | 重量 |
| KB2S04-M5 | M5×0.8 | 4 | 2.5 | 8 | 18.7 | 15.6 | 12.7 | 4 | 2.7 |
| KB2S04-M6 | M6×1.0 | 3 | 18.2 | 14.1 | 2.8 | ||||
| KB2S04-01S | 1/8 | 9.8 | 23 | 19 | 16 | 4.1 | 8 | ||
| KB2S06-M5 | M5×0.8 | 6 | 2.5 | 10 | 19.5 | 16.4 | 13.5 | 4 | 3.3 |
| KB2S06-M6 | M6×1.0 | 3 | 15 | 3.4 | |||||
| KB2S06-01S | 1/8 | 4 | 11.8 | 19.1 | 20 | 17 | 10 | 9 | |
| KB2S06-02S | 1/4 | 13.8 | 24 | 19 | 10.7 | 15 | |||
| KB2S08-01S | 1/8 | 8 | 5 | 14 | 28 | 24 | 18.5 | 17.2 | 12 |
| KB2S08-02S | 1/4 | 6 | 25.5 | 19.5 | 23.3 | 11 | |||
| KB2S08-03S | 3/8 | 17 | 27.5 | 21 | 24 | ||||
| KB2S10-01S | 1/8 | 10 | 4 | 17 | 30 | 26 | 21 | 17.2 | 18 |
| KB2S10-02S | 1/4 | 8 | 17 | 27.5 | 21.5 | 39 | 12 | ||
| KB2S10-03S | 3/8 | 21 | 19 | ||||||
| KB2S10-04S | 1/2 | 8 | 22 | 28 | 20 | 35 | |||
| KB2S12-02S | 1/4 | 12 | 8 | 19 | 33.5 | 27.5 | 22 | 46 | 23 |
| KB2S12-03S | 3/8 | 10 | 29 | 22.5 | 60 | 18 | |||
| KB2S12-04S | 1/2 | 22 | 28 | 20 | 30 |
