KQ2D08-02S,KQ2D08-03S,KQ2D10-02S,KQ2D10-03S,KQ2D10-04S,正三通接头,价格
| MODEL |
管径 |
R |
H |
φD |
L1 |
L2 |
A |
M |
Q |
CT(mm2) |
重量 |
| KQ2D04-M5 |
4 |
M5×0.8 |
11 |
10.4 |
18.5 |
24 |
25.5 |
16 |
8.7 |
2.2 |
10 |
| KQ2D04-M6 |
M6×1.0 |
24.5 |
4.3 |
| KQ2D04-01S |
1/8 |
26.5 |
27.5 |
6.0 |
12 |
| KQ2D04-02S |
1/4 |
14 |
30.5 |
29.5 |
21 |
| KQ2D06-M5 |
6 |
M5×0.8 |
13 |
12.8 |
20.5 |
26 |
28.5 |
17 |
9.9 |
4.3 |
12 |
| KQ2D06-M6 |
M6×1.0 |
26.5 |
| KQ2D06-01S |
1/8 |
29 |
31.5 |
13.9 |
14 |
| KQ2D06-02S |
1/4 |
14 |
32.5 |
33 |
21 |
| KQ2D06-03S |
3/8 |
17 |
34.5 |
34.5 |
34 |
| KQ2D08-01S |
8 |
1/8 |
17 |
15.2 |
23.5 |
33.5 |
37 |
18.5 |
11.1 |
26.3 |
26 |
| KQ2D08-02S |
1/4 |
36.5 |
38 |
| KQ2D08-03S |
3/8 |
37.5 |
38.5 |
35 |
| KQ2D10-02S |
10 |
1/4 |
19 |
18.2 |
26.5 |
39.5 |
43 |
21 |
12.8 |
40.8 |
39 |
| KQ2D10-03S |
3/8 |
40.5 |
43.5 |
40 |
| KQ2D10-04S |
1/2 |
22 |
44 |
45 |
62 |
| KQ2D12-02S |
12 |
1/4 |
22 |
20.9 |
28.5 |
42 |
46.5 |
22 |
13.9 |
57.2 |
55 |
| KQ2D12-03S |
3/8 |
43 |
47 |
56 |
| KQ2D12-04S |
1/2 |
|
46 |
48.5 |
63 |

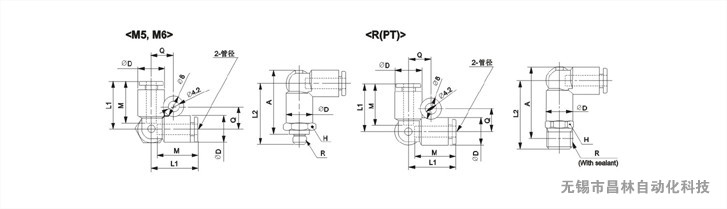

点击图片查看原图
