该袋状过滤器内置网面积比一般网增加了三倍，降低了流量阻力，提高了性能等特点。
The bag filter built-in network than the averagenetwork has increased threefold,reducing the flowresistance,improved performance and so on.

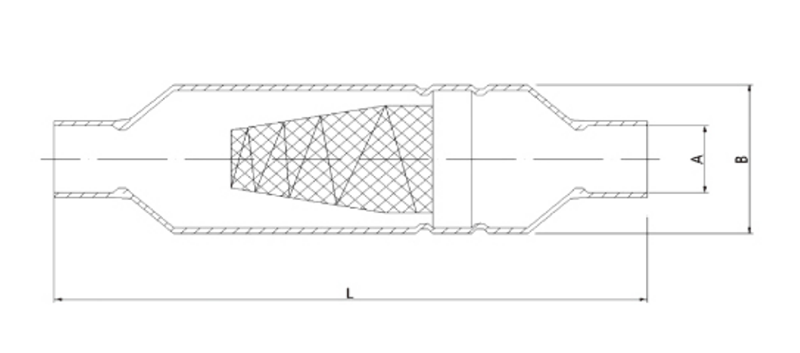

| I 技术参数 Specifications | ||||
| 型号 | 接口尺寸 A | 总长 L | 材料 B | 袋状网目数 |
| Type | Interface size | Length | Material | Pocket Network Mesh Number |
| THG-9.6 | Ф9.7 | 120 | TP2Ф32x1 | 80 |
| THG-12.7 | Ф12.8 | 120 | TP2Ф32x1 | 80 |
| THG-16 | Ф16.2 | 120 | TP2Ф32x1 | 80 |
| THG-19 | Ф19.2 | 120 | TP2Ф32x1 | 80 |
| THG-22 | Ф22.3 | 130 | TP2Ф45x1.6 | 80 |
| THG-28 | Ф28.7 | 130 | TP2Ф45x1.6 | 80 |
| THG-35 | Ф35.2 | 130 | TP2Ф45x1.6 | 80 |
| THG-42 | Ф42.0 | 220 | TP2Ф66x2.0 | 60 |
| THG-54 | Ф54.0 | 220 | TP2Ф66x2.0 | 60 |
THG-19
