Q642Y-150-300LBR-DN65,Q642Y-150-300LBR-DN80,Q642Y-150-300LBR-DN100,Q642Y-150-300LBR-DN125,Q642Y-150-300LBR-DN150,Q642Y-150-300LBR-DN200,120度角气动Y型三通球阀
气动Y型三通球阀的阀座密封根据工况不同，可分别采用软密封、喷焊镍基合金（硬度大于HRC60）、超音速涂钨钴合金（硬度大于HRC70）及特种硬化材料等多种先进工艺，适用各种苛刻工况，软密封适用200℃以下工况，硬密封碳钢不超过425℃，不锈钢不超过℃

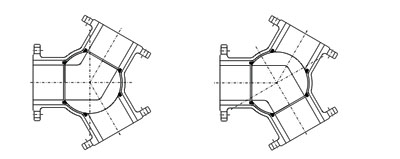

Y型三通球阀有相互成120°和两通孔成135°，根据需要可实现对介质流向切换两种工况。
型号、材料及主要参数
产品型号 | Q42F-10-40C | Q42F-10-40P | Q42F-10-40R |
Q42Y-150-300LBC | Q42Y-150-300LBP | Q42Y-150-300LBR | |
阀体 | WCB | CF8 | CF8M |
球体 | WVB+ENP | CF8 | CF8M |
阀杆/固定圈 | 2Cr13 | 304 | 316 |
阀座 | PTFE | PTFE | PTFE |
填料 | PTFE+O形圈 | PTFE+O形圈 | |
适用介质 | 水、油、蒸汽等 | 酸等腐蚀性介质 | |
适用温度 | -29-150℃ | -29-150℃ | |
蜗轮Y型三通球阀 | Q后插入“3”表示，示例：Q342F-16C | ||
气动Y型三通球阀 | Q后插入“6”表示，示例：Q642F-10C | ||
电动Y型三通球阀 | Q后插入“9”表示，示例：Q942F-16P | ||
Y形三通球阀的外形尺寸PN10-40
公称通径DN | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 |
L | 75 | 75 | 90 | 100 | 110 | 120 | 130 | 140 | 160 | 190 | 220 | 275 |
H | 90 | 90 | 102 | 115 | 135 | 140 | 155 | 185 | 210 | 275 | 305 | 335 |
