KF700-FAA1-1-A-A-80,KF700-FAA2-2-A-B-100,KF700-FAA4-3-A-C-125,KF700-FAB3-4-B-A-150,电磁流量计

点击图片查看原图

型号：	KF700-FAA1-1-A-A-80,KF700-FAA2-2-A-B-100,KF700-FAA4-3-A-C-125,KF700-FAB3-4-B-A-150,电磁流量计
PDF下载：	如需产品详细说明请与销售客服联系
浏览次数：	1002

公司基本资料信息

联系人销售员(女士)
电话13861877712
地区江苏-无锡市
地址无锡市会北路28-135

详细说明

KF700-FAA1-1-A-A-10,KF700-FAA2-2-A-B-15,KF700-FAA4-3-A-C-20,KF700-FAB3-4-B-A-25,电磁流量计
KF700-FAA1-5-B-B-32,KF700-FAA2-6-B-C-40,KF700-FAA4-7-C-A-50,KF700-FAB3-8-C-B-65,电磁流量计
KF700-FAA1-1-A-A-80,KF700-FAA2-2-A-B-100,KF700-FAA4-3-A-C-125,KF700-FAB3-4-B-A-150,电磁流量计
KF700-FAA1-5-B-B-200,KF700-FAA2-6-B-C-250,KF700-FAA4-7-C-A-300,KF700-FAB3-8-C-B-350,电磁流量计
KF700-FAA1-1-A-A-400,KF700-FAA2-2-A-B-450,KF700-FAA4-3-A-C-500,KF700-FAB3-4-B-A-600,电磁流量计
KF700-FAA1-5-B-B-700,KF700-FAA2-6-B-C-800,KF700-FAA4-7-C-A-900,KF700-FAB3-8-C-B-1000,电磁流量计
KF700-FAA1-1-A-A-1200,KF700-FAA2-2-A-B-1400,KF700-FAA4-3-A-C-1600,KF700-FAB3-4-B-A-1800,电磁流量计
KF700-FAA1-5-B-B-2000,电磁流量计

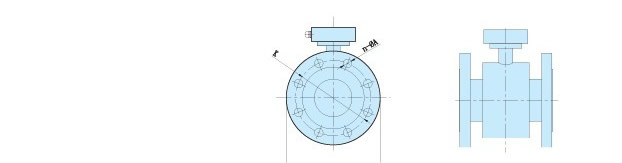

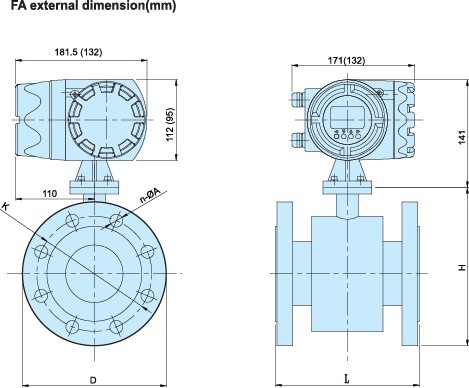

通径 mm		工作压力MPa	L	D	K	n-øA	一体式重量(KG)	分体式重量(KG)
10	3/8	4.0	150	90	60	4-ø14	8	6
15	1/2		150	95	65	4-ø14	8	6
20	3/4		150	105	75	4-ø14	8	6
25	1		150	115	85	4-ø14	9	7
32	1¼		150	140	100	4-ø18	11	9
40	1½		150	150	110	4-ø18	12	10
50	2		200	165	125	4-ø18	14	12
65	2½		200	185	145	8-ø18	19	17
80	3		200	200	160	8-ø18	19	17
100	4	1.6	250	220	180	8-ø18	24	22
125	5		250	250	210	8-ø18	26	24
150	6		300	285	240	8-ø22	37	35
200	8	1.0	350	340	295	8-ø22	47	45
250	10		400	395	350	12-ø22	86	84
300	12		500	445	400	12-ø22	104	102
350	14		500	505	460	16-ø22	125	123
400	16		600	565	515	16-ø26	149	147
450	18		600	615	565	20-ø26	214	209
500	20		600	670	620	20-ø26	231	212
600	24		600	780	725	20-ø30	254	252
700	28		700	895	840	24-ø30	354	352
800	32		800	1015	950	24-ø33	464	462
900	36		900	1115	1050	28-ø33	560	552
1000	40	6.0	1000	1175	1120	28-ø30	692	682
1200	48		1200	1405	1340	32-ø33	787	782
1400	56		1400	1630	1560	36-ø36	1260	1252
1600	64		1600	1830	1760	40xø36	1500	1552
1800	72		1800	2045	1970	44xø39	1700	2082
2000	80		2000	2265	2180	48xø42	2000	2100

通径	最小流 m3/h	常用满量程流量选择（m3/h）
10	0.08	0.16, 0.2, 0.25, 0.3, 0.4,0.5,0.6,0.8,1.0,1.2,1.6,2.0,2.5
15	0.2	0.4,0.5,0.6,0.8,1.0,1.2,1.6,2.0,2.5,3.0,4.0,5.0,6.0
20	0.3	0.6,0.8,1.0,1.2,1.6,2.0,2.5,3.0,4.0,5.0,6.0,8.0,10.0
25	0.5	1.0,1.2,1.6,2.0,2.5,3.0,4.0,5.0,6.0,8.0,10.0,12.0,14.0,16.0
32	0.8	1.6,2.0,2.5,3.0,4.0,5.0,6.0,8.0,10.0,12.16,20,25
40	1.2	2.5, 3.0, 4.0, 5.0, 6.0, 8.0,10.0,12,16,20,25,30,40
50	2	4.0, 5.0, 6.0, 8.0, 10, 12,16,20,25,30,40,50,60,70
65	3.5	6.0,8.0,10,12,16,20,25,30,40,50,60,80,100,120
80	5	10,12,16,20,25,30,40,50,60,80,100,120,160
100	8	16,20,25,30,40,50,60,80,100,120,160,200,250
125	12	25,30,40,50,60,80,100,120,160,200,250,300,400
150	18	40,50,60,80,100,120,160,200,250,300,400,500,600
200	30	60,80,100,120,160,200,250,300,400,500,600,800,1000
250	50	100, 120, 160, 200, 250, 300, 400, 500, 600, 800, 1000, 1200, 1600
300	70	160, 200, 250, 300, 400, 500, 600, 800, 1000, 1200, 1600, 2000, 2500
350	100	200, 250, 300, 400, 500, 600, 800, 1000, 1200, 1600, 2000, 2500, 3000
400	120	250, 300, 400, 500, 600, 800, 1000, 1200, 1600, 2000, 2500, 3000, 4000
450	160	300, 400, 500, 600, 800, 1000, 1200, 1600, 2000, 2500, 3000, 4000, 5000
500	200	400, 500, 600, 800, 1000, 1200, 1600, 2000, 2500, 3000, 4000, 5000, 6000
600	300	600, 800, 1000, 1200, 1600, 2000, 2500, 3000, 4000, 5000, 6000, 10000
700	400	800, 1000, 1200, 1600, 2000, 2500, 3000, 4000, 5000, 6000, 10000, 12000
800	500	1000, 1200, 1600, 2000, 2500, 3000, 4000, 5000, 6000, 10000, 12000, 16000
900	650	1200, 1600, 2000, 2500, 3000, 4000, 5000, 6000, 8000, 10000, 12000, 16000, 18000
1000	800	1600, 2000, 2500, 3000, 4000, 5000, 6000, 10000, 12000, 16000, 20000
1200	1200	2500, 3000, 4000, 5000, 6000, 8000, 10000, 12000, 16000, 20000, 25000, 30000
1400	1500	3000, 4000, 5000, 6000, 8000, 10000, 12000, 16000, 20000, 25000, 30000, 40000
1600	2000	4000, 5000, 6000, 8000, 10000,1 2000, 16000, 20000,2 5000, 30000, 40000,5 0000, 60000
1800	2500	5000, 6000, 8000, 10000, 12000, 16000, 20000, 25000, 30000, 40000, 50000, 60000
2000	3000	6000, 8000, 10000, 12000, 16000, 20000, 25000, 30000, 40000, 50000, 60000, 80000, 100000
