PL-C04-G01,PL-C06-G01,调速阀
Model | ∅D | ∅P | T | L | E | A | B | H(Hex) | X | Y | ORIFICE | WEIGHT(g) | EA(BOX) |
PL-C 04-G01 | 4 | 8.7 | G 1/8 | 14.4 | 14.6 | 4.5 | 11.8 | 14 | 10.4 | 8.2 | 3 | 7 | 100 |
PL-C 06-G01 | 6 | 10.8 | G 1/8 | 15.4 | 15.5 | 4.5 | 12.9 | 14 | 12.4 | 10.2 | 3 | 6 | 100 |

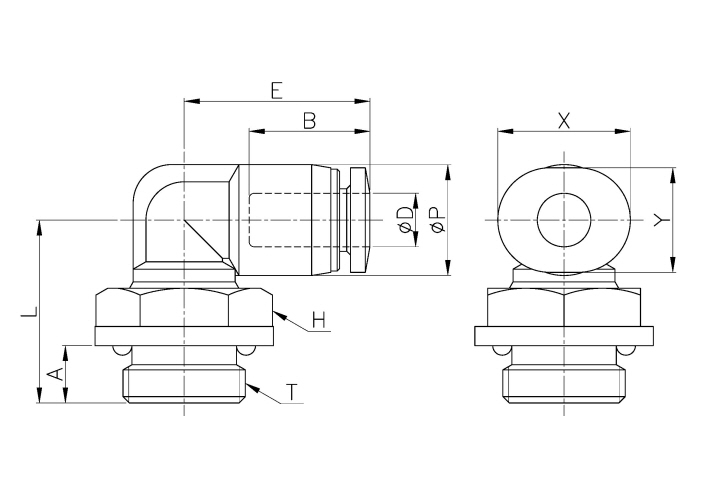

外形尺寸
