PUT-C03,PUT-C04,PUT-C06,调速阀

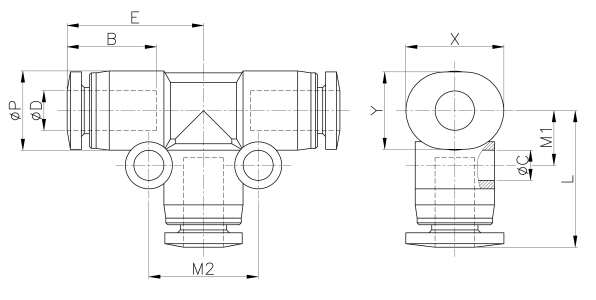

Model | ∅D | ∅P | L | E | ∅C | B | M1 | M2 | X | Y | ORIFICE | WEIGHT(g) | BOX(EA) |
PUT-C03 | 3 | 7.5 | 13.5 | 13.5 | 3.2 | 11.3 | 5.4 | 10.7 | 9.2 | 7.2 | 2.4 | 3 | 100 |
PUT-C04 | 4 | 8.4 | 14.5 | 14.5 | 3.2 | 11.8 | 5.8 | 11.6 | 10.4 | 8.2 | 3 | 3 | 100 |
PUT-C06 | 6 | 10.6 | 16.5 | 16.5 | 3.2 | 12.8 | 6.9 | 13.8 | 12.4 | 10.2 | 4 | 6 | 100 |
外形尺寸
