PT-C03-M3,PT-C03-M5,PT-C03-M6,PT-C04-M3,PT-C04-M5,PT-C06-M5,PT-C06-M6,调速阀
PT-C06-01,PT-C04-M6,PT-C04-01,
| Model | ￠D | ￠P | T | L | E | A | B | H(Hex) | X | Y | ORIFICE | WEIGHT(g) | BOX(EA) |
| PT-C03-M3 | 3 | 7.6 | M3*0.5p | 14.7 | 14.5 | 3 | 11.3 | 8 | 9.2 | 7.2 | 1.5 | 4 | 100 |
| PT-C03-M5 | 3 | 7.6 | M5*0.8p | 15.3 | 14.5 | 3.6 | 11.3 | 8 | 9.2 | 7.2 | 2.5 | 5 | 100 |
| PT-C03-M6 | 3 | 7.6 | M6*1.0p | 15.8 | 14.5 | 4.1 | 11.3 | 8 | 9.2 | 7.2 | 2.5 | 5 | 100 |
| PT-C04-M3 | 4 | 8.7 | M3*0.5p | 15.3 | 15.1 | 3 | 11.8 | 8 | 10.4 | 8.2 | 1.5 | 5 | 100 |
| PT-C04-M5 | 4 | 8.7 | M5*0.8p | 15.9 | 15.1 | 3.6 | 11.8 | 8 | 10.4 | 8.2 | 2.5 | 5 | 100 |
| PT-C04-M6 | 4 | 8.7 | M6*1.0p | 16.4 | 15.1 | 4.1 | 11.8 | 8 | 10.4 | 8.2 | 3 | 6 | 100 |
| PT-C04-01 | 4 | 8.7 | R 1/8 | 16.4 | 15.1 | 8 | 11.8 | 10 | 10.4 | 8.2 | 3 | 7 | 100 |
| PT-C06-M5 | 6 | 10.8 | M5*0.8p | 16.9 | 16 | 3.6 | 12.8 | 8 | 12.4 | 10.2 | 2.5 | 7 | 100 |
| PT-C06-M6 | 6 | 10.8 | M6*1.0p | 17.4 | 16 | 4.1 | 12.8 | 8 | 12.4 | 10.2 | 3 | 7 | 100 |
| PT-C06-01 | 6 | 10.8 | R 1/8 | 17.4 | 16 | 8 | 12.8 | 10 | 12.4 | 10.2 | 3 | 9 | 100 |

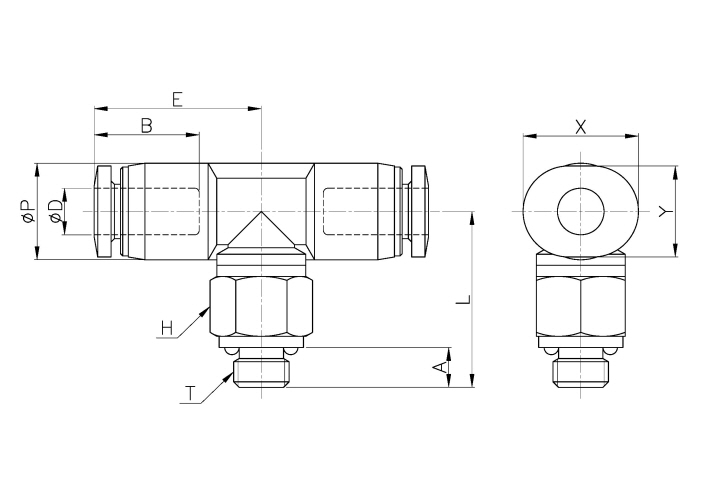

外形尺寸
