PLLP04-01,PLLP04-02,PLLP04-03,PLLP06-01,PLLP06-02,PLLP06-03,PLLP06-04,PLLP08-02,
PLLP08-03,PLLP08-04,PLLP10-02,PLLP10-03,PLLP10-04,PLLP12-02,PLLP12-03,PLLP12-04,
| Model | ￠D | ￠P | T | L | E | A | B | H(Hex) | ORIFICE | WEIGHT(g) | BOX(EA) |
| PLLP 04-M5 | 4 | 10.5 | M5*0.8p | 32.5 | 18.5 | 4 | 14.8 | 10 | 2.5 | 5.6 | 50 |
| PLLP 04-M6 | 4 | 10.5 | M6*1.0p | 32.6 | 18.5 | 4.1 | 14.8 | 10 | 3 | 8 | 50 |
| PLLP 04-01 | 4 | 10.5 | R 1/8 | 36.5 | 18.5 | 8 | 14.8 | 10 | 3 | 9.9 | 50 |
| PLLP 04-02 | 4 | 10.5 | R 1/4 | 38.5 | 18.5 | 10 | 14.8 | 14 | 3 | 14.9 | 50 |
| PLLP 04-03 | 4 | 10.5 | R 3/8 | 39.5 | 18.5 | 11 | 14.8 | 17 | 3 | 23.7 | 50 |
| PLLP 06-M5 | 6 | 12.5 | M5*0.8p | 36.5 | 20.3 | 4 | 16.4 | 12 | 2.5 | 7.1 | 50 |
| PLLP 06-M6 | 6 | 12.5 | M6*1.0p | 36.6 | 20.3 | 4.1 | 16.4 | 12 | 3 | 11.8 | 50 |
| PLLP 06-01 | 6 | 12.5 | R 1/8 | 40.5 | 20.3 | 8 | 16.4 | 12 | 4 | 13.8 | 50 |
| PLLP 06-02 | 6 | 12.5 | R 1/4 | 43.5 | 20.3 | 10 | 16.4 | 14 | 4 | 18.9 | 50 |
| PLLP 06-03 | 6 | 12.5 | R 3/8 | 44.5 | 20.3 | 11 | 16.4 | 17 | 4 | 26.1 | 50 |
| PLLP 06-04 | 6 | 12.5 | R 1/2 | 47.5 | 20.3 | 14 | 16.4 | 21 | 4 | 40.3 | 25 |
| PLLP 08-01 | 8 | 14.8 | R 1/8 | 44 | 22.9 | 8 | 18.3 | 14 | 6 | 18 | 50 |
| PLLP 08-02 | 8 | 14.8 | R 1/4 | 47 | 22.9 | 10 | 18.3 | 14 | 6 | 20.9 | 50 |
| PLLP 08-03 | 8 | 14.8 | R 3/8 | 48 | 22.9 | 11 | 18.3 | 17 | 6 | 27.7 | 25 |
| PLLP 08-04 | 8 | 14.8 | R 1/2 | 51 | 22.9 | 14 | 18.3 | 21 | 6 | 42.7 | 25 |
| PLLP 10-01 | 10 | 17.5 | R 1/8 | 47.5 | 24.6 | 8 | 20.2 | 17 | 6 | 27.7 | 25 |
| PLLP 10-02 | 10 | 17.5 | R 1/4 | 50.5 | 24.6 | 10 | 20.2 | 17 | 8 | 29.6 | 25 |
| PLLP 10-03 | 10 | 17.5 | R 3/8 | 51.5 | 24.6 | 11 | 20.2 | 17 | 8 | 31.7 | 25 |
| PLLP 10-04 | 10 | 17.5 | R 1/2 | 54.5 | 24.6 | 14 | 20.2 | 22 | 8 | 50.5 | 25 |
| PLLP 12-01 | 12 | 20.5 | R 1/8 | 54.4 | 28.7 | 8 | 22.9 | 19 | 6 | 42.1 | 25 |
| PLLP 12-02 | 12 | 20.5 | R 1/4 | 56.4 | 28.7 | 10 | 22.9 | 19 | 9 | 38.3 | 25 |
| PLLP 12-03 | 12 | 20.5 | R 3/8 | 57.4 | 28.7 | 11 | 22.9 | 19 | 10 | 42 | 25 |
| PLLP 12-04 | 12 | 20.5 | R 1/2 | 60.4 | 28.7 | 14 | 22.9 | 21 | 10 | 51.4 | 25 |

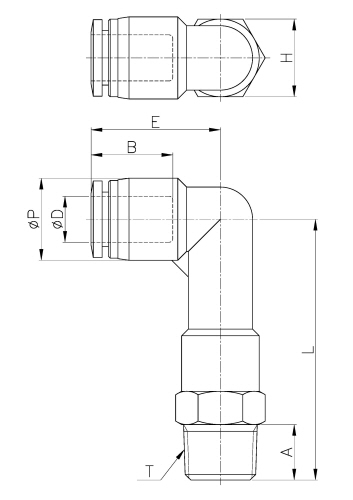

外形尺寸
