PHL04-02(3),PHL04-03(3),PHL04-04(3),PHL06-02(3),PHL06-03(3),PHL06-04(3),PHL08-02(3),
PHL08-03(3),PHL08-04(3),PHL10-02(3),PHL10-03(3),PHL10-04(3),PHL12-03(3),PHL12-04(3),
| Model | ￠D | ￠P | T | L1 | L2 | E | A | B | J | H(Hex) | ORIFICE | WEIGHT(g) | BOX(EA) |
| PHL04-01(3) | 4 | 10.5 | R 1/8 | 22.5 | 69.7 | 23.3 | 8 | 14.8 | 17.9 | 14 | 3.2 | 48 | 25 |
| PHL04-02(3) | 4 | 10.5 | R 1/4 | 27.5 | 84.7 | 25.1 | 10 | 14.8 | 21.9 | 17 | 3.2 | 76 | 25 |
| PHL04-03(3) | 4 | 10.5 | R 3/8 | 29 | 86.7 | 27 | 11 | 14.8 | 21.9 | 21 | 3.2 | 117 | 25 |
| PHL04-04(3) | 4 | 10.5 | R 1/2 | 34.1 | 97.3 | 29 | 14 | 14.8 | 23.9 | 24 | 3.2 | 174 | 12 |
| PHL06-01(3) | 6 | 12.5 | R 1/8 | 22.5 | 69.7 | 24.1 | 8 | 16.4 | 17.9 | 14 | 4 | 50 | 25 |
| PHL06-02(3) | 6 | 12.5 | R 1/4 | 27.5 | 84.7 | 26 | 10 | 16.4 | 21.9 | 17 | 5 | 79 | 25 |
| PHL06-03(3) | 6 | 12.5 | R 3/8 | 29 | 86.7 | 27.9 | 11 | 16.4 | 21.9 | 21 | 5 | 115 | 20 |
| PHL06-04(3) | 6 | 12.5 | R 1/2 | 34.1 | 97.3 | 29.3 | 14 | 16.4 | 23.9 | 24 | 5 | 176 | 12 |
| PHL08-01(3) | 8 | 14.5 | R 1/8 | 22.5 | 69.7 | 25.6 | 8 | 18.3 | 17.9 | 14 | 5 | 53 | 25 |
| PHL08-02(3) | 8 | 14.5 | R 1/4 | 27.5 | 84.7 | 27.4 | 10 | 18.3 | 21.9 | 17 | 7 | 86 | 15 |
| PHL08-03(3) | 8 | 14.5 | R 3/8 | 29 | 86.7 | 29.3 | 11 | 18.3 | 21.9 | 21 | 7 | 121 | 15 |
| PHL08-04(3) | 8 | 14.5 | R 1/2 | 34.1 | 97.3 | 30.7 | 14 | 18.3 | 23.9 | 24 | 7 | 177 | 12 |
| PHL10-01(3) | 10 | 17.5 | R 1/8 | 22.5 | 69.7 | 28.1 | 8 | 20.2 | 17.9 | 14 | 5 | 59 | 12 |
| PHL10-02(3) | 10 | 17.5 | R 1/4 | 27.5 | 84.7 | 29.8 | 10 | 20.2 | 21.9 | 17 | 8 | 87 | 12 |
| PHL10-03(3) | 10 | 17.5 | R 3/8 | 29 | 86.7 | 31.9 | 11 | 20.2 | 21.9 | 21 | 8 | 128 | 12 |
| PHL10-04(3) | 10 | 17.5 | R 1/2 | 34.1 | 97.3 | 33.7 | 14 | 20.2 | 23.9 | 24 | 8 | 184 | 12 |
| PHL12-02(3) | 12 | 20.5 | R 1/4 | 27.5 | 84.7 | 33 | 10 | 22.9 | 21.9 | 17 | 8 | 98 | 8 |
| PHL12-03(3) | 12 | 20.5 | R 3/8 | 29 | 86.7 | 35.1 | 11 | 22.9 | 21.9 | 21 | 8 | 137 | 8 |
| PHL12-04(3) | 12 | 20.5 | R 1/2 | 34.1 | 97.3 | 37.4 | 14 | 22.9 | 23.9 | 24 | 8 | 194 | 8 |

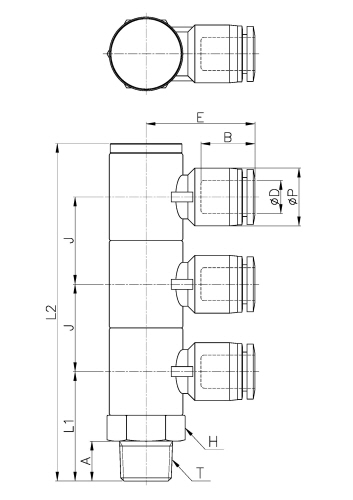

外形尺寸
