PAT04-01(3),PAT06-01(3),PAT08-01(3),PAT10-01(3),PAT12-02(3),快插式管接头
PAT04-02(3),PAT04-03(3),PAT04-04(3),PAT06-02(3),PAT06-03(3),PAT06-04(3),PAT08-02(3),
PAT08-03(3),PAT08-04(3),PAT10-02(3),PAT10-03(3),PAT10-04(3),PAT12-03(3),PAT12-04(3),

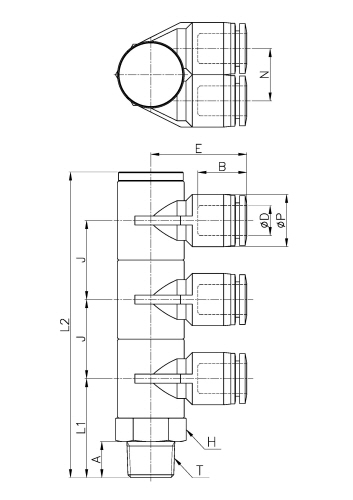

| Model | ￠D | ￠P | T | L1 | L2 | N | E | A | B | J | H(Hex) | ORIFICE | WEIGHT(g) | BOX(EA) |
| PAT04-01(3) | 4 | 10.5 | R 1/8 | 22.5 | 69.7 | 10.5 | 21.4 | 8 | 14.8 | 17.9 | 14 | 3.2 | 53 | 20 |
| PAT04-02(3) | 4 | 10.5 | R 1/4 | 27.5 | 84.7 | 10.5 | 22.9 | 10 | 14.8 | 21.9 | 17 | 3.2 | 80 | 20 |
| PAT04-03(3) | 4 | 10.5 | R 3/8 | 29 | 86.7 | 10.5 | 26.1 | 11 | 14.8 | 21.9 | 21 | 3.2 | 122 | 12 |
| PAT04-04(3) | 4 | 10.5 | R 1/2 | 34.1 | 97.3 | 10.5 | 27.7 | 14 | 14.8 | 23.9 | 24 | 3.2 | 187 | 8 |
| PAT06-01(3) | 6 | 12.5 | R 1/8 | 22.5 | 69.7 | 12.5 | 22.9 | 8 | 16.4 | 17.9 | 14 | 4 | 64 | 12 |
| PAT06-02(3) | 6 | 12.5 | R 1/4 | 27.5 | 84.7 | 12.5 | 24.8 | 10 | 16.4 | 21.9 | 17 | 5 | 86 | 9 |
| PAT06-03(3) | 6 | 12.5 | R 3/8 | 29 | 86.7 | 12.5 | 26.6 | 11 | 16.4 | 21.9 | 21 | 5 | 126 | 9 |
| PAT06-04(3) | 6 | 12.5 | R 1/2 | 34.1 | 97.3 | 12.5 | 28.6 | 14 | 16.4 | 23.9 | 24 | 5 | 181 | 6 |
| PAT08-01(3) | 8 | 14.5 | R 1/8 | 22.5 | 69.7 | 14.5 | 24.8 | 8 | 18.3 | 17.9 | 14 | 5 | 64 | 9 |
| PAT08-02(3) | 8 | 14.5 | R 1/4 | 27.5 | 84.7 | 14.5 | 26.6 | 10 | 18.3 | 21.9 | 17 | 6 | 92 | 9 |
| PAT08-03(3) | 8 | 14.5 | R 3/8 | 29 | 86.7 | 14.5 | 28.2 | 11 | 18.3 | 21.9 | 21 | 7 | 135 | 6 |
| PAT08-04(3) | 8 | 14.5 | R 1/2 | 34.1 | 97.3 | 14.5 | 30.3 | 14 | 18.3 | 23.9 | 24 | 6 | 200 | 6 |
| PAT10-01(3) | 10 | 17.5 | R 1/8 | 22.5 | 69.7 | 17.5 | 26.7 | 8 | 20.2 | 17.9 | 14 | 5 | 80 | 8 |
| PAT10-02(3) | 10 | 17.5 | R 1/4 | 27.5 | 84.7 | 17.5 | 28.2 | 10 | 20.2 | 21.9 | 17 | 8 | 106 | 8 |
| PAT10-03(3) | 10 | 17.5 | R 3/8 | 29 | 86.7 | 17.5 | 30.2 | 11 | 20.2 | 21.9 | 21 | 6 | 144 | 6 |
| PAT10-04(3) | 10 | 17.5 | R 1/2 | 34.1 | 97.3 | 17.5 | 32.6 | 14 | 20.2 | 23.9 | 24 | 7 | 213 | 6 |
| PAT12-02(3) | 12 | 20.5 | R 1/4 | 27.5 | 84.7 | 20.5 | 31.1 | 10 | 22.9 | 21.9 | 17 | 8 | 123 | 6 |
| PAT12-03(3) | 12 | 20.5 | R 3/8 | 29 | 86.7 | 20.5 | 32.9 | 11 | 22.9 | 21.9 | 21 | 8 | 165 | 4 |
| PAT12-04(3) | 12 | 20.5 | R 1/2 | 34.1 | 97.3 | 20.5 | 35.2 | 14 | 22.9 | 23.9 | 24 | 8 | 220 | 4 |
